2011 Lightning and Pup Operator Platform

Operator Platform

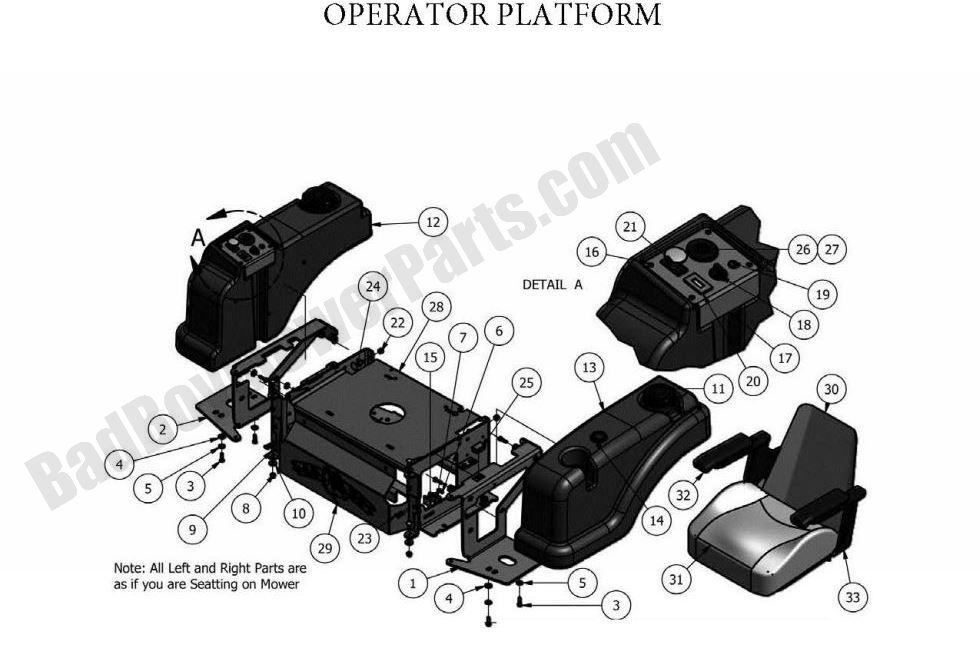

The Bad Boy Mower parts diagram for the 2011 Lightning and Pup Operator Platform is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Lightning and Pup models. Find all of your Bad Boy mowers 2011 Lightning and Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Lightning and Pup Operator Platform. If you are not able to find the Bad Boy parts for your 2011 Lightning and Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Lightning and Pup Operator Platform
  Position Number SKU Product Title Price
1 031-2006-00 031-2006-00 - Tank Support R (See Models Used On For Details)
$47.07
2 031-2007-00 031-2007-00 - Tank Support L (See Models Used On For Details)
$47.07
3 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
4 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
5 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
6 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
7 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
8 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
9 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
12 067-5000-50 067-5000-50 - Right Fuel Tank (See Models Used On For Details)
$352.99
13 067-5001-50 067-5001-50 - Left Fuel Tank (See Models Used On For Details)
$352.99
14 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
15 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
16 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
17 079-3401-00 079-3401-00 - 2007-2011 Pup/Lightning, 2011 Outlaw Extreme Instrument Panel
$23.78
18 078-8077-00 078-8077-00 - Joystick - Deck Lift
$34.29
19 089-1000-00 089-1000-00 - Oil Light
$12.63
20 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
21 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
22 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
23 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
24 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
25 018-1040-00 018-1040-00 - Light Plug
$2.99
26 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
27 042-9000-00 042-9000-00 - Ignition Key
$4.06
28 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
29 061-8012-00 061-8012-00 - Hydraulic Cooler-Diesel Models
$76.53
32 071-2017-00 071-2017-00 - Armrest Pad for 071-2010-00
$49.68
33 071-2010-00 071-2010-00 - Wise Seat - ZT - WM1976 OBSOLETE use 071-2040-00 (obsolete)
use part #071-2040-17
$599.99
