2010 Compact Diesel Double Bearing Spindle Assembly

Double Bearing Spindle Assembly

BadBoyMowerParts.com has the parts diagrams for the 2010 Compact Diesel Double Bearing Spindle Assembly models. Find all of your Bad Boy mowers 2010 Compact Diesel parts here. We are your Bad Boy mowers parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Compact Diesel Spindle Assembly. If you are not able to find the Bad Boy parts for your 2010 Compact Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

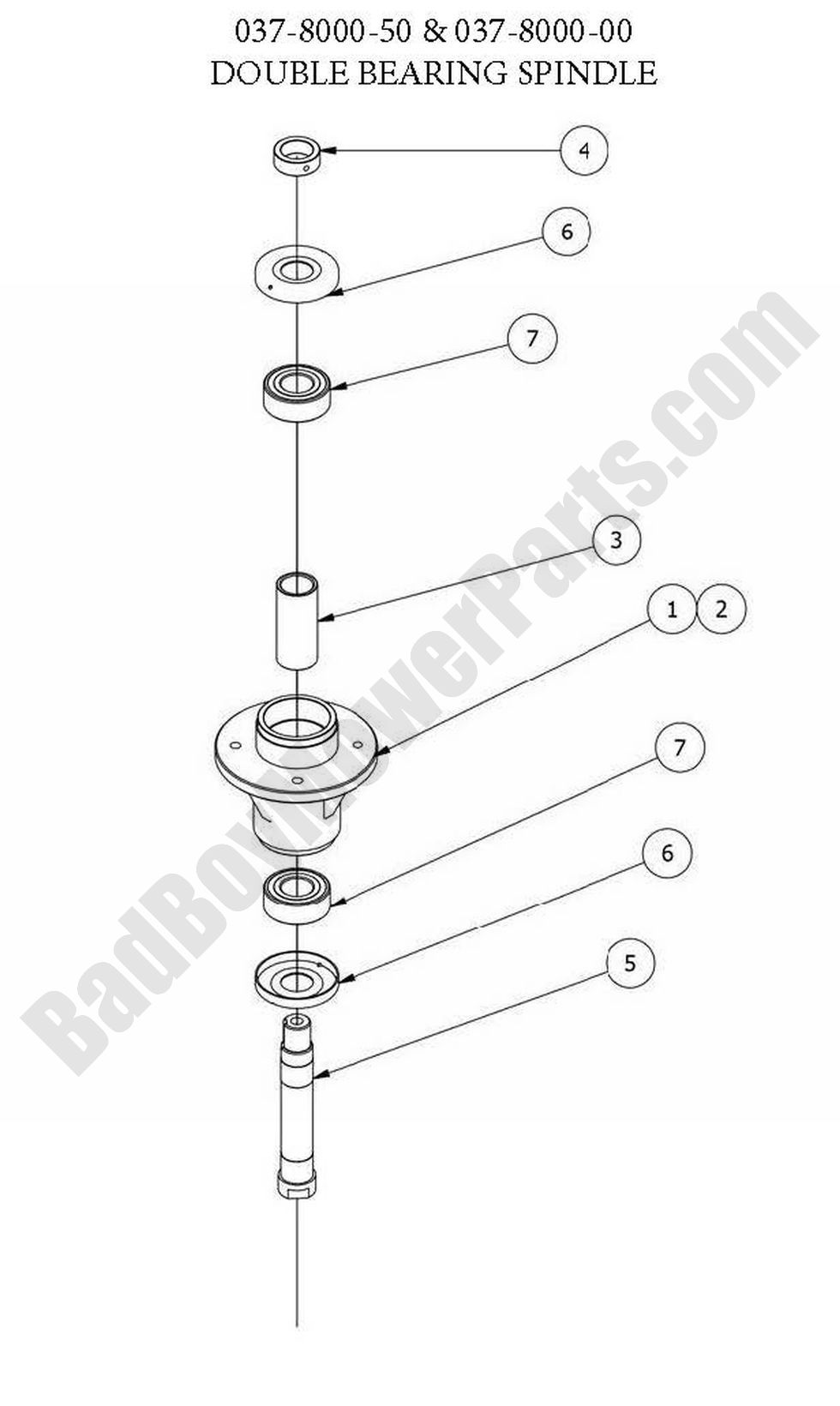

2010 Compact Diesel Double Bearing Spindle Assembly
  Position Number SKU Product Title Price
1 037-8005-50 037-8005-50 - Aluminum Spindle Housing- Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$312.34
2 037-8005-00 037-8005-00 - Spindle Housing - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$312.34

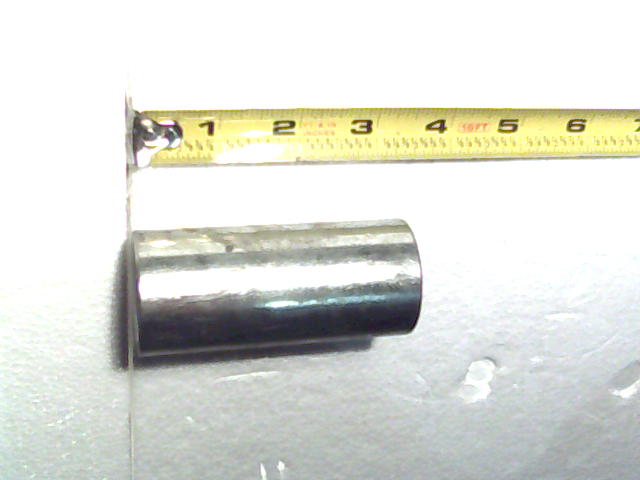

3 037-8003-00 037-8003-00 - Tube Spacer-Double Bearing Spi ndle-2009 Lightning, Pup, AOS
$11.34
4 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
5 037-6026-00 037-6026-00 - Short Spindle Shaft w/Locking Collar - No Grooved Shaft
$83.77
6 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
7 037-8001-00 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details)
$46.78
