2010 Compact Diesel Drive Arms

Drive Arms

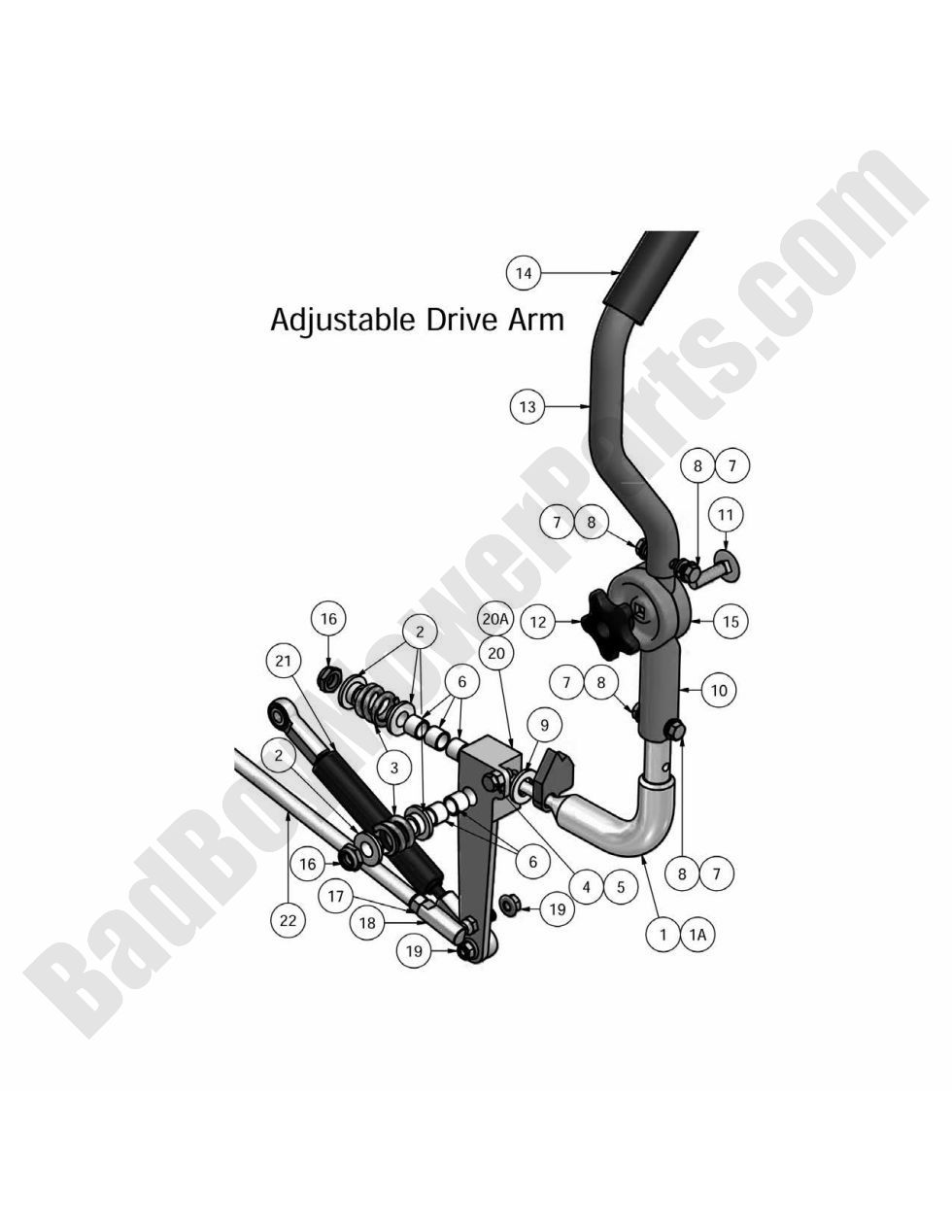

The Bad Boy Mower parts diagram for the 2010 Compact Diesel Drive Arms is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Compact Diesel models. Find all of your Bad Boy mowers 2010 Compact Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Compact Diesel Drive Arms. If you are not able to find the Bad Boy parts for your 2010 Compact Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Compact Diesel Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1A 031-9020-00 031-9020-00 - Left Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
1 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-9025-70
$85.17
2 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
3 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
4 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
6 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
11 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
12 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$4.39
13 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
14 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
15 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
16 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
17 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
18 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
19 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
20A 027-8819-00 027-8819-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing (left)
$46.84
20 027-8820-00 027-8820-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing Right
$46.84
21 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socke Stabilus 000214
$56.72
22 035-6060-00 035-6060-00 - Steering Push Rod (See Models Used On For Details)
$35.67
