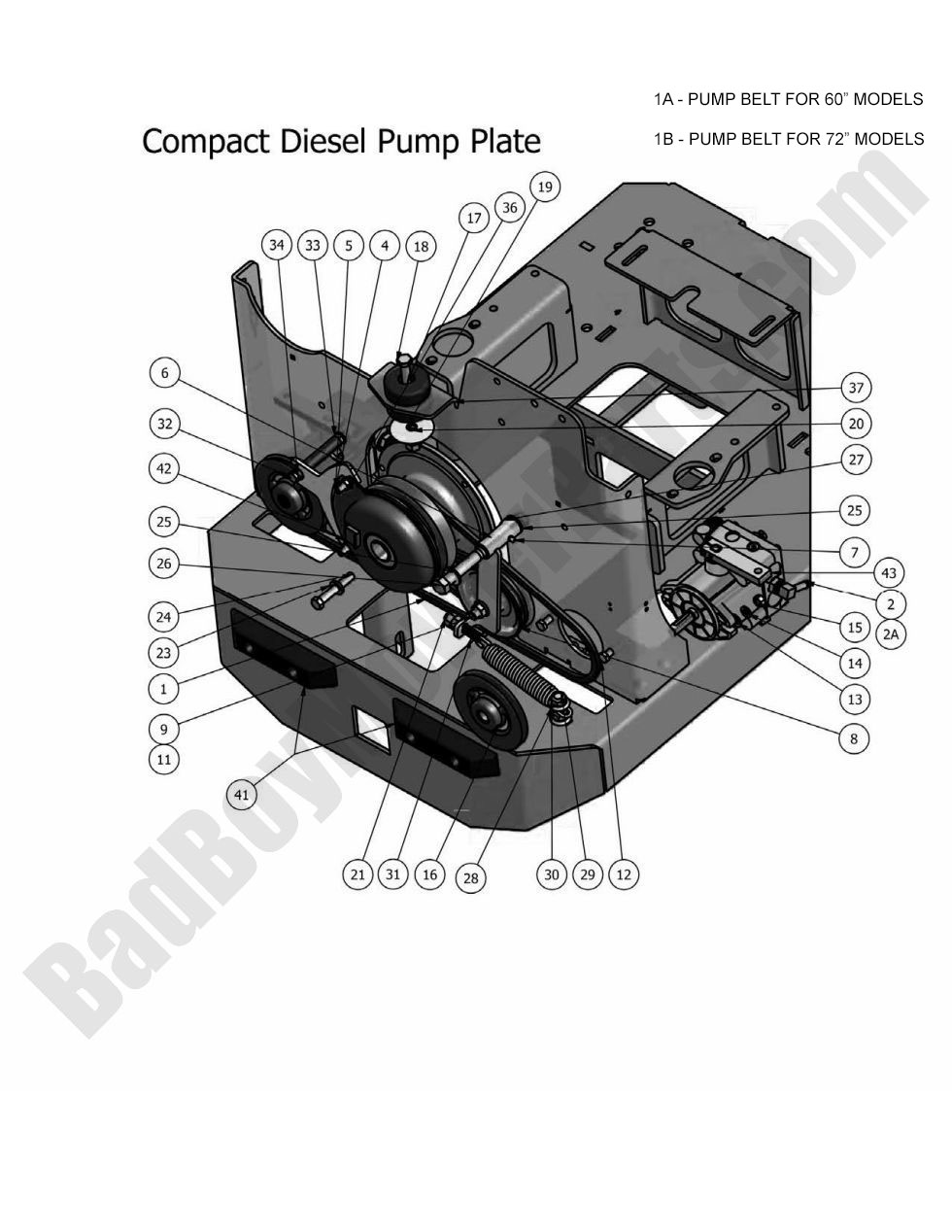

2010 Compact Diesel Pump Plate

Pump Plate

The Bad Boy Mower parts diagram for the 2010 Compact Diesel Pump Plate is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Compact Diesel models. Find all of your Bad Boy mowers 2010 Compact Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Compact Diesel Pump Plate. If you are not able to find the Bad Boy parts for your 2010 Compact Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Compact Diesel Pump Plate
  Position Number SKU Product Title Price
1A 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
1B 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
2A 050-5501-00 050-5501-00 - PR Pump w/Fan and Cover Right Compact Diesel PR2HCC-GY1G
$641.99
2 050-5500-00 050-5500-00 - PR Pumps w/Fan 16cc Left Compact Diesel PR-2KCC-GY1G
$641.99
4 057-5910-10 057-5910-10 - 2010-2018 Diesel PTO Engager Holder
$22.71
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
7 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 018-5049-00 018-5049-00 - 1/2-13 X 2 GR 5 Hex Bolts Zinc
$2.99
11 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
12 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
13 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
14 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
15 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
17 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
18 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
19 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
23 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
24 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
25 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
26 018-5312-00 018-5312-00 - 5/8 By 4 1/2 Bolt
$2.99
27 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
28 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
29 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
30 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
31 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensione
$12.94
32 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 GR 5 Hex Bolt
$2.99
33 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
34 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
36 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
37 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$117.99
41 029-7038-00 029-7038-00 - 8 Bumper
$28.32
42 025-7020-00 025-7020-00 - 5/8 Set Collar W/One Set Screw
$4.37
43 031-5923-00 031-5923-00 - Pump Arm
$30.07
44 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch (See Models Used On For Details)
$385.19
