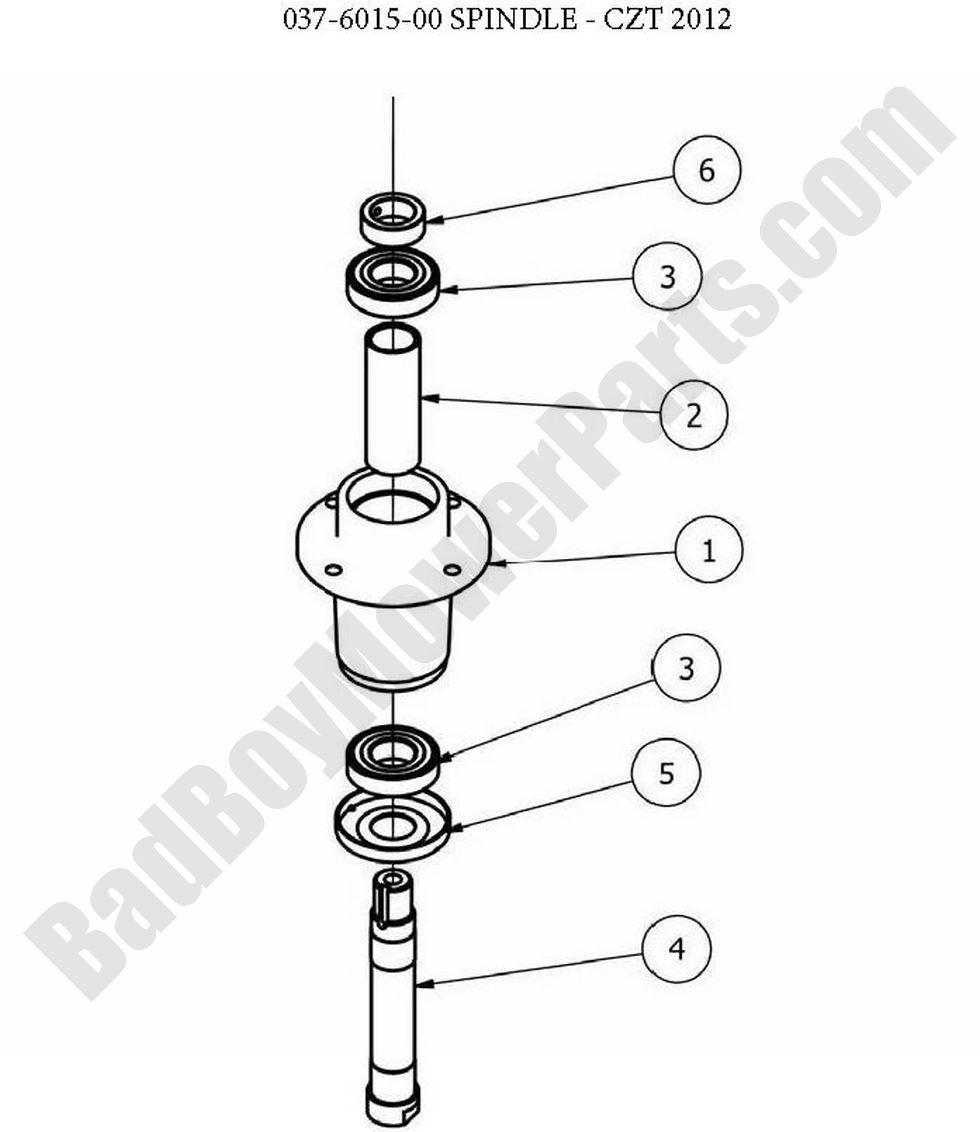

2012 CZT Spindle Assembly

Spindle Assembly

The Bad Boy Mower parts diagram for the 2012 CZT Deck Spindle Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 CZT models. Find all of your Bad Boy mowers 2012 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 CZT Deck Spindle. If you are not able to find the Bad Boy parts for your 2012 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 CZT Spindle Assembly
  Position Number SKU Product Title Price
1.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$213.99
1 037-6017-00 037-6017-00 - Spindle Housing - Obsolete - Use 037-6015-50 (obsolete)
use part #037-6015-50
$213.99
2 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
3 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
4 037-6026-00 037-6026-00 - Short Spindle Shaft w/Locking Collar - No Grooved Shaft
$83.77
5 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
