2012 CZT Engine - Kawasaki

Engine - Kawasaki

The Bad Boy Mower parts diagram for the 2012 CZT Engine (Kawasaki) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 CZT models. Find all of your Bad Boy mowers 2012 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 CZT Engine (Kawasaki). If you are not able to find the Bad Boy parts for your 2012 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

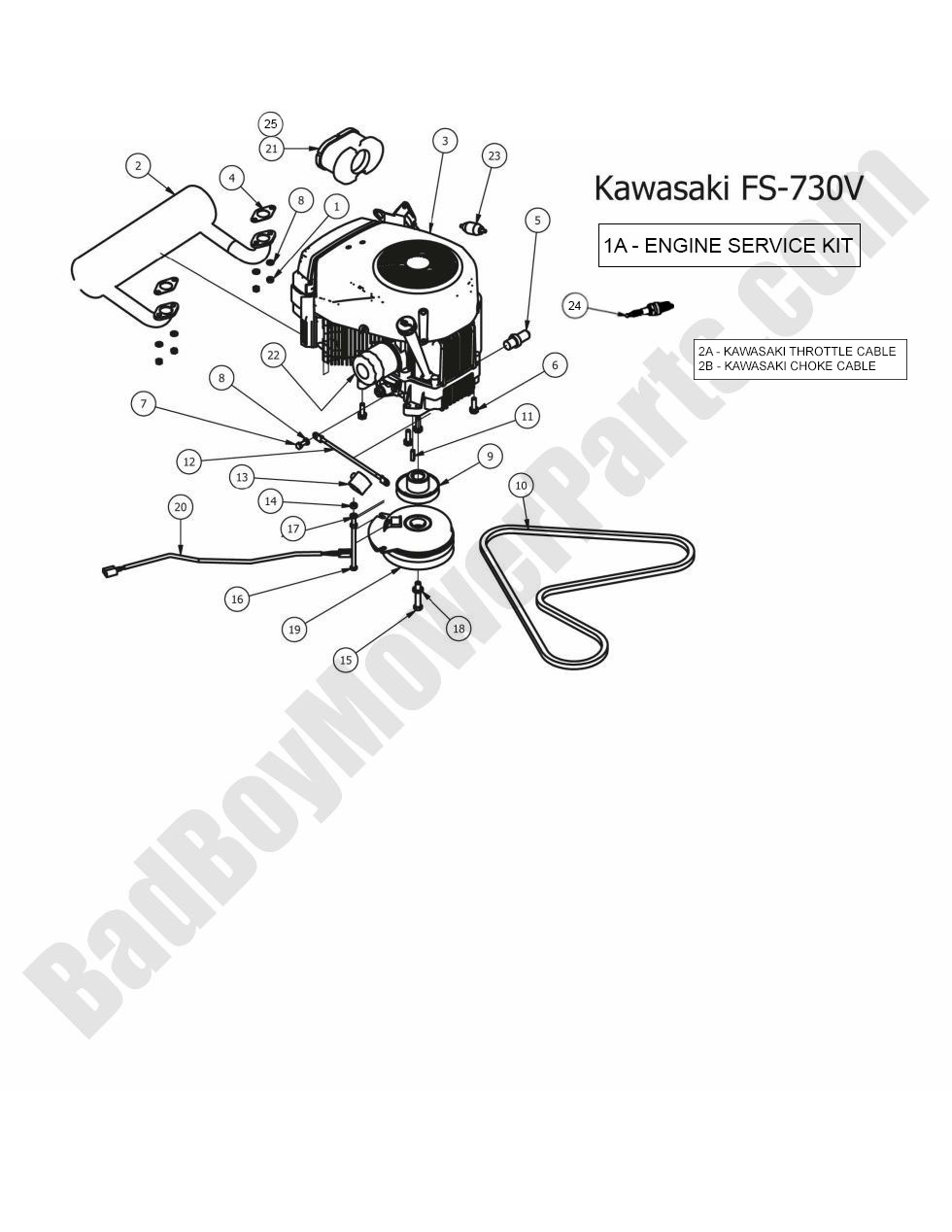

2012 CZT Engine - Kawasaki
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2 015-0012-00 015-0012-00 - Exhaust-Kawasaki FS/FR-ZT/CZT
$192.59
3 015-0045-00 015-0045-00 - 26hp FS730V Engine FS730V-S14-R CZT Mowers
$2460.99
4 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
5 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$28.11
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
10 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
11 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
12 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
13 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
15 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
16 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
18 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
19 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
22 063-2096-00 063-2096-00 - Oil Filter Kawasaki FR/FS/FX691/FX730/FX751
$18.18
23 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
24 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
25 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
