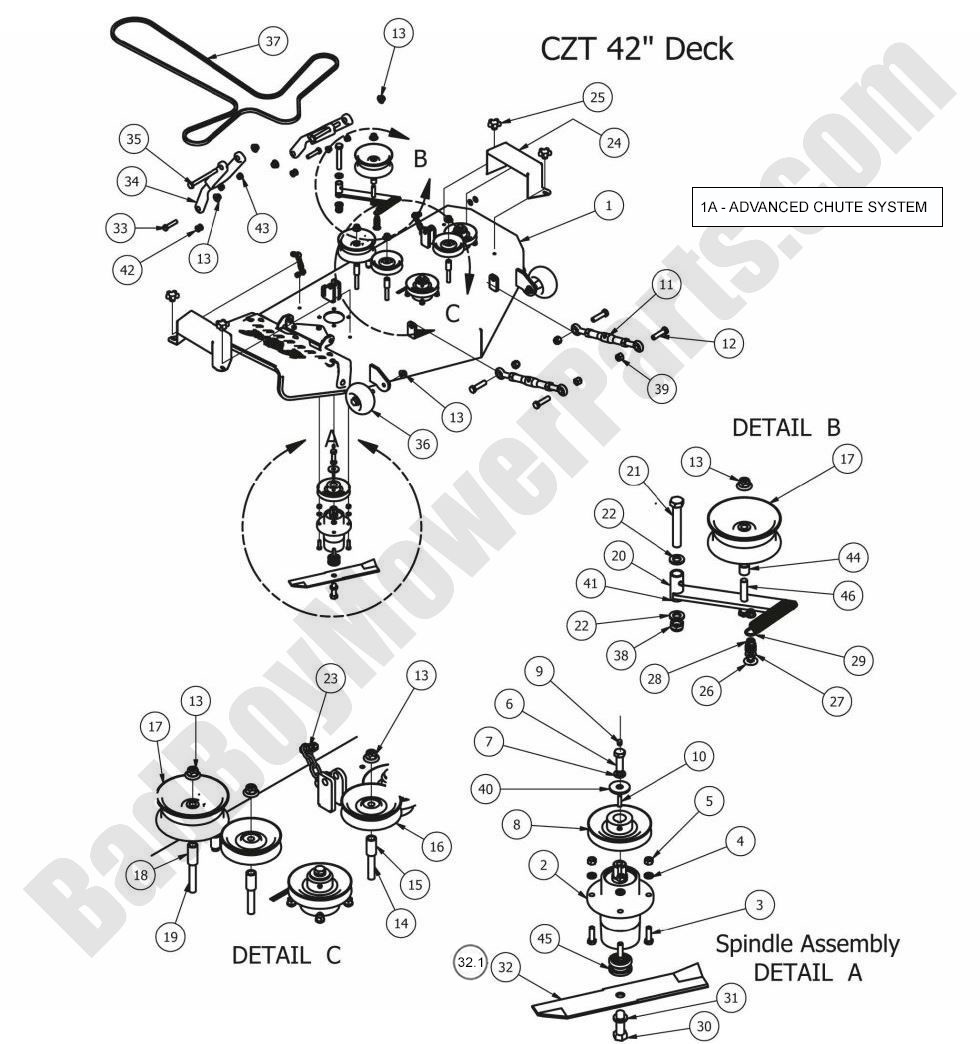

2012 CZT 42" Deck Assembly

42" Deck Assembly

The Bad Boy Mower parts diagram for the 2012 CZT 42" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 CZT models. Find all of your Bad Boy mowers 2012 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 CZT 42" Deck. If you are not able to find the Bad Boy parts for your 2012 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 CZT 42" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$266.99
1 060-4200-00 060-4200-00 - 2010-2012 42" CZT Deck - Shell Only
$1390.99
2 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$213.99
3 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
4 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
9 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
10 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
11 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
12 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
15 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
16 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
17 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
18 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
19 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 GR 5 Hex Bolts
$2.99
20 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
21 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
24 014-4801-00 014-4801-00 - 1/2 Metal Spindle Cover - Right (See Models Used On For Details)
$42.58
25 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
26 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
27 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
28 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
29 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
30 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
31 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
32.1 038-4227-00 038-4227-00 - 42" Gator Blade - Outlaw
$21.99
32 038-4226-00 038-4226-00 - 42" High Lift Blade-Outlaw
$21.99
33 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
34 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
35 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
36A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
36 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
37 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
38 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
39 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
40 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
41 039-6936-98 039-6936-98 - Deck Idler Assembly (See Models Used On For Details)
$64.19
42 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$5.82
43 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
44 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
45 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
46 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
