2015 Compact Diesel Fuel Tanks

Fuel Tanks

BadBoyMowerParts.com has the parts diagrams for the 2015 Compact Diesel models. Find all of your Bad Boy parts for your 2015 Compact Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Compact Diesel Fuel Tanks. If you are not able to find the Bad Boy parts for your 2015 Compact Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2015 Compact Diesel Fuel Tanks
  Position Number SKU Product Title Price
1 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$229.99
2 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
3 018-1040-00 018-1040-00 - Light Plug
$2.99
4 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
5 042-9000-00 042-9000-00 - Ignition Key
$4.06
6 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91
7 031-2011-00 031-2011-00 - 72 Tank Support- Right
$59.91
8 018-2015-00 018-2015-00 - 10-32 x 1 Button Head Bolt
$2.99
9 080-6010-00 080-6010-00 - Seat Frame (See Models Used On For Details)
$427.99
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
13 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
14 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
15 067-6055-00 067-6055-00 - Fuel Tank Hose Nipple (See Models Used On For Detail)
$26.48
16 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
17 073-8068-00 073-8068-00 - Fuel Line T
$9.70
18 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
19 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
20 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$4.81
21 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
22 086-0247-00 086-0247-00 - Harness for 24.7 Cat Diesel
$624.70

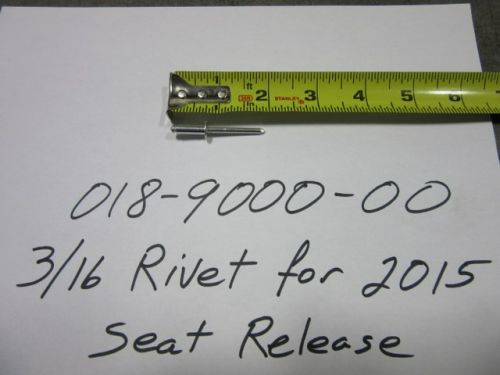

23 018-9000-00 018-9000-00 - 3/16 Pop Rivet
$2.99
24 064-0047-00 064-0047-00 - 2015 Seat Latch Cable (See Models Used On For Details)
$14.19
25 064-0046-00 064-0046-00 - 2015 Seat Latch Toggle
$28.39
26 089-1000-00 089-1000-00 - Oil Light
$12.63
27 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
28 078-8077-00 078-8077-00 - Joystick - Deck Lift
$34.29
29 086-7001-00 086-7001-00 - 2" Water Temperature Gauge, 2012-2019 Diesel Units
$107.76
30 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge
$107.76
32 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
33 079-3406-00 079-3406-00 - Left Diesel Control Panel (See Models Used On For Details)
$17.11
34 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
35 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
36 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$229.99
37 066-8090-00 066-8090-00 - Diesel Fuel Cap-3.5 inch Neck
$39.86
38 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
39 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
40 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
41 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92
