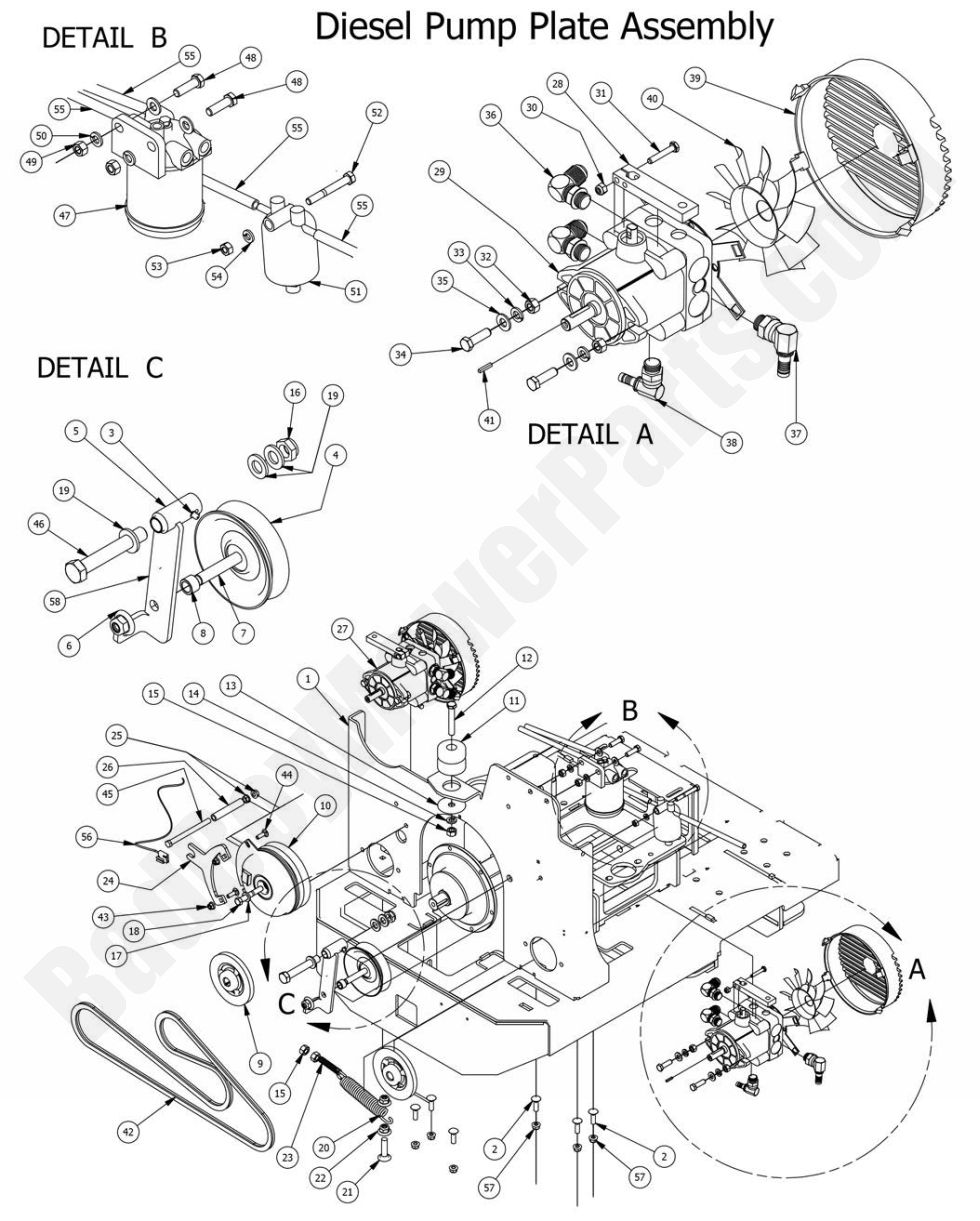

2015 Compact Diesel Pump Plate Assembly

Pump Plate Assembly

BadBoyMowerParts.com has the parts diagrams for the 2015 Compact Diesel models. Find all of your Bad Boy parts for your 2015 Compact Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Compact Diesel Pump Plate Assembly. If you are not able to find the Bad Boy parts for your 2015 Compact Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2015 Compact Diesel Pump Plate Assembly
  Position Number SKU Product Title Price
1 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$117.99
2 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
5 039-5950-00 039-5950-00 - Pump Idler Bracket 60 Diesel
$32.65
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
8 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
9 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
10 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch (See Models Used On For Details)
$385.19
11 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
13 032-4051-00 032-4051-00 - Snubbing Washer-032-4050-00
$17.02
14 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
15 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
16 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
19 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
20 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
21 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
23 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensione
$12.94
24 057-5910-10 057-5910-10 - 2010-2018 Diesel PTO Engager Holder
$22.71
25 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
26 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$4.81
27 050-5500-00 050-5500-00 - PR Pumps w/Fan 16cc Left Compact Diesel PR-2KCC-GY1G
$641.99
28 031-5923-00 031-5923-00 - Pump Arm
$30.07
29 050-5501-00 050-5501-00 - PR Pump w/Fan and Cover Right Compact Diesel PR2HCC-GY1G
$641.99
30 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
31 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 GR 5 Hex Bolt
$2.99
32 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
33 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
34 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
35 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
36 024-2060-00 024-2060-00 - 6801-LL-8-8 Fitting - Diesels
$26.53
37 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
38 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
39 014-5500-00 014-5500-00 - Fan Guard 7"
$39.03
40 015-9998-00 015-9998-00 - Hydro Fan 28 CAT Diesel
$10.99
41 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
42 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
43 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
44 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
45 018-7055-00 018-7055-00 - 3/8-16 x 5 Hex Bolt - Grade 5
$2.99
46 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
47 063-2011-00 063-2011-00 - CAT FUEL FILTER BIG
$29.95
48 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
51 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$157.73
52 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
53 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
54 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
55 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$4.81
56 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
57 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
58 039-5946-98 039-5946-98 - Pump Idler Bracket Assy Diesel
$56.77
