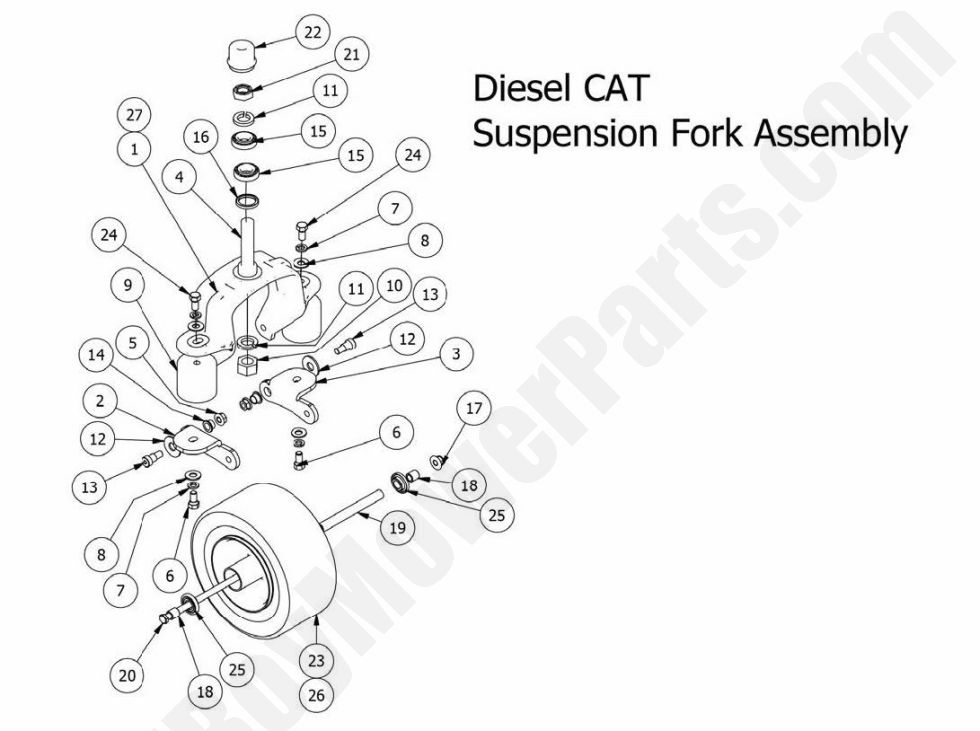

2015 Compact Diesel Suspension Fork Assembly

Suspension Fork Assembly

BadBoyMowerParts.com has the parts diagrams for the 2015 Compact Diesel models. Find all of your Bad Boy parts for your 2015 Compact Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Compact Diesel Suspension Fork Assembly. If you are not able to find the Bad Boy parts for your 2015 Compact Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2015 Compact Diesel Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2018 Diesel Suspension Fork Top/Side Combo
$209.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
9 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
10 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
11 019-3000-00 019-3000-00 - 1 Lock Washer
$3.29
12 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
13 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
14 032-5052-00 032-5052-00 - Bronze Bushing - SF-2024-8 Front Suspension Fork
$4.81
15A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$2.99
15 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
16A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
16 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
19 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
20 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
22 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
24 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
25 022-7010-00 022-7010-00 - 1 3/4" Bearing-Large Bore Front Wheel
$20.32
26 022-1050-00 022-1050-00 - No-Flat 13 x 6.50-6 Orange Whe
$160.49
27 023-7915-98 023-7915-98 - Suspension Fork Assembly
$294.99
