2015 Diesels Air Filter Assembly

Air Filter Assembly

BadBoyMowerParts.com has the parts diagrams for the 2015 Diesels models. Find all of your Bad Boy parts for your 2015 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Diesels Air Filter Assembly. If you are not able to find the Bad Boy parts for your 2015 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

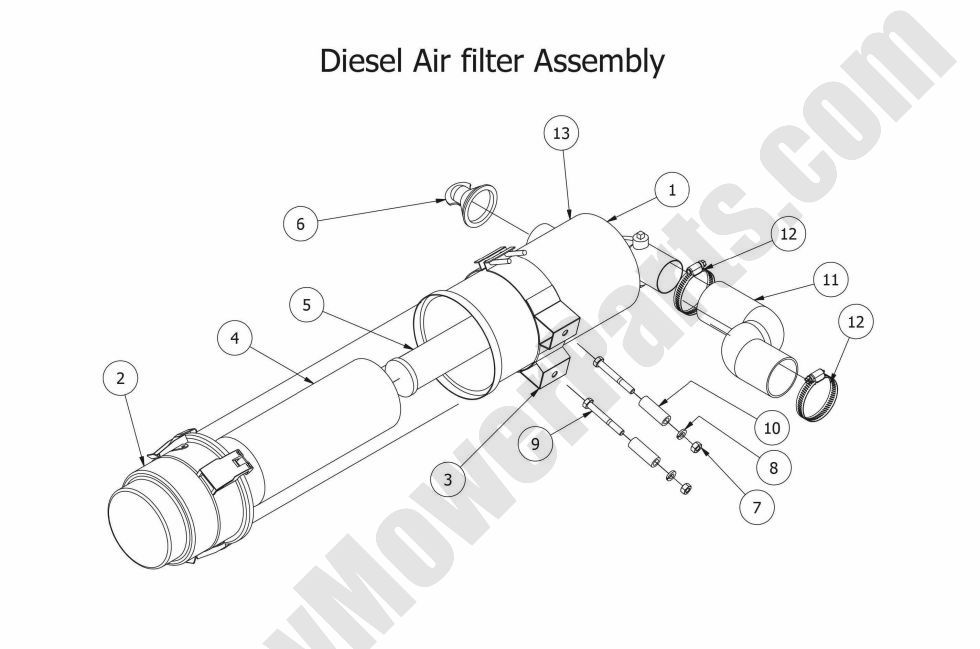

2015 Diesels Air Filter Assembly
  Position Number SKU Product Title Price
1 088-1018-00 088-1018-00 - Canister forAll Diesel Air
$85.17
2 088-1017-00 088-1017-00 - Enginaire air canister cap
$64.19
3 088-1019-00 088-1019-00 - Mounting Bracket for Diesel Ai
$32.09
4 063-2050-00 063-2050-00 - Diesel Air Filter - Outer
$46.78
5 063-2060-00 063-2060-00 - Diesel Air Filter - Inner
$42.58
6 088-1020-00 088-1020-00 - Debris Plug-Enginaire Filter
$14.19
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
10 025-8000-00 025-8000-00 -.378x.625x1.750 Spacer Zinc
$4.81
11 051-3002-00 051-3002-00 - Air Intake Hose-Diesel Air Filter Canister
$27.43
12 072-2002-00 072-2002-00 - 2-1/2 Hose Clamp
$11.34
13 088-1010-50 088-1010-50 - Enginaire Canister VLR-Complete Diesel Models
$211.55
