2015 Diesels Drive Arms

Drive Arms

BadBoyMowerParts.com has the parts diagrams for the 2015 Diesels models. Find all of your Bad Boy parts for your 2015 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Diesels Drive Arms. If you are not able to find the Bad Boy parts for your 2015 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

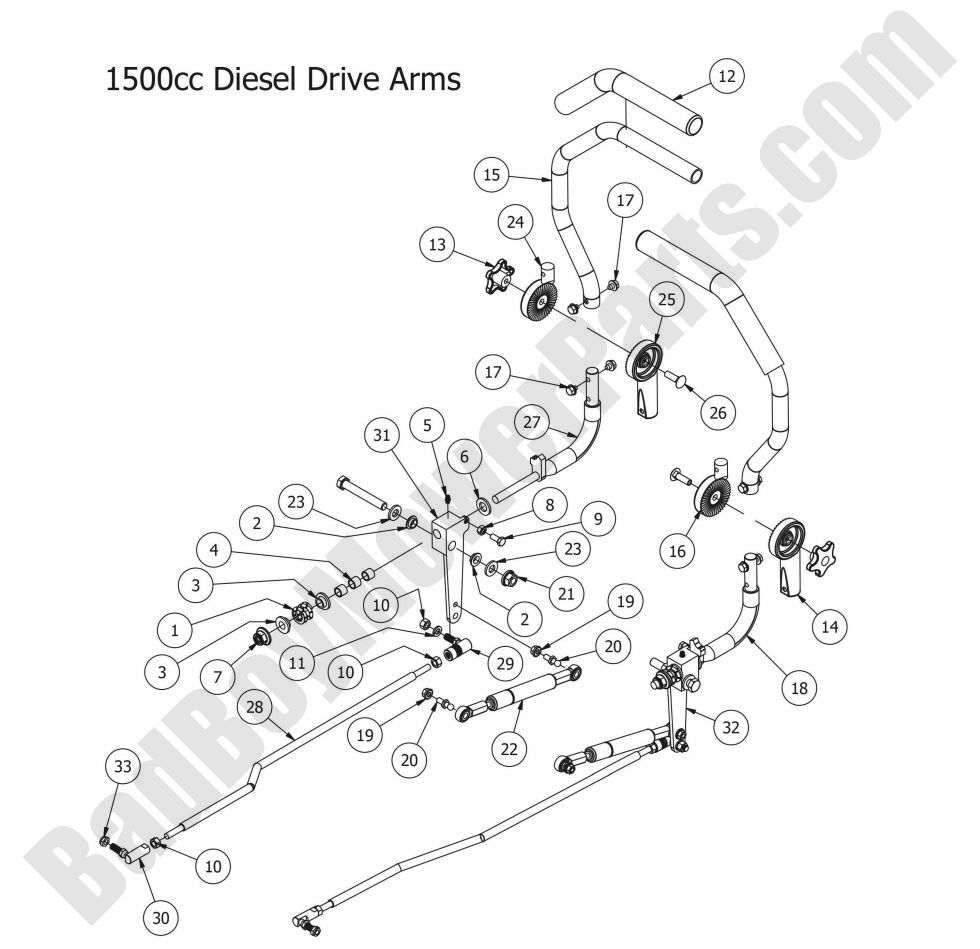

2015 Diesels Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
10 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
11 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
12 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
13 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$4.39
14 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
15 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
16 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
17 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt-Steerin g Arms
$2.99
18 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-9025-70
$85.17
19 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
20 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
21 013-0085-00 013-0085-00 - 1/2-13 HEX FLANGE (GR.G) ZC
$2.99
22 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socke Stabilus 000214
$56.72
23 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Wa sher for 2012 Drive Arm Blocks
$4.83
24 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
25 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
26 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
27 031-9020-00 031-9020-00 - Left Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
28 035-6050-00 035-6050-00 - 35HP Cat Diesel Steering Push Rod
$40.61
29 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
30 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
31 027-8819-00 027-8819-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing (left)
$46.84
32 027-8820-00 027-8820-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing Right
$46.84
33 018-4011-00 018-4011-00 - 3/8-24 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
