2015 Diesels Suspension & Wheel Motor

Suspension & Wheel Motor

BadBoyMowerParts.com has the parts diagrams for the 2015 Diesels models. Find all of your Bad Boy parts for your 2015 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Diesels Suspension & Wheel Motor. If you are not able to find the Bad Boy parts for your 2015 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

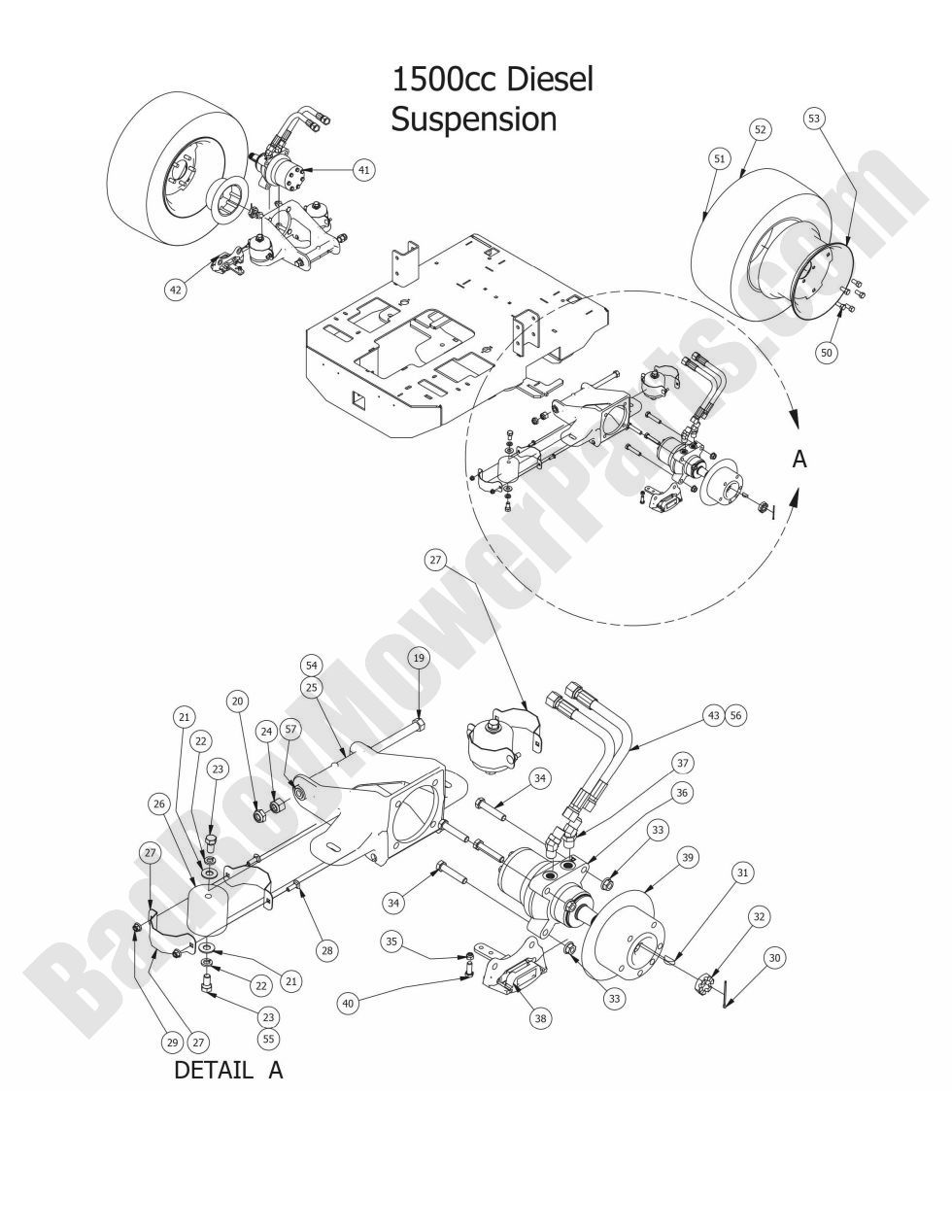

2015 Diesels Suspension & Wheel Motor
  Position Number SKU Product Title Price
19 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
20 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
21 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
24 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
25 070-8000-00 070-8000-00 - 60 Suspension Kit Wheel Motor
$312.34
26 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
27A 072-1000-98 072-1000-98 - Isolator Clamp Assembly
$28.39
27 072-1000-00 072-1000-00 - Isolator Band Clamp
$7.28
28 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
31 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
32 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$15.61
33 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
34 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
35 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
36 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right AOS/Diesel
$640.93
37 024-2050-00 024-2050-00 - 45 Degree Wheel Motor Fitting -6822
$17.02
38 092-7000-00 092-7000-00 - 2014-2018 Outlaw XP/Diesel, 2019-2022 Renegade/Rogue Right Brake Caliper w/bracket
$99.32
39 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2018 Diesel/Outlaw XP, 2019-2022 Renegade/Rogue Brake Disc 8
$127.72
40 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
41 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor - Left AOS/Diesel
$640.93
42 092-7001-00 092-7001-00 - 2014-2018 Outlaw XP/Diesel, 2019-2022 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
43 051-2080-00 051-2080-00 - 26" Hydraulic Hose Assembly w/Adaptors
$156.17
50 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
51 022-7031-00 022-7031-00 - 26 x 12.00 - 12 Tire and Orang e Wheel Assembly
$458.99
52 022-7032-00 022-7032-00 - 26 x 12.00 - 12 Tire (One Tire Only)
$331.99
53 022-7034-00 022-7034-00 - 12 x 10.5 Wheel - AOS Rear
$235.99
54 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$283.95
55 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
56 051-6085-00 051-6085-00 - 26 inch Hose Only
$40.53
57 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
