2015 Outlaw & Outlaw Extreme Drive Arms

Drive Arms

BadBoyMowerParts.com has the parts diagrams for the 2015 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2015 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Outlaw & Outlaw Extreme Drive Arms. If you are not able to find the Bad Boy parts for your 2015 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

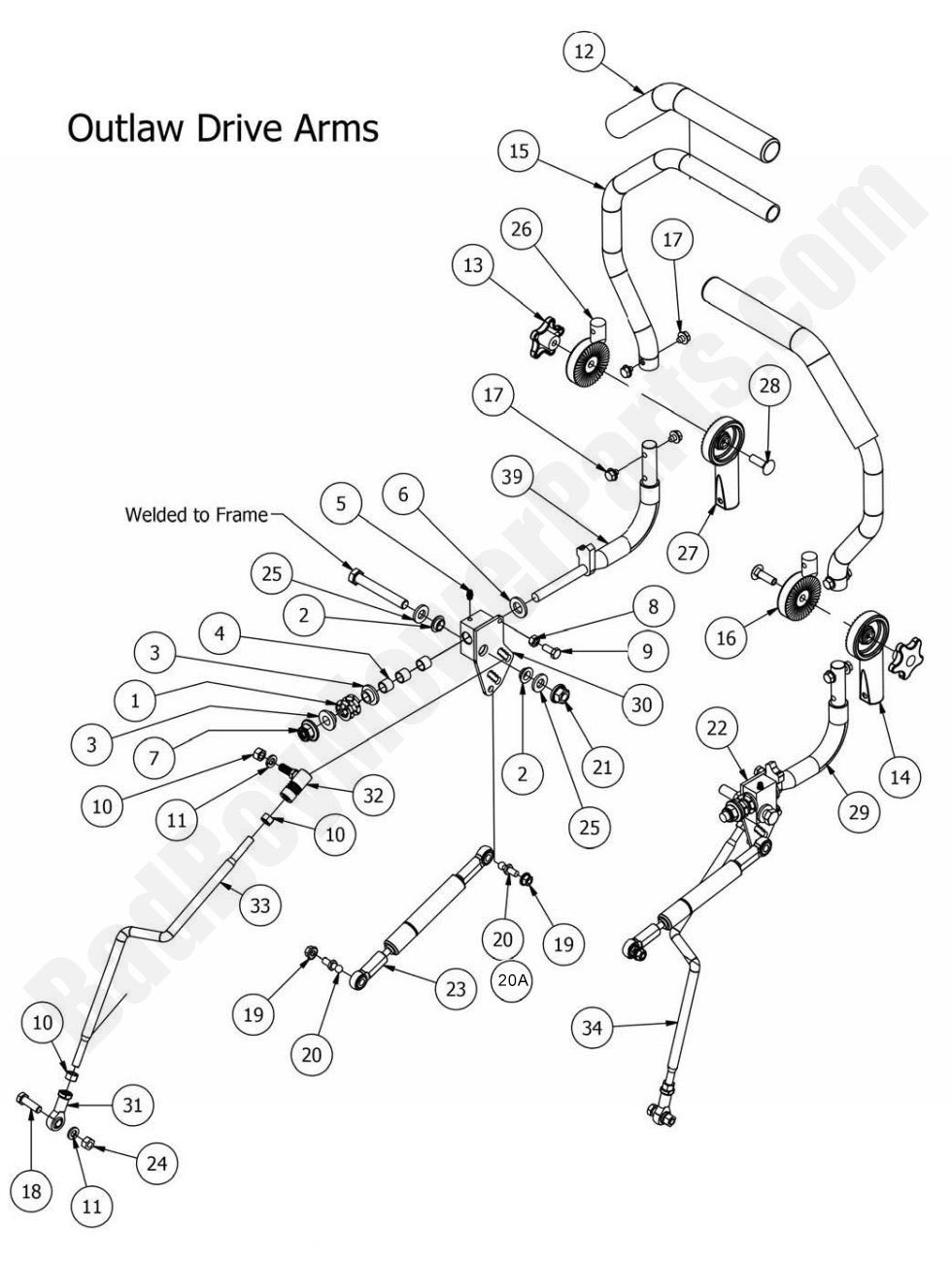

2015 Outlaw & Outlaw Extreme Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
10 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
11 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
12 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
13 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$4.39
14 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
15 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
16 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
17 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt-Steerin g Arms
$2.99
18 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
19 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
20A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper for Outlaw
$4.83
20 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
21 013-0085-00 013-0085-00 - 1/2-13 HEX FLANGE (GR.G) ZC
$2.99
22 027-8901-00 027-8901-00 - 2013-2015 ZT/CZT, 2013-2016 Outlaw, 2016 Maverick Drive Lever Housing (Right)
$14.19
23 087-3000-00 087-3000-00 - Steering Damper for Outlaw
$62.40
24 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
25 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Wa sher for 2012 Drive Arm Blocks
$4.83
26 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
27 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
28 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
29 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-9025-70
$85.17
30 027-8900-00 027-8900-00 - Drive Lever Housing (Left)2013 cZT, ZT, (obsolete)
use part #031-0017-98
$31.23
31 048-3000-00 048-3000-00 - Spherical Rod End-Outlaw Only (See Models Used On For Details)
$14.19
32 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
33 035-0050-00 035-0050-00 - 2015-2018 Outlaw/Outlaw Extreme Left Push Rod
$35.43
34 035-0075-00 035-0075-00 - 2015-2018 Outlaw/Outlaw Extreme Right Push Rod
$26.70
