2015 Outlaw & Outlaw Extreme Engine - Kohler 824cc EFI

Engine - Kohler 824cc EFI

BadBoyMowerParts.com has the parts diagrams for the 2015 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2015 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Outlaw & Outlaw Extreme Engine (Kohler 824cc EFI). If you are not able to find the Bad Boy parts for your 2015 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

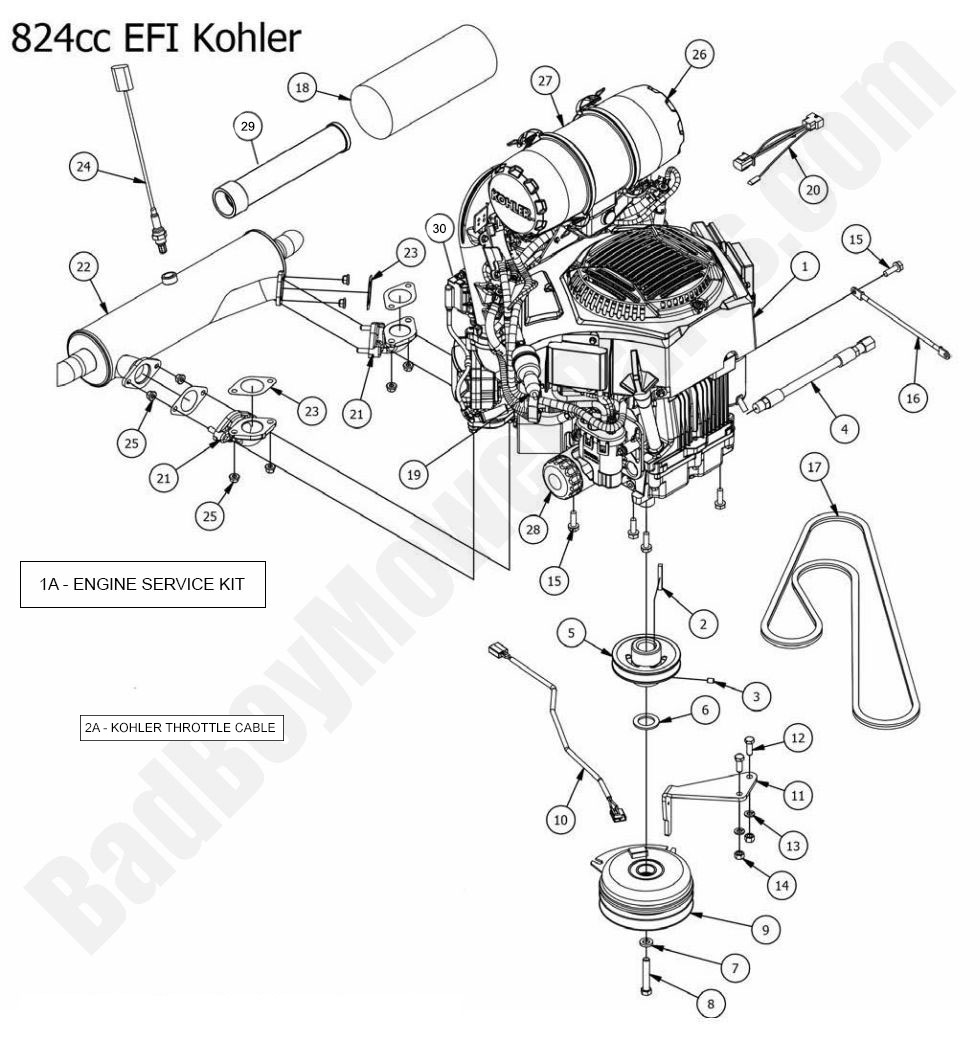

2015 Outlaw & Outlaw Extreme Engine - Kohler 824cc EFI
  Position Number SKU Product Title Price
1A 063-2000-09 063-2000-09 - Kohler Command and Kohler ECV749
$121.25

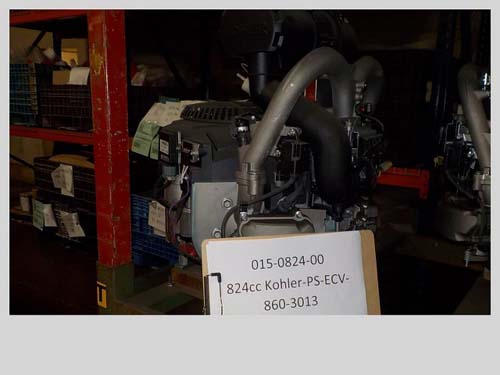

1 015-0824-00 015-0824-00 - 824cc Kohler-PS-ECV-860-3013
$3850.93
2 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
3 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
4 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
5 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
6 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
7 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
8 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
9 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
10 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
11 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
12 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
13 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
16 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
17 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
18.0 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
19 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
20 086-9003-00 086-9003-00 - Harness Adaptor-Kohler 824 EFI
$32.09

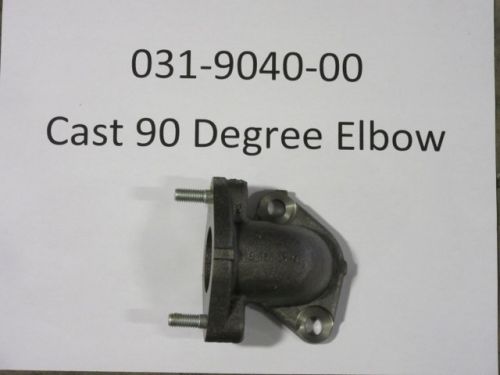

21 031-9040-00 031-9040-00 - Cast 90 Elbow
$42.79
22 015-0825-00 015-0825-00 - Exhaust-824cc PS-ECV-860 EFI Kohler
$139.09
23 015-9500-00 015-9500-00 - Exhaust Gasket for 824 EFI Kohler
$10.99
24 015-4100-00 015-4100-00 - O2 Sensor for 824EFI Kohler
$212.96
26 015-2704-00 015-2704-00 - 30 Kohler End Cap - New Style
$32.09
27 015-2720-00 015-2720-00 - 29HP Kohler Air Canister Ass
$267.49
28 063-5400-00 063-5400-00 - Bad Boy Oil Filter (Long) - Kohler Engines
$20.32
29 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
30 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
