The Spindle Assembly in your 2015 Outlaw & Outlaw Extreme plays a vital role in your mower's cutting system. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts designed to keep your spindle assembly in excellent condition. Our Bad Boy Mower Part Diagrams provide clear images of each part, helping you identify and order the exact pieces needed for your mower. You’ll find everything you need, from spindles to bearings and pulleys, in our Bad Boy Lawn Mower Parts section. Ordering Bad Boy Parts Online is easy, and don’t forget that we offer Free Shipping On Orders Over $100, making it more affordable to maintain your mower and ensure a clean, smooth cut every time.

|

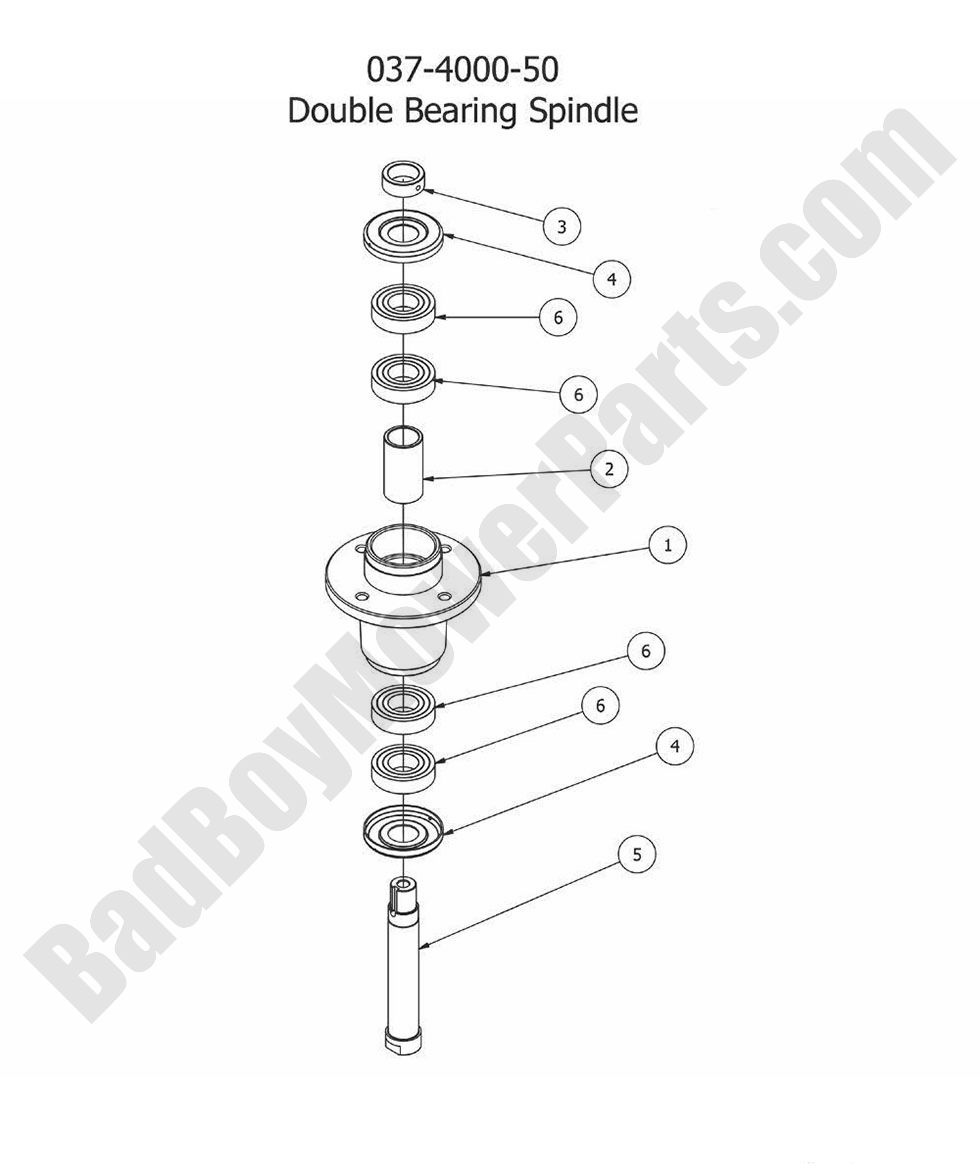

| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1.0 | 037-4000-50 |
037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete) use part #037-4000-00 |
$291.91
|
||
| 2 | 037-4002-00 | 037-4002-00 - Spindle Spacer (See Models Used On For Details) |
$7.28
|
||
| 3 | 037-9050-00 | 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details) |
$7.28
|
||
| 4 | 037-8002-00 | 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50) |
$11.76
|
||
| 5 | 037-6026-00 | 037-6026-00 - Short Spindle Shaft - No Grooved Shaft |
$83.77
|
||
| 6 | 037-6029-00 | 037-6029-00 - Spindle Bearing (See Models Used On For Details) |
$42.58
|
