2015 Outlaw XP Fuel Tanks

Fuel Tanks

BadBoyMowerParts.com has the parts diagrams for the 2015 Outlaw XP models. Find all of your Bad Boy parts for your 2015 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Outlaw XP Fuel Tanks. If you are not able to find the Bad Boy parts for your 2015 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

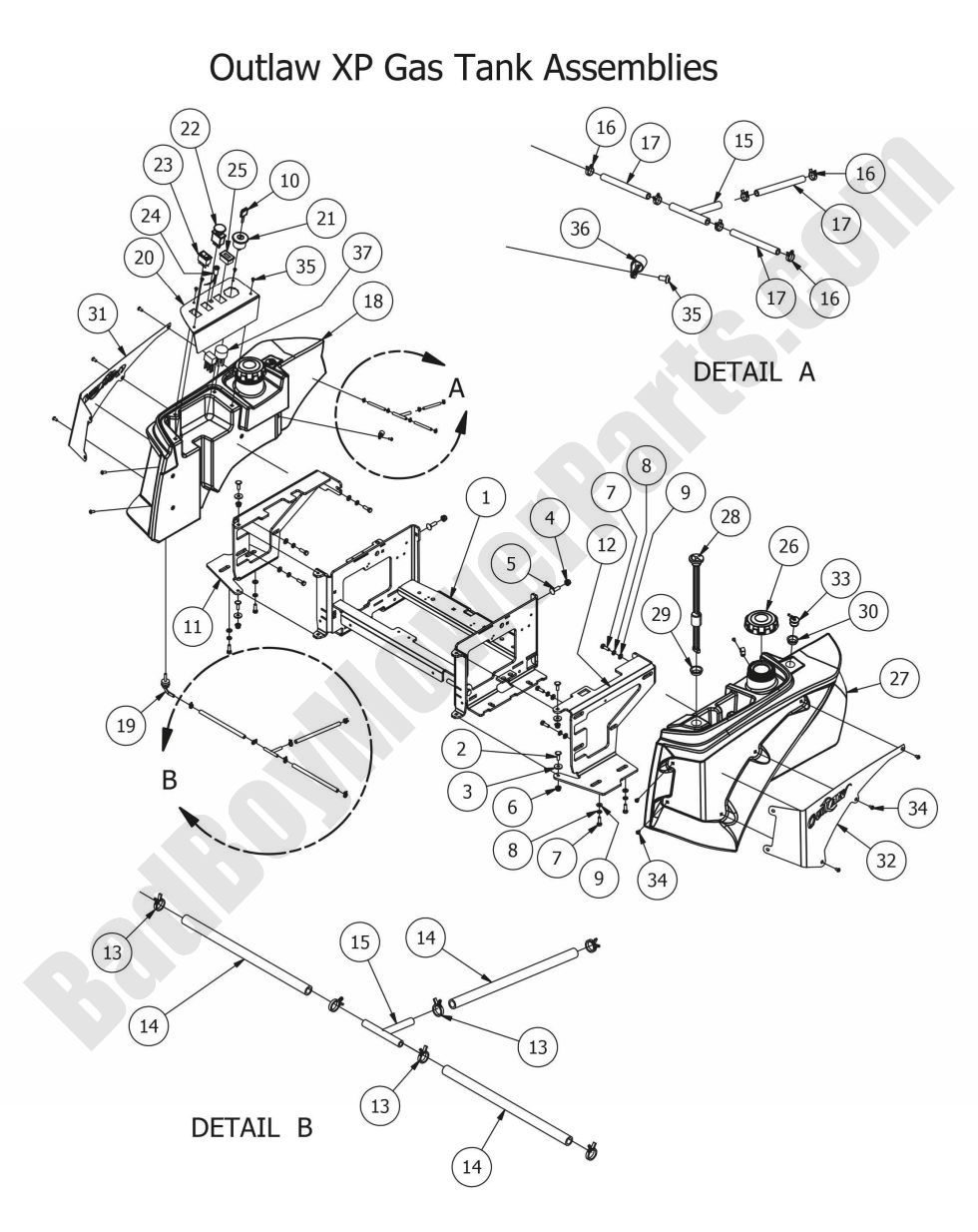

2015 Outlaw XP Fuel Tanks
  Position Number SKU Product Title Price

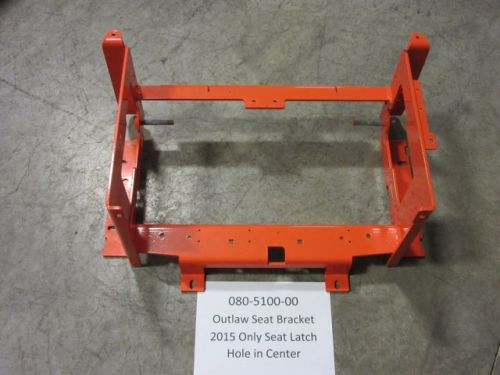

1 080-5100-00 080-5100-00 - Outlaw Seat Bracket 2015
$427.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 042-9000-00 042-9000-00 - Ignition Key
$4.06

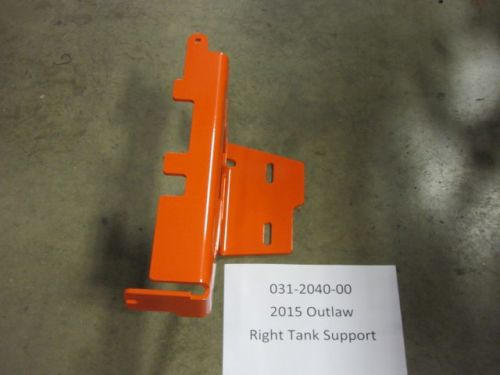

11 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84

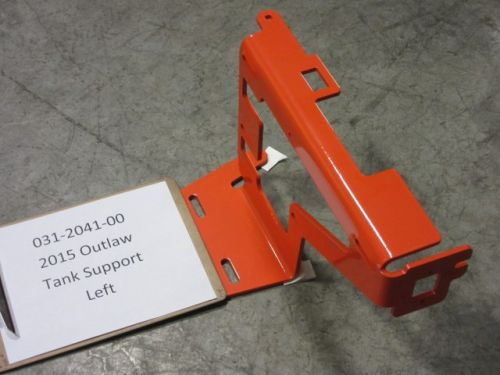

12 031-2041-00 031-2041-00 - 2015 Outlaw Tank Support(Left)
$58.84
13 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
15 073-8068-00 073-8068-00 - Fuel Line T
$9.70
16 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
17 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
17 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99

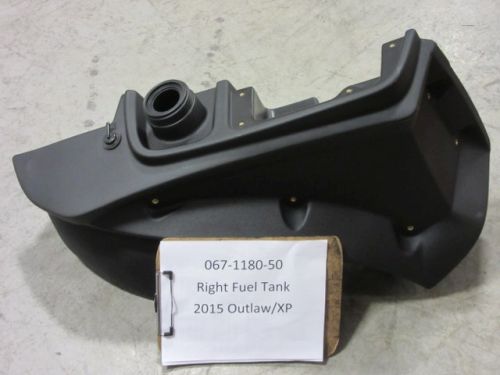

18 067-1180-50 067-1180-50 - 2015-2018 Outlaw/XP Right Fuel Tank
$278.99
19 067-6055-00 067-6055-00 - Fuel Tank Hose Nipple (See Models Used On For Detail)
$26.48

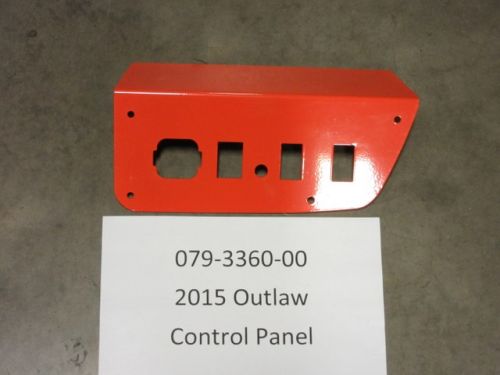

20 079-3360-00 079-3360-00 - 2015-2018 Outlaw/XP Control Panel
$28.39
21 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
22 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
23 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
24 089-1000-00 089-1000-00 - Oil Light
$12.63
25 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
26 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05

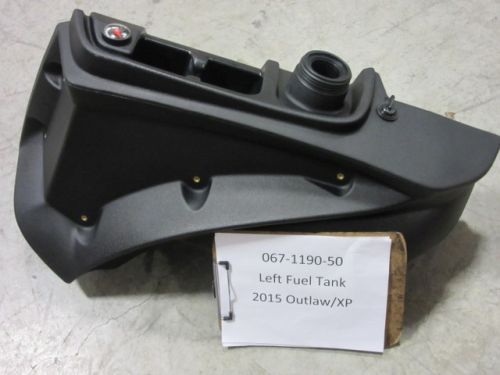

27 067-1190-50 067-1190-50 - 2015-2018 Outlaw/XP Left Fuel Tank
$352.99
28 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
29 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14

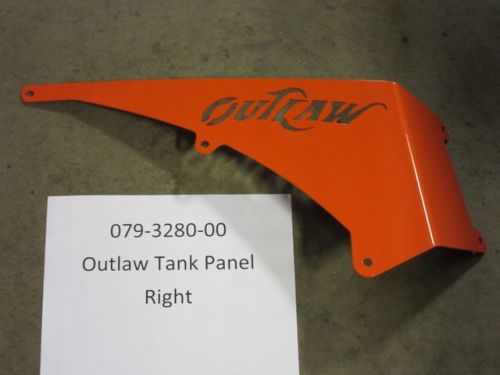

31 079-3280-00 079-3280-00 - 2015-2018 Outlaw/XP Right Tank Panel (Metal)
$26.74

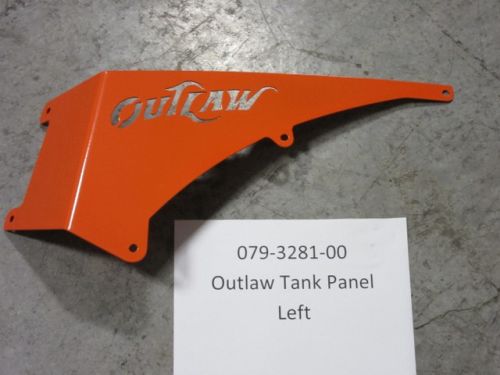

32 079-3281-00 079-3281-00 - 2015-2018 Outlaw/XP Left Tank Panel (Metal)
$26.74
33 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
34 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
35 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99

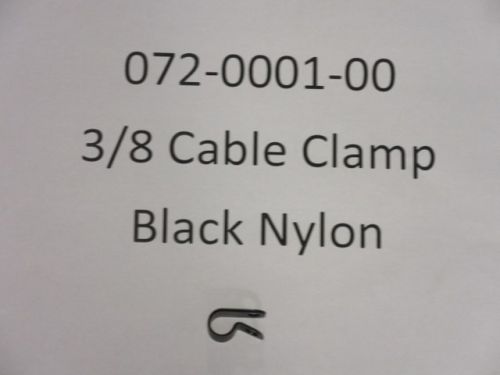

36 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49

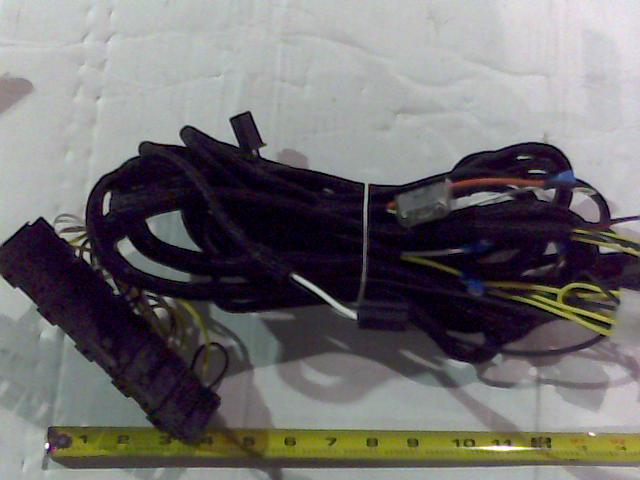

37 086-2050-00 086-2050-00 - Wiring Harness 23hp-27hp Briggs and Stratton, 2011-2018 Outlaw
$388.88
