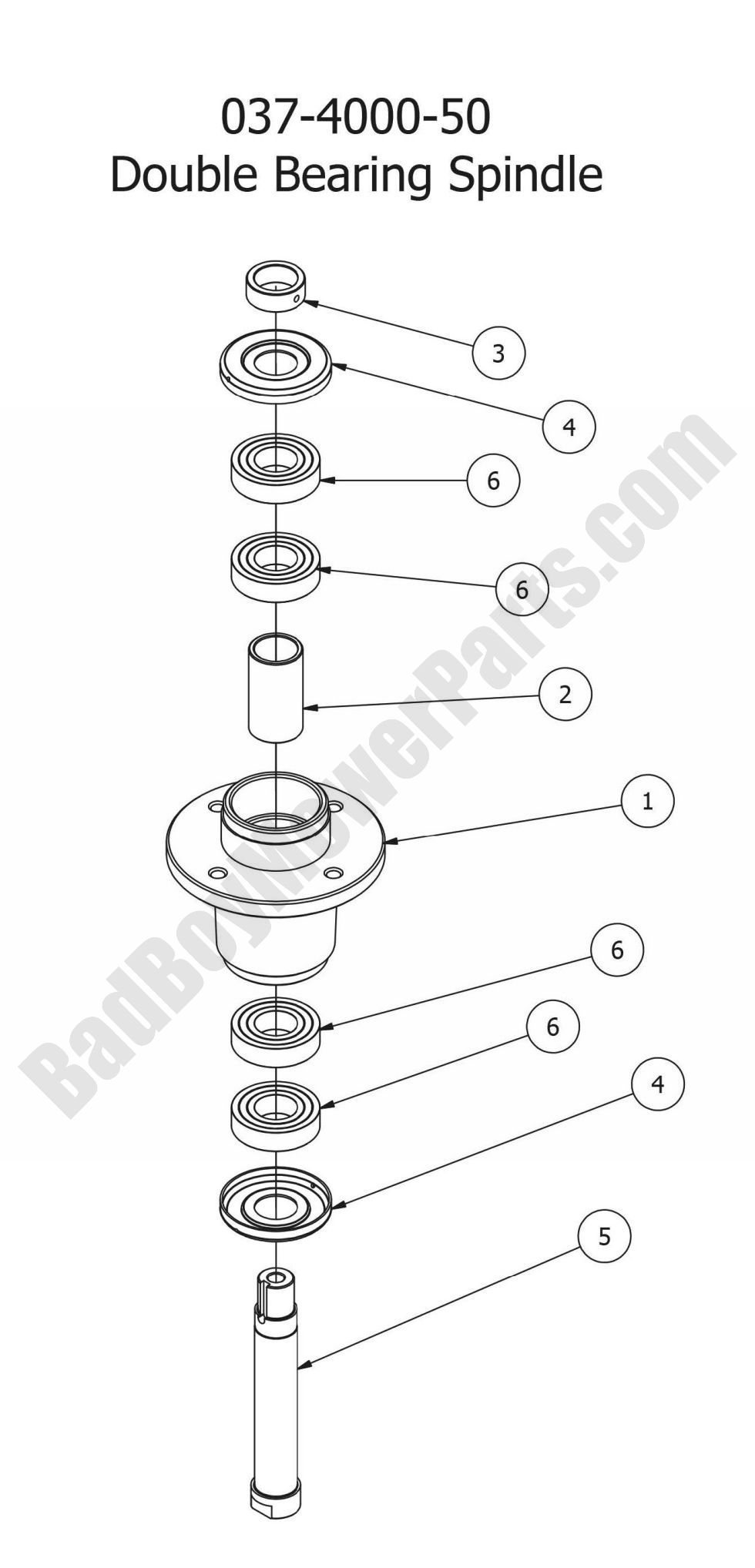

BadBoyMowerParts.com has the parts diagrams for the 2015 Outlaw XP models. Find all of your Bad Boy parts for your 2015 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 Outlaw XP Spindle Assembly. If you are not able to find the Bad Boy parts for your 2015 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1.0 | 037-4000-50 |
037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete) use part #037-4000-00 |
$312.34
|
||
2 | 037-4002-00 | 037-4002-00 - Spindle Spacer (Used on 037-4000-00 & 037-4000-50) |
$7.28
|
||
3 | 037-9050-00 | 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details) |
$7.28
|
||
4 | 037-8002-00 | 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50) |
$11.76
|
||
5 | 037-6026-00 | 037-6026-00 - Short Spindle Shaft w/Locking Collar - No Grooved Shaft |
$83.77
|
||
6 | 037-6029-00 | 037-6029-00 - Spindle Bearing (See Models Used On For Details) |
$42.58
|
