2015 ZT Elite Fuel Tank

Fuel Tank

BadBoyMowerParts.com has the parts diagrams for the 2015 ZT Elite models. Find all of your Bad Boy parts for your 2015 ZT Elite parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 ZT Elite Fuel Tank. If you are not able to find the Bad Boy parts for your 2015 ZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

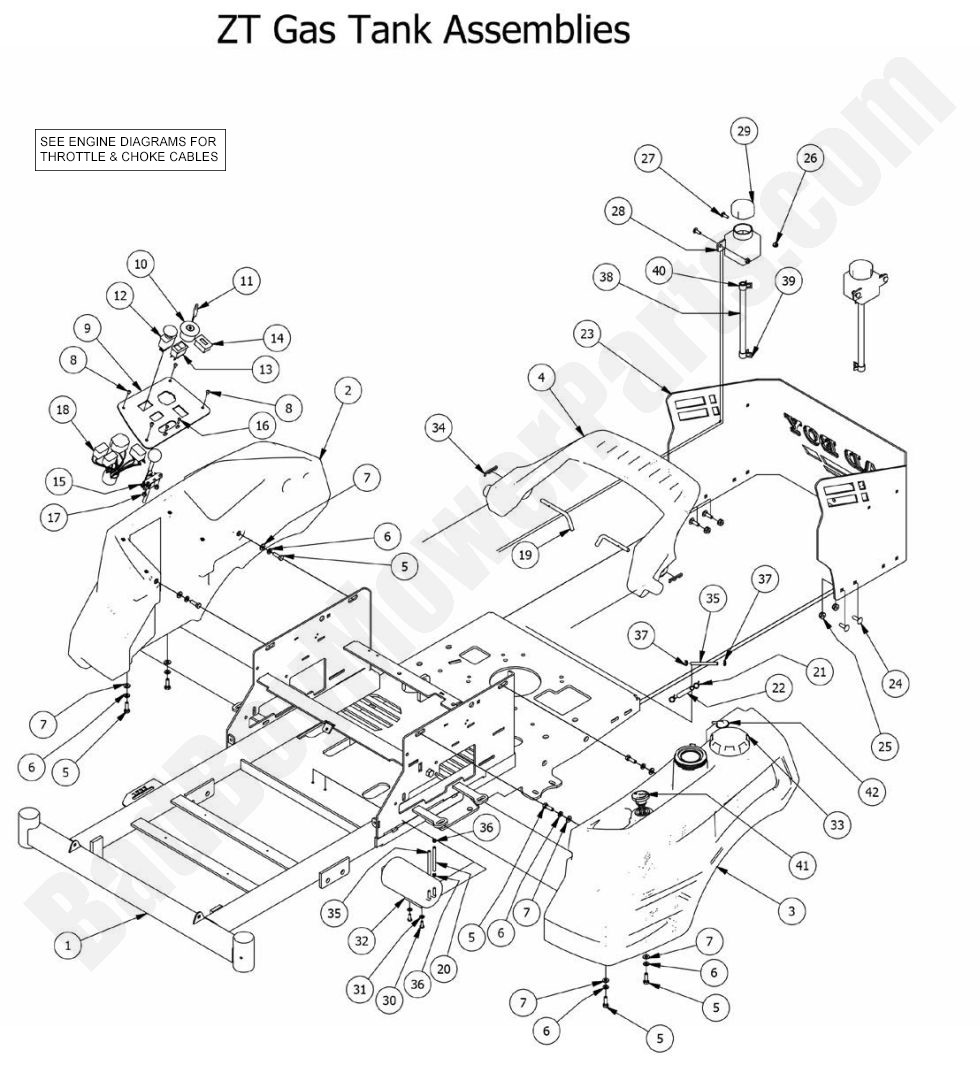

2015 ZT Elite Fuel Tank
  Position Number SKU Product Title Price

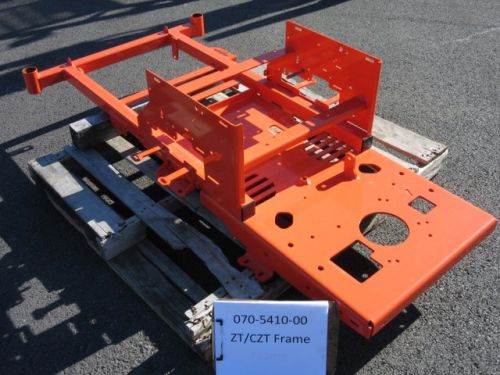

1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1283.99
2 067-1000-50 067-1000-50 - 2014-2016 ZT Right Side Console
$213.99
3 067-1001-50 067-1001-50 - 2014-2016 ZT Left Fuel Tank
$331.99
4 067-1050-50 067-1050-50 - 2014-2016 ZT Spoiler
$85.59
5 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
6 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
9 079-3460-00 079-3460-00 - 2014-2022 Control Panel (See Models Used On For Details)
$23.53
10 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
11 042-9000-00 042-9000-00 - Ignition Key
$4.06
12 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
13 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
14 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
15 055-8020-00 055-8020-00 - Throttle-53" (See Models Used On For Details)
$38.97
16 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
17 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
18 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$388.88
19 020-2014-00 020-2014-00 - Bent Pin-2014 ZT Spoiler
$7.36
20 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
21 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
22 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41

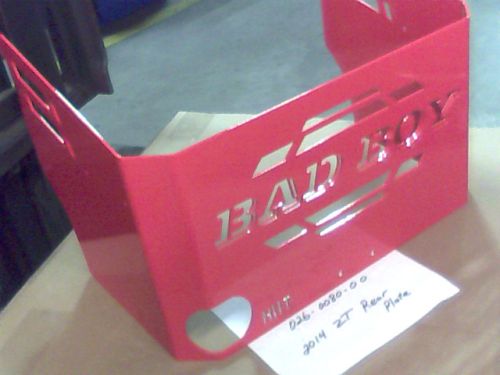

23 026-0080-00 026-0080-00 - Rear Plate (See Models Used On For Details)
$245.99
24 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
25 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
26 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
27 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
28 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
29 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
30 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
31 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
32 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
33 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23

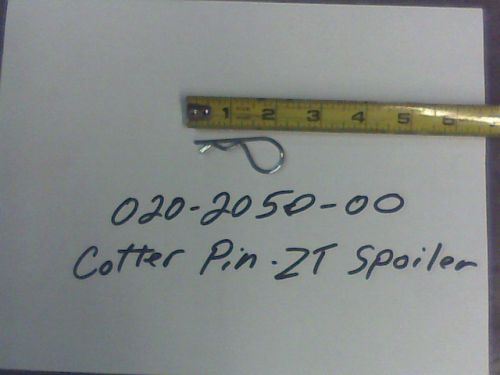

34 020-2050-00 020-2050-00 - Cotter Pin-ZT Spoiler
$2.99
35 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
36 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
37 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
38 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
39 072-8066-00 072-8066-00 - 1/2 Hose Clamp
$2.99
40 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
41 067-4080-00 067-4080-00 - Fuel Gauge (See Models Used On For Details)
$32.09
42 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
