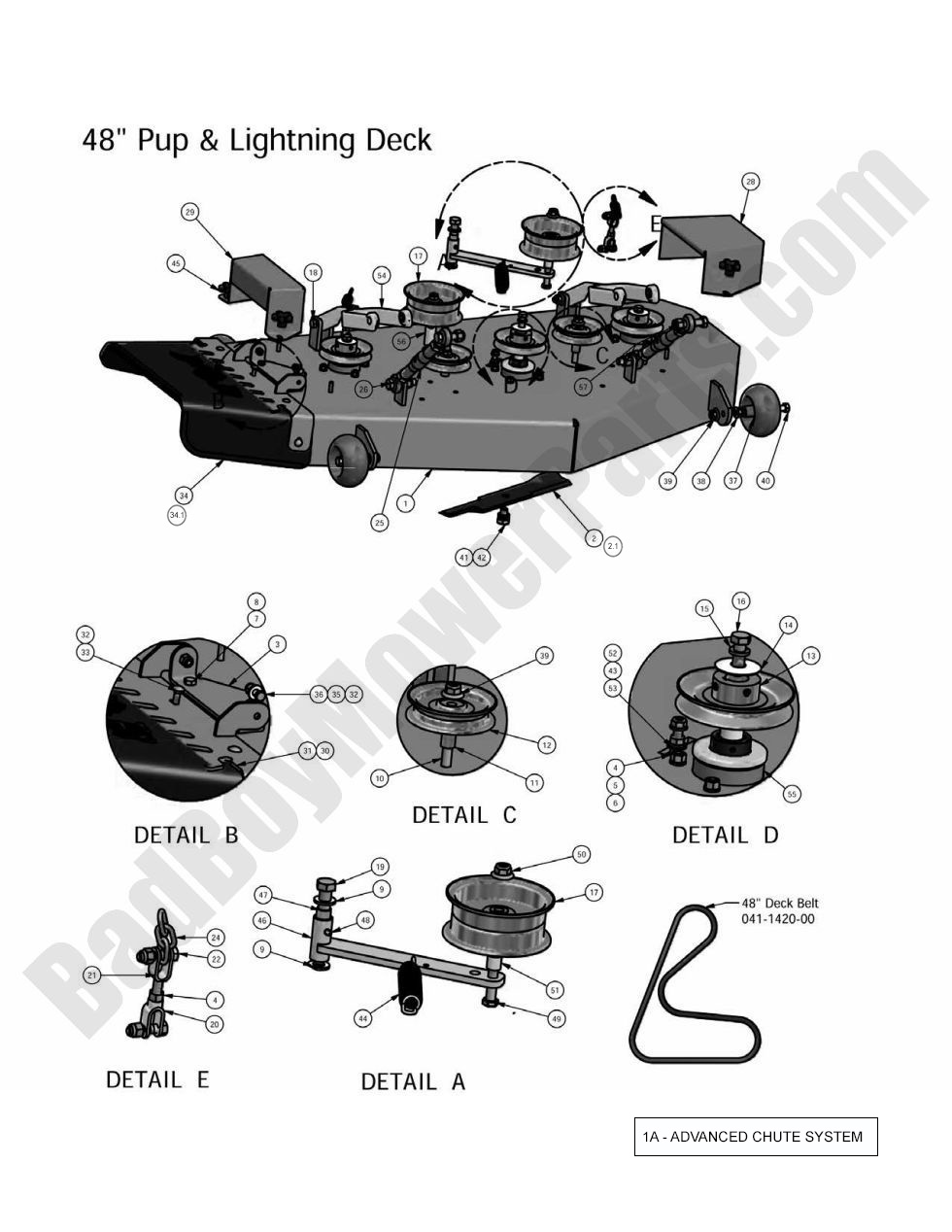

2010 Pup and Lightning 48" Deck Assembly

48" Deck Assembly

The Bad Boy Mower parts diagram for the 2010 Pup and Lightning 48" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Pup and Lightning models. Find all of your Bad Boy mowers 2010 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Pup and Lightning 48" Deck. If you are not able to find the Bad Boy parts for your 2010 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Pup and Lightning 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$266.99
1 060-5401-00 060-5401-00 - 2007-2010 48" Pup Deck - Shell Only
$1123.49
2.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
3 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
4 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
5 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
6 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
7 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
12 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
13 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
14 019-6019-00 019-6019-00 - Spring blade cupped washer bot tom spindle
$9.23
15 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
17 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
18 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
19 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
20 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
21 046-6048-00 046-6048-00 - Male Yoke
$15.60
22 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
24 047-6047-98 047-6047-98 - 3-Link Adjustable Deck Hanger (obsolete)
use part #046-6048-98
$32.09
25 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
26 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
28 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
29 014-4801-00 014-4801-00 - 1/2 Metal Spindle Cover - Right (See Models Used On For Details)
$42.58
30 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
31 039-4870-00 039-4870-00 - 48/52 Discharge Top Bracket Ru bber Chute Assembly
$42.52
32 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
33 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
34.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$181.89
34 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
35 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
36 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
37A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
37 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
39 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
41 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
42 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
43 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
44 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
45 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
46 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
47 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
48 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
49 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
51 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
52 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
53 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
54 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
55 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$312.34
56 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
57 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
BELT 041-1420-00 041-1420-00 - B142 Deck Belt For 48" Pup/Lightning & PTO Belt For Gas Powered Mowers So Equipped
$88.80
