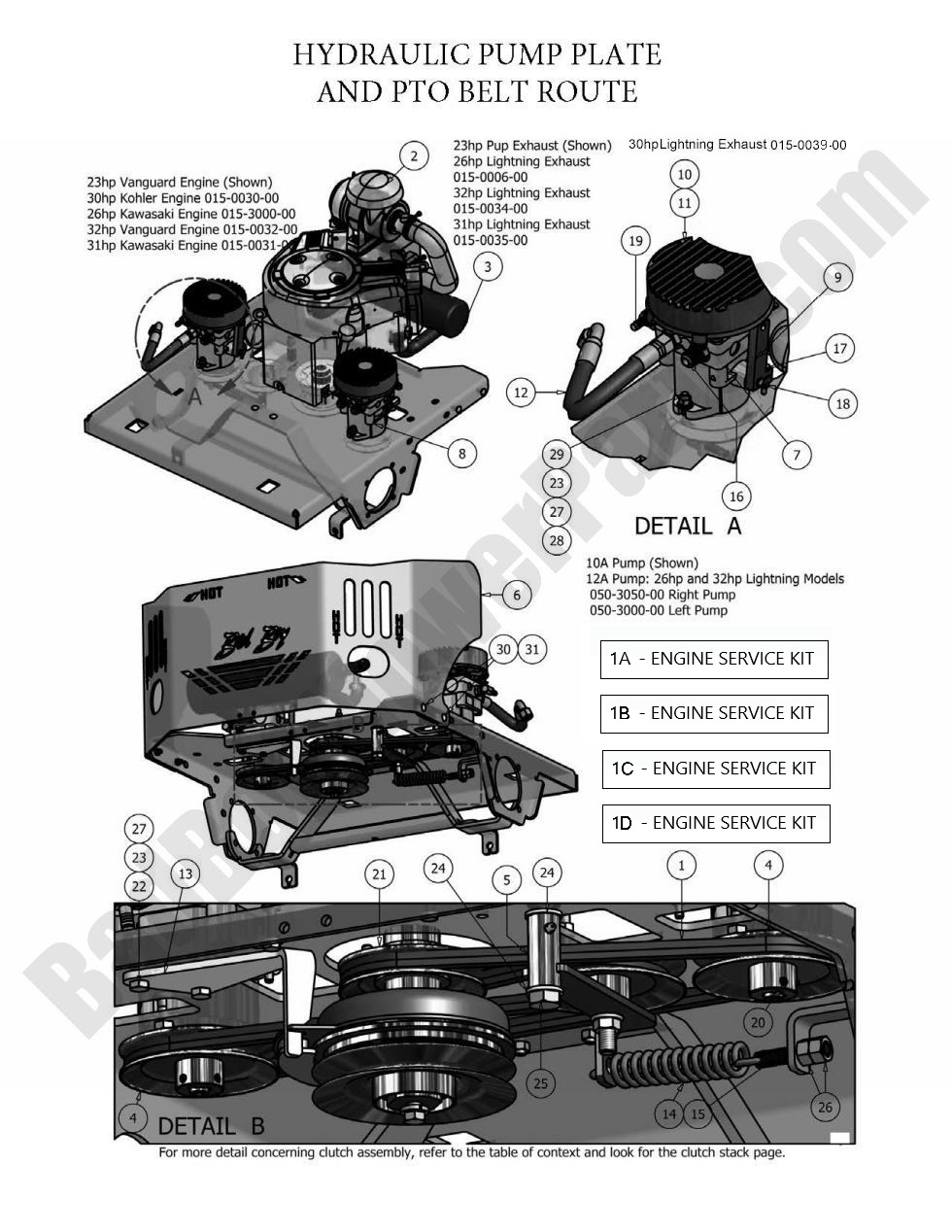

2010 Pup and Lightning Hydraulic Pump

Hydraulic Pump

The Bad Boy Mower parts diagram for the 2010 Pup and Lightning Hydraulic Pump is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Pup and Lightning models. Find all of your Bad Boy mowers 2010 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Pup and Lightning Hydraulic Pump. If you are not able to find the Bad Boy parts for your 2010 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Pup and Lightning Hydraulic Pump
  Position Number SKU Product Title Price
1A 063-2000-03 063-2000-03 - Briggs Vanguard 23hp Service Kit
$189.64
1B 063-2000-09 063-2000-09 - Kohler Command and Kohler ECV749
$121.25
1C 063-2000-02 063-2000-02 - Kawasaki FX850 & FX1000 Engine Service Kit
$124.74
1D 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc Engine Service Kit
$127.15
1 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
3 015-0033-00 015-0033-00 - Exhaust - 23hp Vanguard Engine
$220.06
4 033-5003-00 033-5003-00 - 5" Cast Pump Pulley - 15mm
$56.77
5 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
6 026-5321-00 026-5321-00 - Pup Rear Plate
$212.99
7 050-5303-00 050-5303-00 - Right Pump, 10cc - Pup Models
$855.99
8 050-5302-00 050-5302-00 - Left Pump, 10cc - Pup Models
$855.99
9 031-5333-00 031-5333-00 - XP/Pup/Lightning Pump Arm
$22.75
10 015-9999-00 015-9999-00 - Hydro Fan - Light/Pup/OutlawXP
$26.74
11 014-5500-00 014-5500-00 - Fan Guard 7"
$39.03
12 051-5341-00 051-5341-00 - 17" Hydraulic Hose-Pup/Lightni ng (obsolete)
use part #051-2000-00
$49.63
13 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
14 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
15 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensione
$12.94
16 024-5343-00 024-5343-00 - Hydraulic Pump Fitting 6400-10 -8
$7.95
17 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 GR 5 Hex Bolt
$2.99
18 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
19 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
20 042-5301-00 042-5301-00 - 5MM X 1 Square Key Stock
$2.99
21 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
22 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
23 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
26 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
27 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
28 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
29 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
30 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
31 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
32 015-0030-00 015-0030-00 - 27hp Kohler Engine 810cc
$3632.65
34 015-0032-00 015-0032-00 - 32hp Vanguard Engine
$3632.65
35 015-0031-00 015-0031-00 - Kawa Engine FX-850V-AS15R
$3632.65
36 015-0006-00 015-0006-00 - Exhaust-26hp Kawasaki Engine Liquid Cooled Lightning
$227.15
37 015-0034-00 015-0034-00 - Exhaust-32/36hp Vanguard Engine
$198.76
38 015-0035-00 015-0035-00 - Exhaust for 31hp Kawasaki
$218.63
39 050-3050-00 050-3050-00 - Right Pump 12cc - Lightning PK-3HCC-GY1C-XXXX
$888.09
40 050-3000-00 050-3000-00 - Left Pump 12cc - Lightning PK-3KCC-GY1C-XXXX
$909.49
41 015-0039-00 015-0039-00 - Exhaust 30 Kohler
$641.99
