2010 Pup and Lightning Wheel Motor (Pup Models)

Wheel Motor (Pup Models)

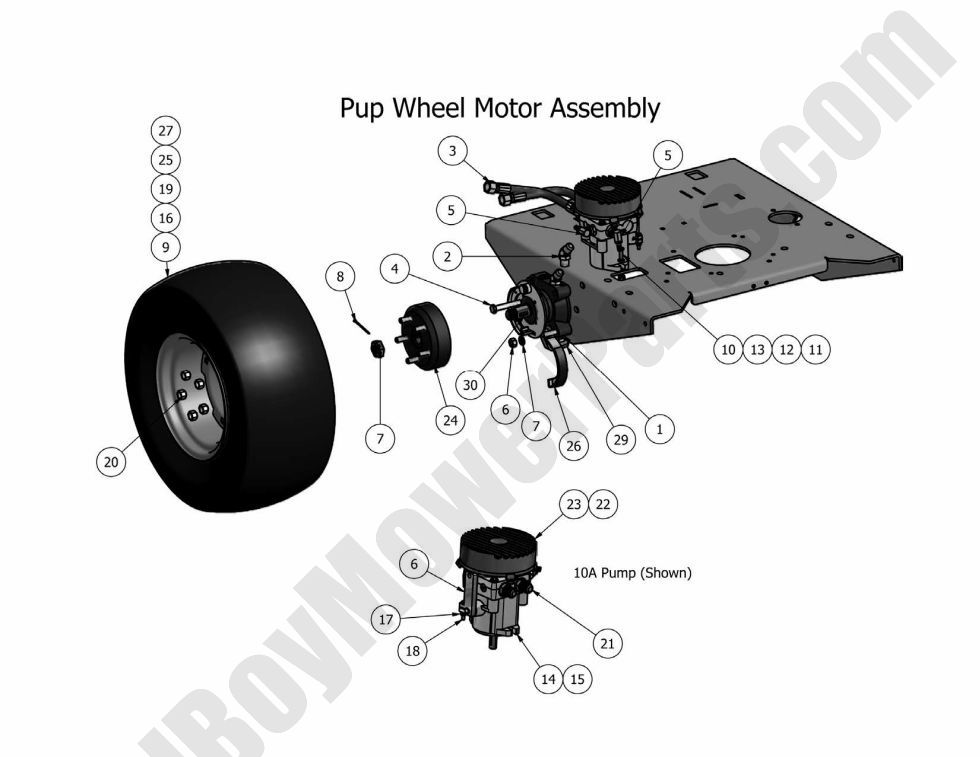

The Bad Boy Mower parts diagram for the 2010 Pup and Lightning Wheel Motor (Pup Models) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Pup and Lightning models. Find all of your Bad Boy mowers 2010 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Pup and Lightning Wheel Motor (Pup Models). If you are not able to find the Bad Boy parts for your 2010 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Pup and Lightning Wheel Motor (Pup Models)
  Position Number SKU Product Title Price
1 015-2004-98 015-2004-98 - Wheel Motor/Brake Combo-15E-Right
$962.99
2 024-0050-00 024-0050-00 - 45 Degree Fitting 31704-10-10
$31.17
3 051-6000-00 051-6000-00 - 16" Hydraulic Hose Only
$32.09
4 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
5 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
6 031-5333-00 031-5333-00 - XP/Pup/Lightning Pump Arm
$22.75
7 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
8 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
9 022-7061-00 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only)
$195.99
10 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
12 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
13 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
14 050-5302-00 050-5302-00 - Left Pump, 10cc - Pup Models
$855.99
15 050-5303-00 050-5303-00 - Right Pump, 10cc - Pup Models
$855.99
16 022-5349-00 022-5349-00 - 24 x 12 - 12 Tire Pro Maxxis (One Tire Only)
$246.99
17 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
18 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 GR 5 Hex Bolt
$2.99
19 022-5450-00 022-5450-00 - 24 x 12.00 - 12 Tire and Orange Wheel Assembly (One Tire & Rim Assembly)
$342.99
20 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
21 024-5343-00 024-5343-00 - Hydraulic Pump Fitting 6400-10 -8
$7.95
22 015-9999-00 015-9999-00 - Hydro Fan - Light/Pup/OutlawXP
$26.74
23 014-5500-00 014-5500-00 - Fan Guard 7"
$39.03
25 022-5352-00 022-5352-00 - 23x10.50-12 Wheel Assembly (One Tire & Rim Assembly)
$267.99
27 022-7062-00 022-7062-00 - 12 Orange Wheel - 48 and 52 Pu p Models
$113.62
29 031-0011-00 031-0011-00 - Brake Lever (wheel motor) Left
$21.40
30 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
