2012 ZT Actuator Bar Assembly

Actuator Bar Assembly

The Bad Boy Mower parts diagram for the 2012 ZT Actuator Bar Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 ZT models. Find all of your Bad Boy mowers 2012 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 ZT Actuator Bar Assembly. If you are not able to find the Bad Boy parts for your 2012 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 ZT Actuator Bar Assembly
  Position Number SKU Product Title Price
1 070-5400-00 070-5400-00 - 2011-2012 CZT, 2012 ZT Frame
$1390.99
2 079-3410-00 079-3410-00 - 2010-2012 ZT Floor Panel
$106.99
3 081-2010-00 081-2010-00 - 2010-2015 CZT & 2010-2013 ZT Floor Mat
$28.45
4 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
5 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
9 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 071-2010-00 071-2010-00 - Wise Seat - ZT - WM1976 OBSOLETE use 071-2040-00 (obsolete)
use part #071-2040-17
$599.99
13 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
14 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
15 017-7008-00 017-7008-00 - 1" Pillow Block Bearing
$21.29
17 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
18 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
20 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
22 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
24 035-7033-00 035-7033-00 - Actuator
$437.36
25 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
26 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
27 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
28 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
29 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
30 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
31 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
32 018-5007-00 018-5007-00 - 5/16-18 X 3/4 Button Head Sock et C/S 18-8 SS
$2.99
33 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F
$2.99

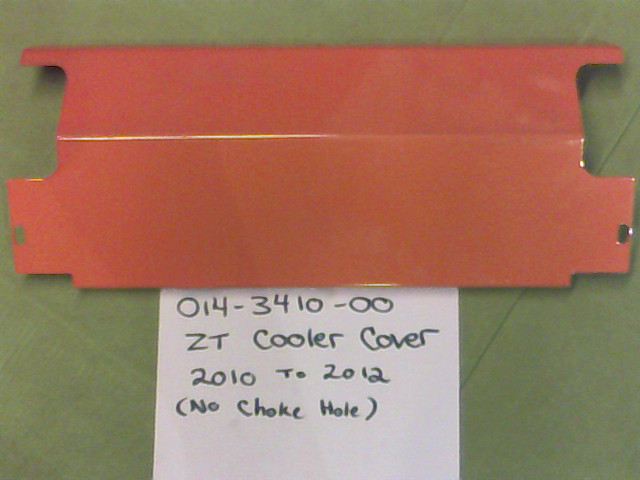

34 014-3410-00 014-3410-00 - 2010-2012 CZT/ZT Cooler Cover w/o Choke Hole
$92.29
35 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
36 034-8045-00 034-8045-00 - Seat Spring
$20.49
37 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
38 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
39 044-4000-00 044-4000-00 - Pin (See Models Used On)
$7.25
40 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
41 040-6060-00 040-6060-00 - Seat Latch Pin
$2.99
