2012 ZT Drive Arm Assembly

Drive Arm Assembly

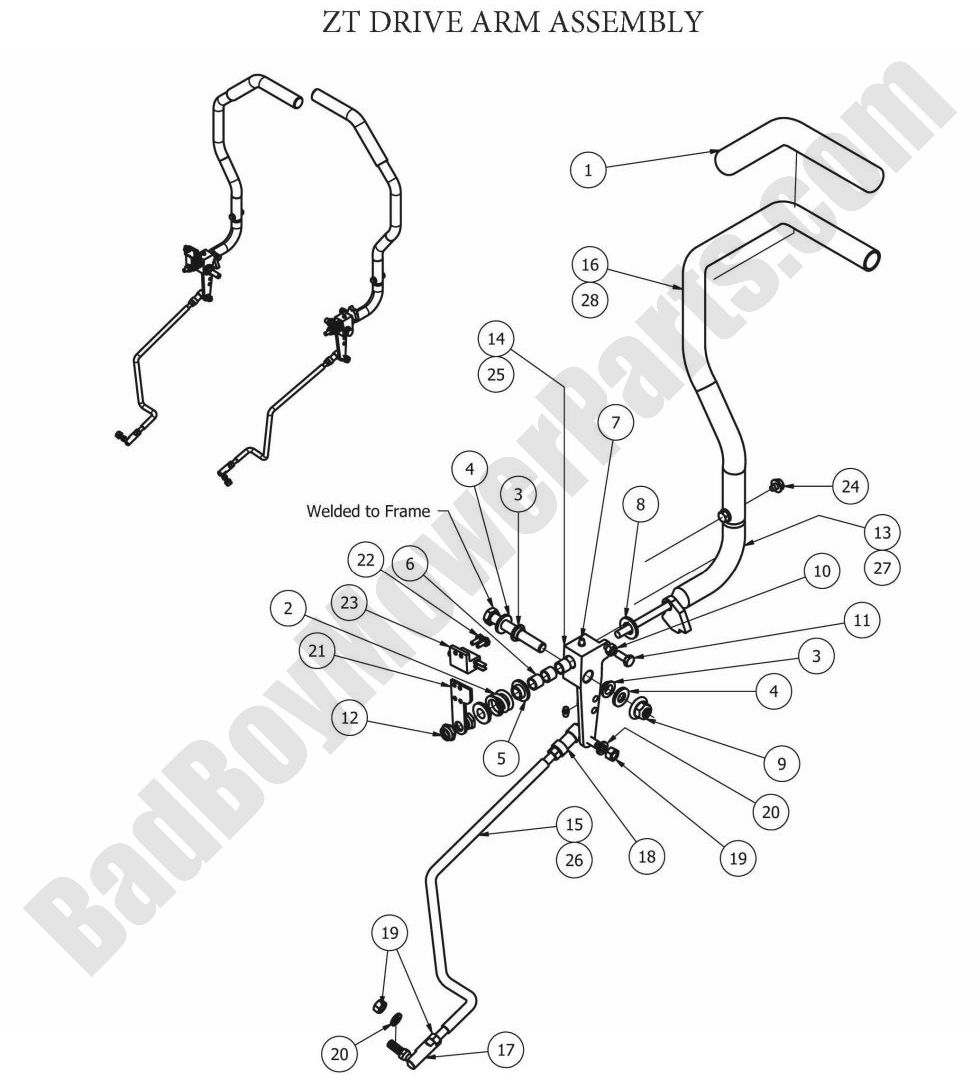

The Bad Boy Mower parts diagram for the 2012 ZT Drive Arm Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 ZT models. Find all of your Bad Boy mowers 2012 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 ZT Drive Arm Assembly. If you are not able to find the Bad Boy parts for your 2012 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 ZT Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
2 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
3 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41

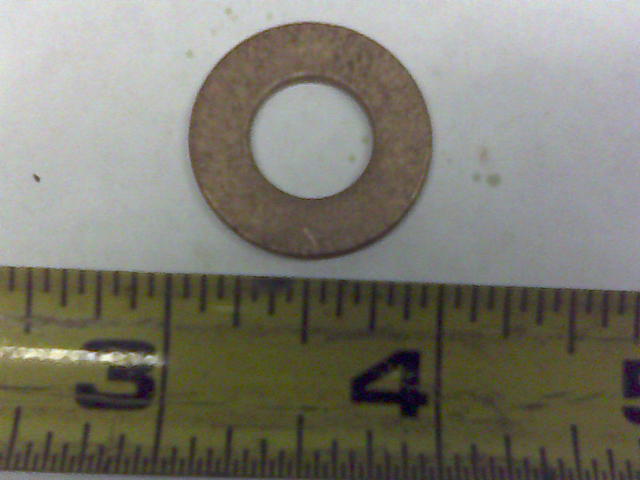

4 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Wa sher for 2012 Drive Arm Blocks
$4.83
5 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
6 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
7 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
8 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
10 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
11 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
12 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99

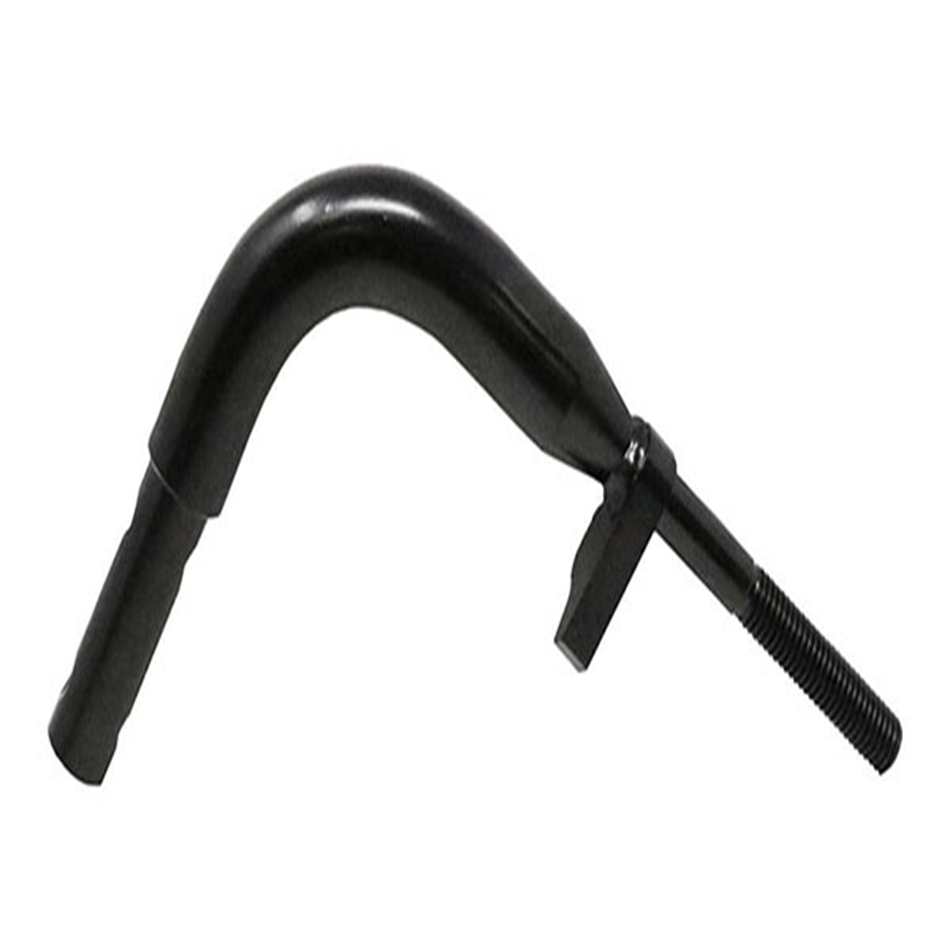

13 031-9020-00 031-9020-00 - Left Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
14 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
15 035-5400-00 035-5400-00 - 2007-2012 CZT/ZT Right Steering Push Rod
$30.87
16 031-8850-98 031-8850-98 - OBSOLETE USE Part # 031-8850-70 Left Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8850-70
$93.64

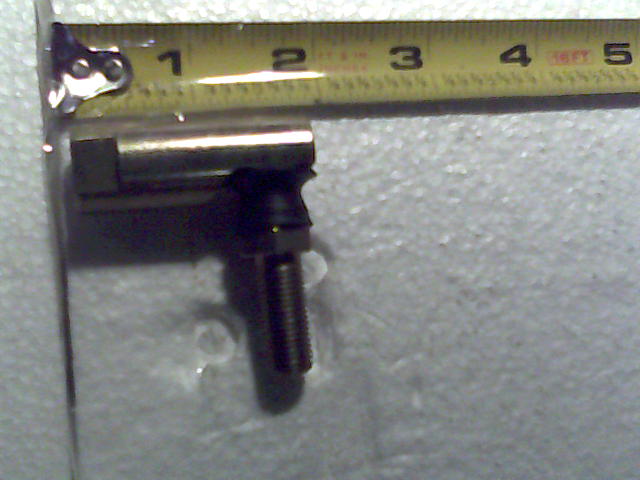

17 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
18 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
19 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
20 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
22 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch-ZT
$2.99
23 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
24 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt-Steerin g Arms
$2.99

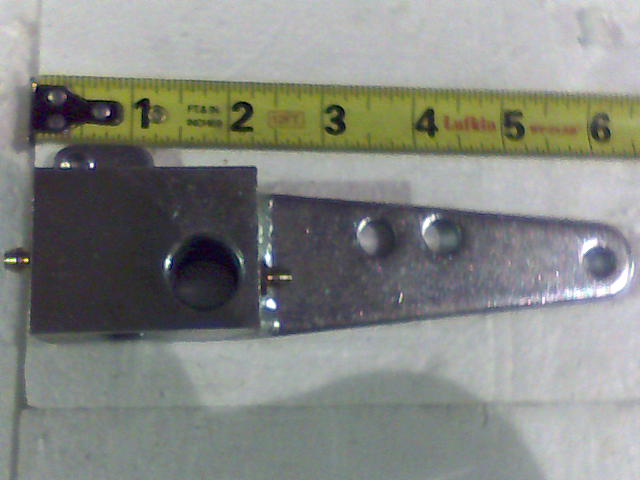

25 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
26 035-5401-00 035-5401-00 - 2007-2012 CZT/ZT Left Steering Push Rod
$30.87

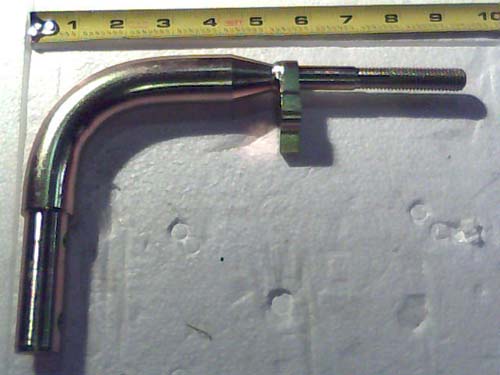

27 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-9025-70
$85.17
28 031-8851-98 031-8851-98 - OBSOLETE USE Part # 031-8851-70 Right Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8851-70
$93.64
