2012 ZT Fuel Tanks

Fuel Tanks

The Bad Boy Mower parts diagram for the 2012 ZT Fuel Tanks is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 ZT models. Find all of your Bad Boy mowers 2012 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 ZT Fuel Tanks. If you are not able to find the Bad Boy parts for your 2012 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

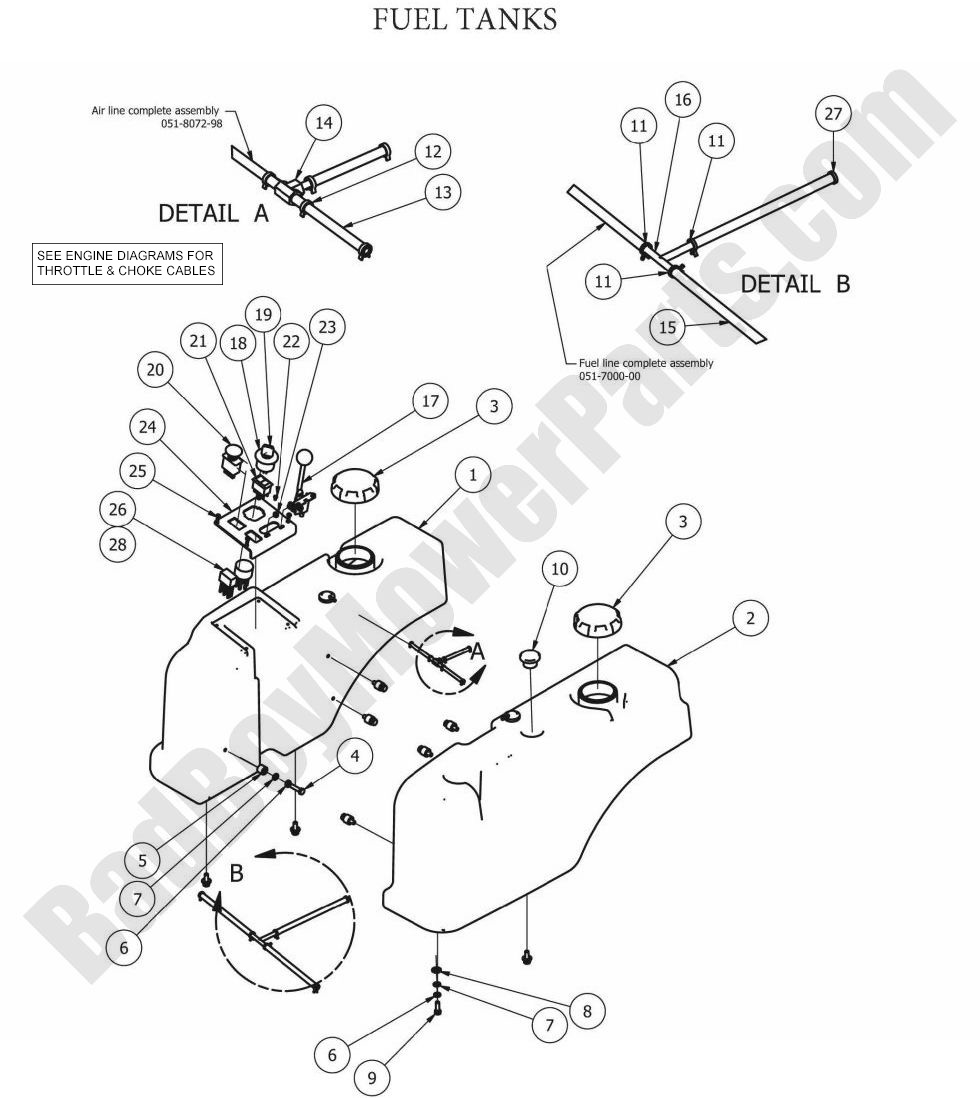

2012 ZT Fuel Tanks
  Position Number SKU Product Title Price
1 067-7000-50 067-7000-50 - 2008-2012 Right Fuel Tank/ZT
$352.99
2 067-7001-50 067-7001-50 - 2008-2012 Left Fuel Tank/ZT
$385.99
3 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
4 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
5 025-2000-00 025-2000-00 -.380x.735x.470 Nylon Spacer
$2.99
6 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
7 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
8 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
9 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
10 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
11 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
12 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
13 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
14 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
15 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
16 073-8068-00 073-8068-00 - Fuel Line T
$9.70
17 055-8020-00 055-8020-00 - Throttle-53" (See Models Used On For Details)
$38.97
18 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
19 042-9000-00 042-9000-00 - Ignition Key
$4.06
20 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
21 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
22 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
23 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
24 079-3400-00 079-3400-00 - 2011-2012 CZT/ZT Control Panel With round hole for toggle
$31.55
25 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
26 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$388.88
27 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
28 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
