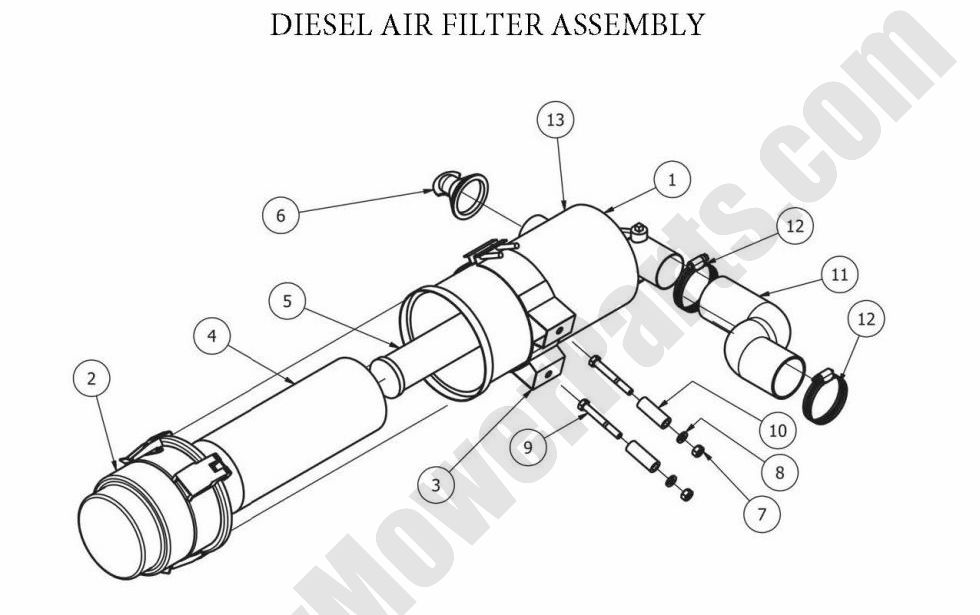

The Bad Boy Mower parts diagram for the 2013 Diesels Air Filter Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Diesels models. Find all of your Bad Boy mowers 2013 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Diesels Air Filter Assembly. If you are not able to find the Bad Boy parts for your 2013 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 088-1018-00 | 088-1018-00 - Canister forAll Diesel Air |
$85.17
|
||
2 | 088-1017-00 | 088-1017-00 - Enginaire air canister cap |
$64.19
|
||
3 | 088-1019-00 | 088-1019-00 - Mounting Bracket for Diesel Ai |
$32.09
|
||
4 | 063-2050-00 | 063-2050-00 - Diesel Air Filter - Outer |
$46.78
|
||
5 | 063-2060-00 | 063-2060-00 - Diesel Air Filter - Inner |
$42.58
|
||
6 | 088-1020-00 | 088-1020-00 - Debris Plug-Enginaire Filter |
$14.19
|
||
7 | 013-8043-00 | 013-8043-00 - 5/16-18 Hex Nuts Zinc |
$2.99
|
||
8 | 019-8051-00 | 019-8051-00 - 5/16 Lockwashwer Zinc |
$2.99
|
||
9 | 018-5344-00 | 018-5344-00 - 5/16 x 2 1/2 Bolt |
$2.99
|
||
10 | 025-8000-00 | 025-8000-00 -.378x.625x1.750 Spacer Zinc |
$4.81
|
||
11 | 051-3002-00 | 051-3002-00 - Air Intake Hose-Diesel Air Filter Canister |
$27.43
|
||
12 | 072-2002-00 | 072-2002-00 - 2-1/2 Hose Clamp |
$11.34
|
||
13 | 088-1010-50 | 088-1010-50 - Enginaire Canister VLR-Complete Diesel Models |
$211.55
|
