2013 Diesels Fuel Tank

Fuel Tank

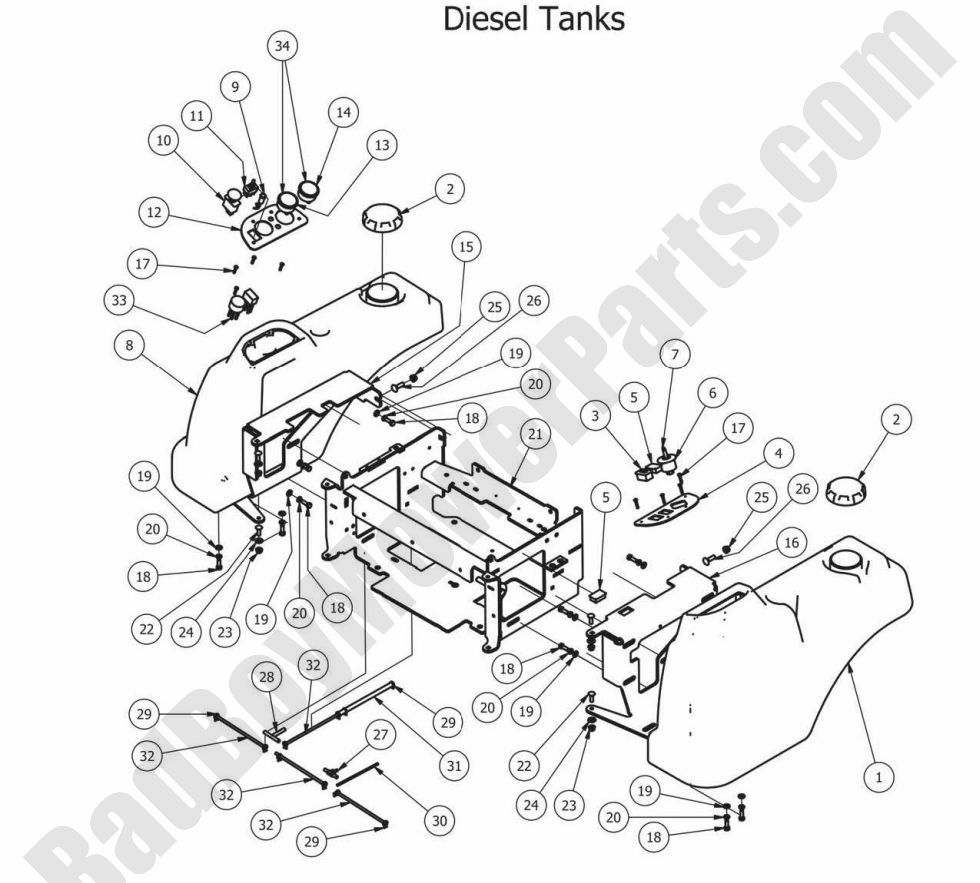

The Bad Boy Mower parts diagram for the 2013 Diesels Fuel Tank is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Diesels models. Find all of your Bad Boy mowers 2013 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Diesels Fuel Tank. If you are not able to find the Bad Boy parts for your 2013 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Diesels Fuel Tank
  Position Number SKU Product Title Price
1A 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
1 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$229.99
2 066-8090-00 066-8090-00 - Diesel Fuel Cap-3.5 inch Neck
$39.86
3 083-4014-00 083-4014-00 - Hourmeter
$62.40
4 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
5 018-1040-00 018-1040-00 - Light Plug
$2.99
6 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
7 042-9000-00 042-9000-00 - Ignition Key
$4.06
8 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$229.99
9 089-1000-00 089-1000-00 - Oil Light
$12.63
10 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
11 078-8077-00 078-8077-00 - Joystick - Deck Lift
$34.29
12 079-3405-00 079-3405-00 - Right Diesel Control Panel(See Models Used On For Details)
$17.11
13 086-7001-00 086-7001-00 - 2" Water Temperature Gauge, 2012-2019 Diesel Units
$107.76
14 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge
$107.76
15 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91
16 031-2011-00 031-2011-00 - 72 Tank Support- Right
$59.91
17 018-2015-00 018-2015-00 - 10-32 x 1 Button Head Bolt
$2.99
18 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
19 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
20 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
21 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$427.99
22 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
24 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
25 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
26 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
27 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
28 073-8068-00 073-8068-00 - Fuel Line T
$9.70
29 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
30 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
31 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$4.81
32 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
33 086-0035-00 086-0035-00 - Harness-28/35 Diesel w/Plastic Tank
$495.52
34 086-7002-00 086-7002-00 - Pigtail-2" Faria Gauge-2012
$28.32
