2017 Walk Behind Frame Assembly

Frame Assembly

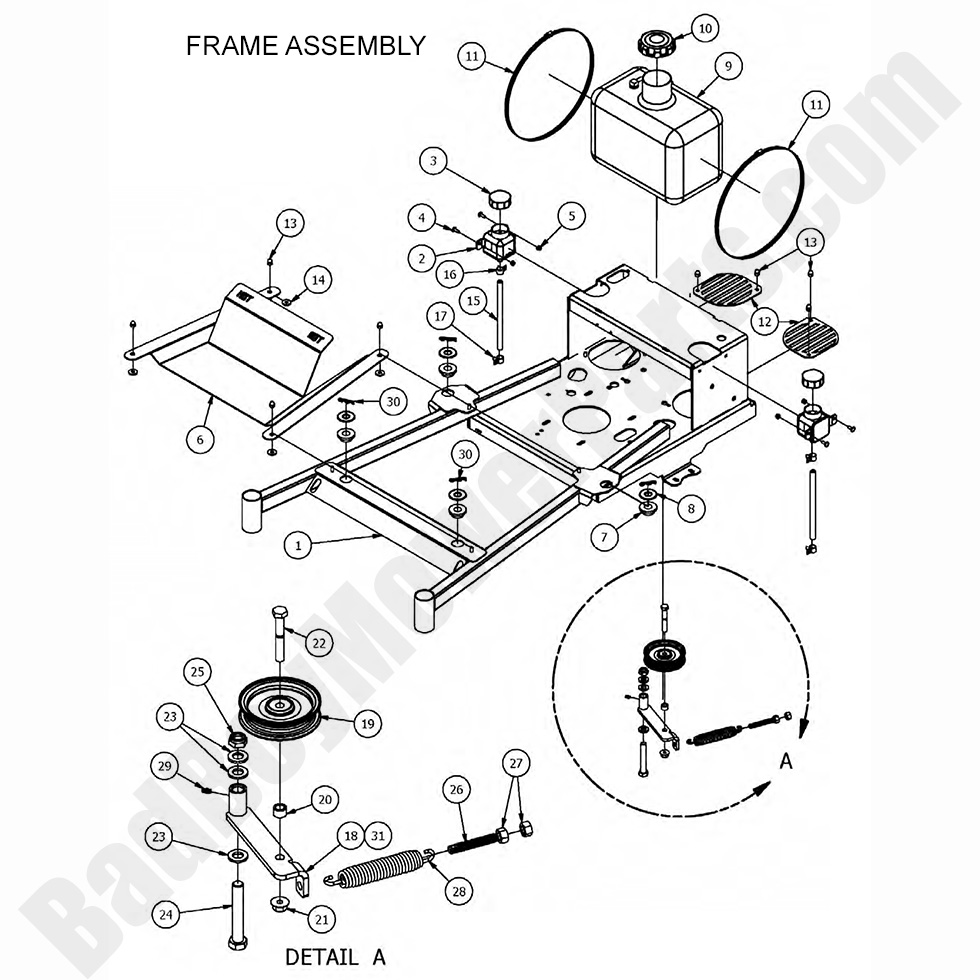

The Bad Boy Mower Frame Assembly for the 2017 Walkbehind is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Walkbehind models as well. Find all of your Bad Boy mowers 2017 Walkbehind parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Walkbehind please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Walk Behind Frame Assembly
  Position Number SKU Product Title Price
1 070-5100-00 070-5100-00 - 2017-2018 Walk Behind Frame Welded Assembly
$1283.99
2 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
3 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
4 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
5 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
6 014-3590-00 014-3590-00 - Walk Behind Cover
$32.09
7 025-0031-00 025-0031-00 - Deck Hanger Insert (Walk Behind)
$10.21
9 067-0003-00 067-0003-00 - 2017-2022 Walk Behind Black Fuel Tank
$321.99
10 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
11 072-0050-00 072-0050-00 - Fuel Tank Clamp - Stand On & Walk Behind
$8.01
12 014-3580-00 014-3580-00 - Walk Behind Bolt On Fan Cover
$10.99
13 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
14 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
15 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
16 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
17 072-8066-00 072-8066-00 - 1/2 Hose Clamp
$2.99
18 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
19 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
20 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
21 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
23 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
24 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
25 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
26 018-2004-50 018-2004-50 -2017-2022 All Thread (See Models Used On)
$12.94
27 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
28 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
29 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
30 040-6060-00 040-6060-00 - Seat Latch Pin
$2.99
31 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
