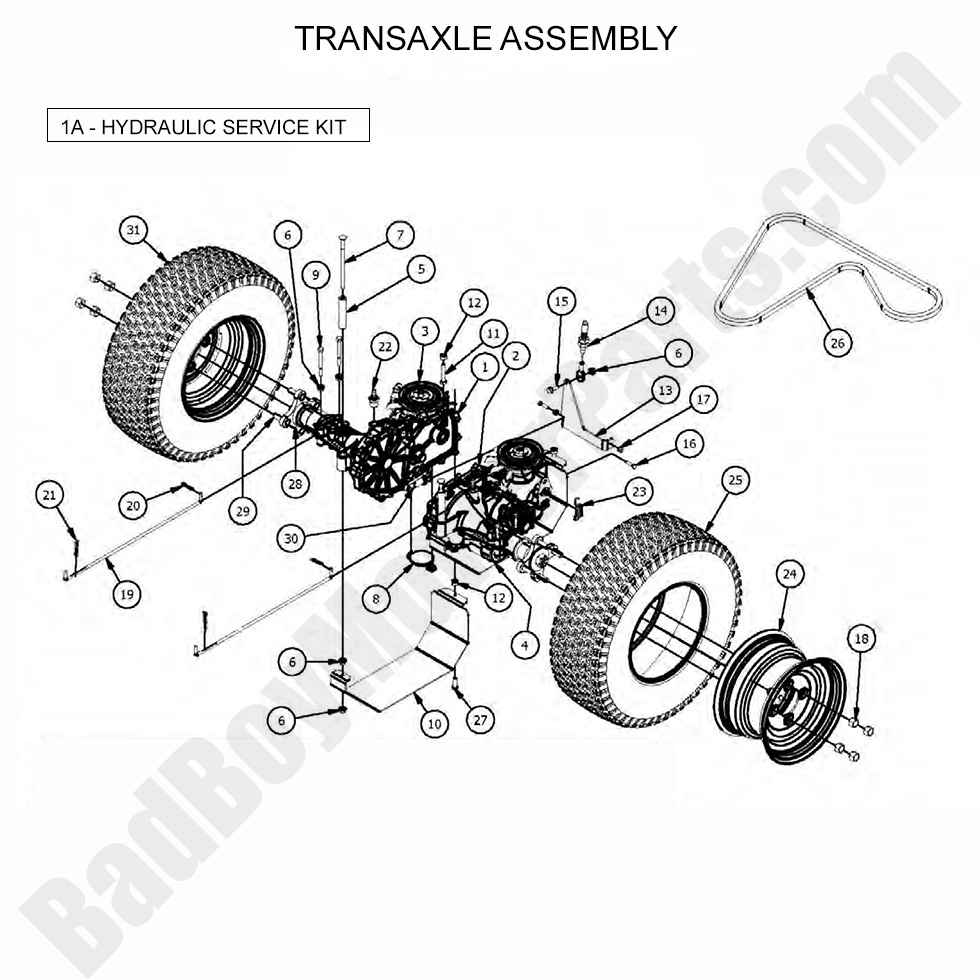

2017 Walk Behind Transaxle Assembly

Transaxle Assembly

The Bad Boy Mower Transaxle Assembly for the 2017 Walkbehind is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Walkbehind models as well. Find all of your Bad Boy mowers 2017 Walkbehind parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Walkbehind please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Walk Behind Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 050-0003-00 050-0003-00 - 2017-2018 Walk Behind Transaxle Right 3100
$588.49
2 050-0004-00 050-0004-00 - 2017-2021 Walk Behind Transaxle Left 3100
$588.49
3 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
4 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
5 025-0070-00 025-0070-00 - 2017-2022 Transaxle Spacer
$6.41
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt-Grade 5
$2.99

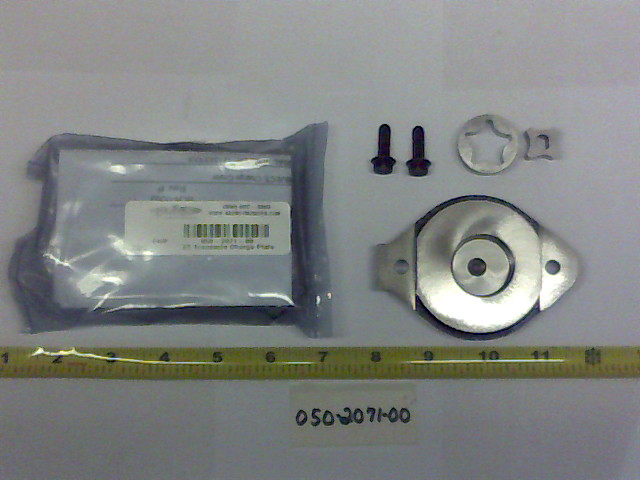

8 050-2071-00 050-2071-00 - ZT Transaxle Charge Plate
$90.94
9 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99

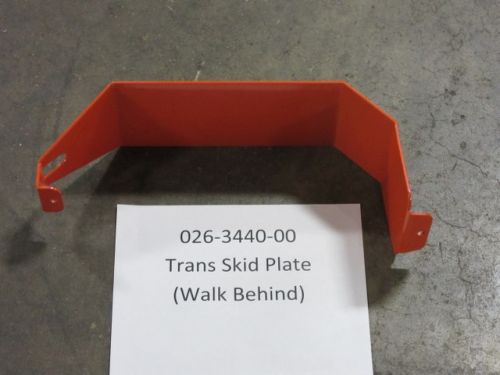

10 026-3440-00 026-3440-00 - Walk Behind Trans Skid Plate
$53.49
11 018-3000-00 018-3000-00 - 3/8-16 X 2 GR 5 Hex Bolts Zinc
$2.99
12 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
13 039-1917-00 039-1917-00 - Walk Behind Brake Pull Bracket
$10.99

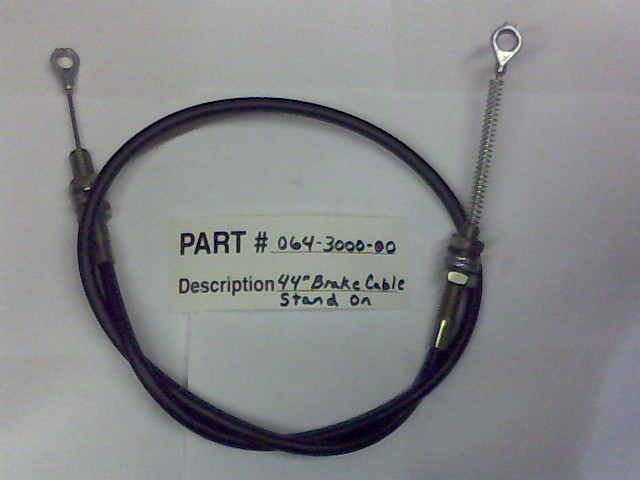

14 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
15 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
16 018-4007-00 018-4007-00 - 1/4-20 X 1 GR 5 Hex Bolts Zinc
$2.99
17 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
18 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
19 028-0070-00 028-0070-00 - Neutral Rod (See Models Used On For Detail)
$12.48
20 044-2004-00 044-2004-00 - Bow Pin
$2.99
21 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
22 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93

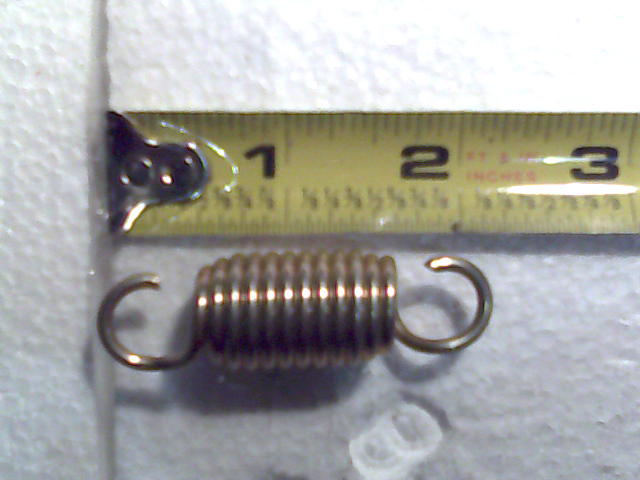

23 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89

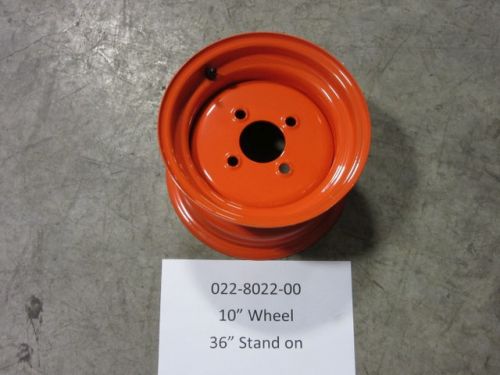

24 022-8022-00 022-8022-00 - 10" Wheel Only-36" Stand On & Walk Behind
$73.83
25 022-8023-00 022-8023-00 - - Walk Behind 36" Tire Only 21 X 7-10 Kenda K 500 Model
$128.99
26 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
27 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
28 050-2076-00 050-2076-00 - ZT Transaxle Wheel Hub
$90.56
29 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61

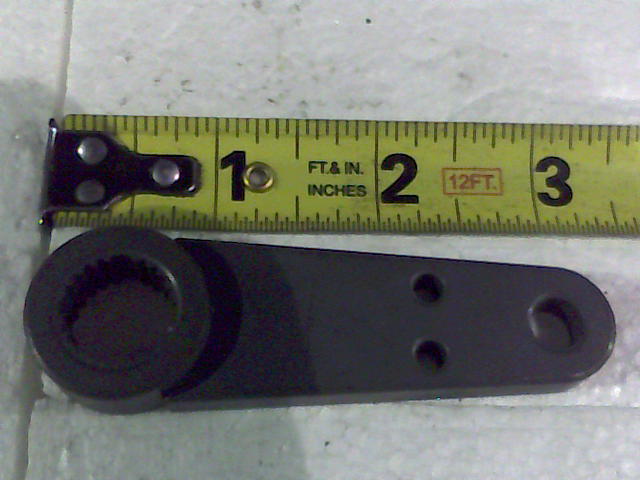

30 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28

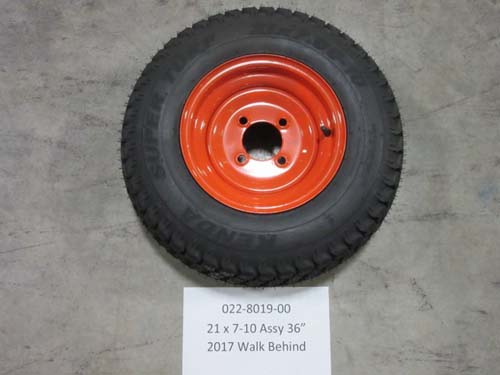

31 022-8019-00 022-8019-00 - 21x7-10 Assy-36" 2017 Walk Behind
$183.99
