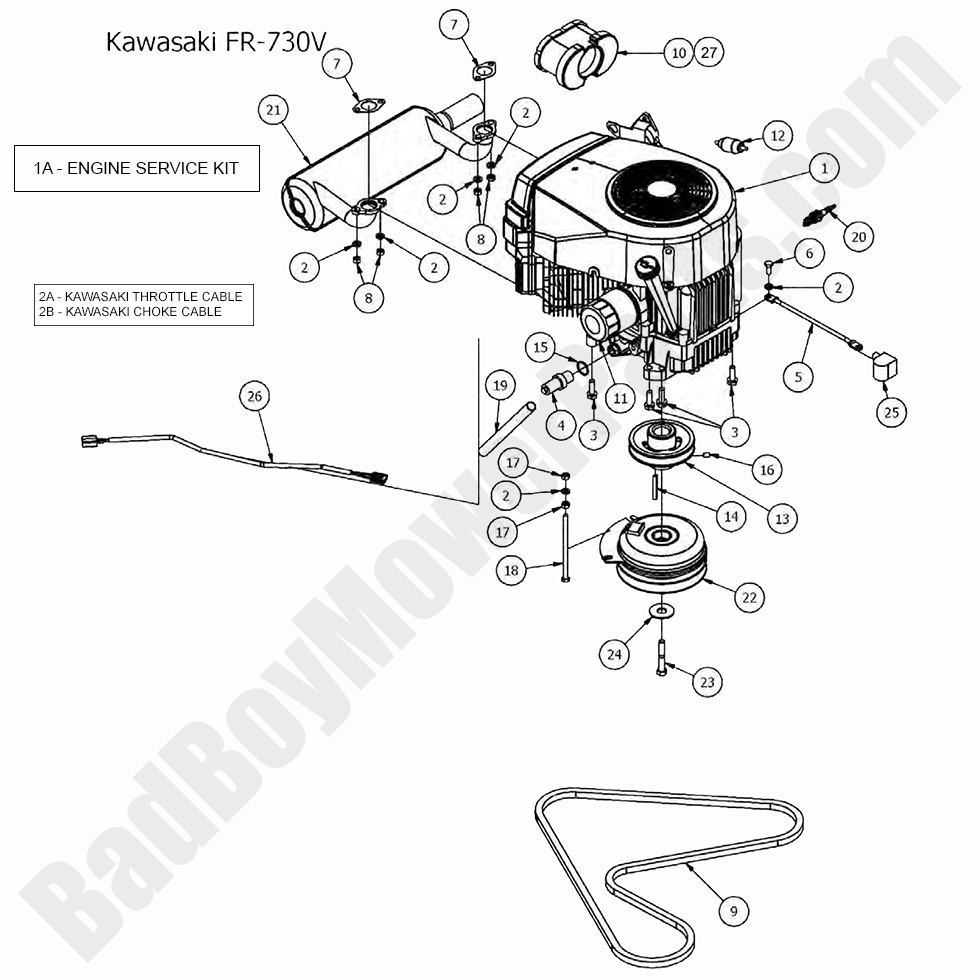

2017 ZT Elite Engine - Kawasaki FR-730V

Engine - Kawasaki FR-730V

The Bad Boy Mower Engine - Kawasaki FR-730V for the 2017 ZT Elite is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 ZT Elite models as well. Find all of your Bad Boy mowers 2017 ZT Elite parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 ZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 ZT Elite Engine - Kawasaki FR-730V
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 015-0090-00 015-0090-00 - FR730V-S16 Kawasaki Engine 1.125" Shaft for ZT
$2460.99
2 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
3 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
4 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$28.11
5 064-0030-00 064-0030-00 - 24 inch Black Cable
$18.72
6 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
7 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
8 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
9 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
10 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
11 063-2096-00 063-2096-00 - Oil Filter Kawasaki FR/FS/FX691/FX730/FX751
$18.18
12 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
13 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
14 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
15 015-5403-00 015-5403-00 - O Ring for Oil Drain - Kawasak
$7.28
16 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
17 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
18 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
19 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
20 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
21 015-0052-00 015-0052-00 - 2017-2022 Kawasaki Exhaust MZ/ZT/Mav/Comp
$232.70
22 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$390.38
23 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
24 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
25 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
26 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
27 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
