2017 ZT Elite Frame & Deck Lift

Frame & Deck Lift

The Bad Boy Mower Frame & Deck Lift for the 2017 ZT Elite is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 ZT Elite models as well. Find all of your Bad Boy mowers 2017 ZT Elite parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 ZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

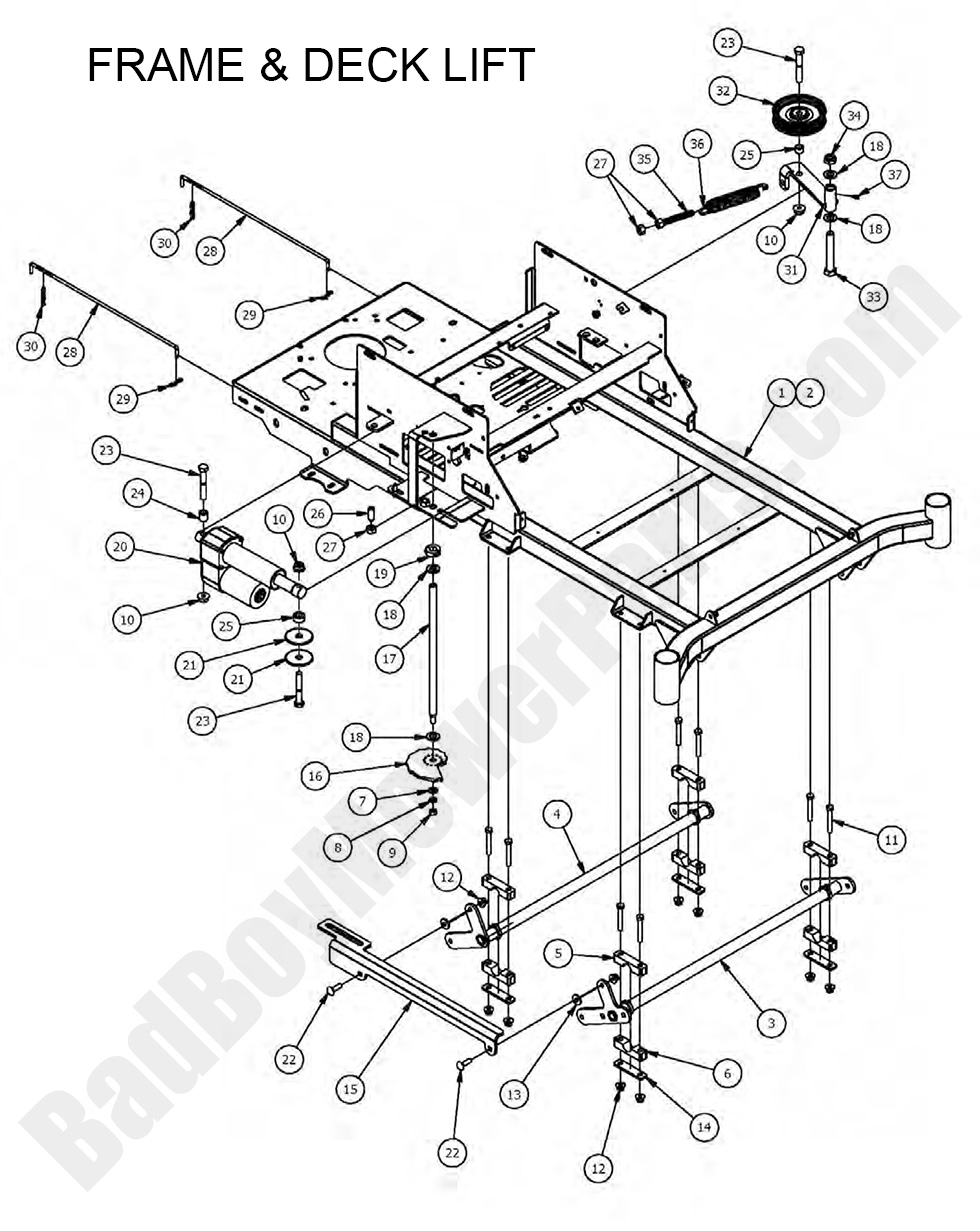

2017 ZT Elite Frame & Deck Lift
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1283.99
2 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1283.99
3 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
4 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
5 017-9078-00 017-9078-00 - Pillow Block-Female
$21.28
6A 017-9076-00 017-9076-00 - Pillow Block Assembly (See Models Used On For Details)
$23.41
6 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
7 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
8 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
9 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
10 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
11 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
12 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
14 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
15 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
16 026-1100-00 026-1100-00 - 2017-2022 CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55

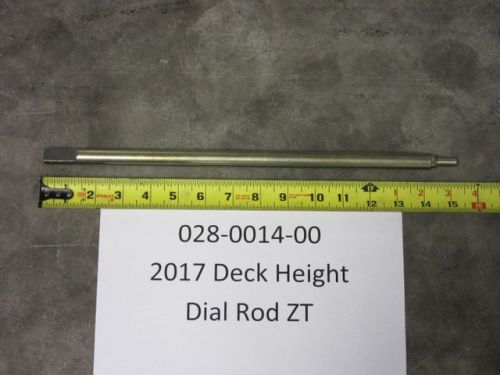

17 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
18 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
19 025-0002-00 025-0002-00 -Two-Piece Split Collar (See Models Used On For Details)
$10.91
20 035-7033-00 035-7033-00 - Actuator
$437.36
21 032-4051-00 032-4051-00 - Snubbing Washer-032-4050-00
$17.02
22 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
23 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
24 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
25 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
26 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
27 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
28 028-0070-00 028-0070-00 - Neutral Rod (See Models Used On For Detail)
$12.48
29 044-2004-00 044-2004-00 - Bow Pin
$2.99
30 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
31 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
32 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
33 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
34 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
35 018-2004-50 018-2004-50 -2017-2022 All Thread (See Models Used On)
$12.94
36 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
37 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
