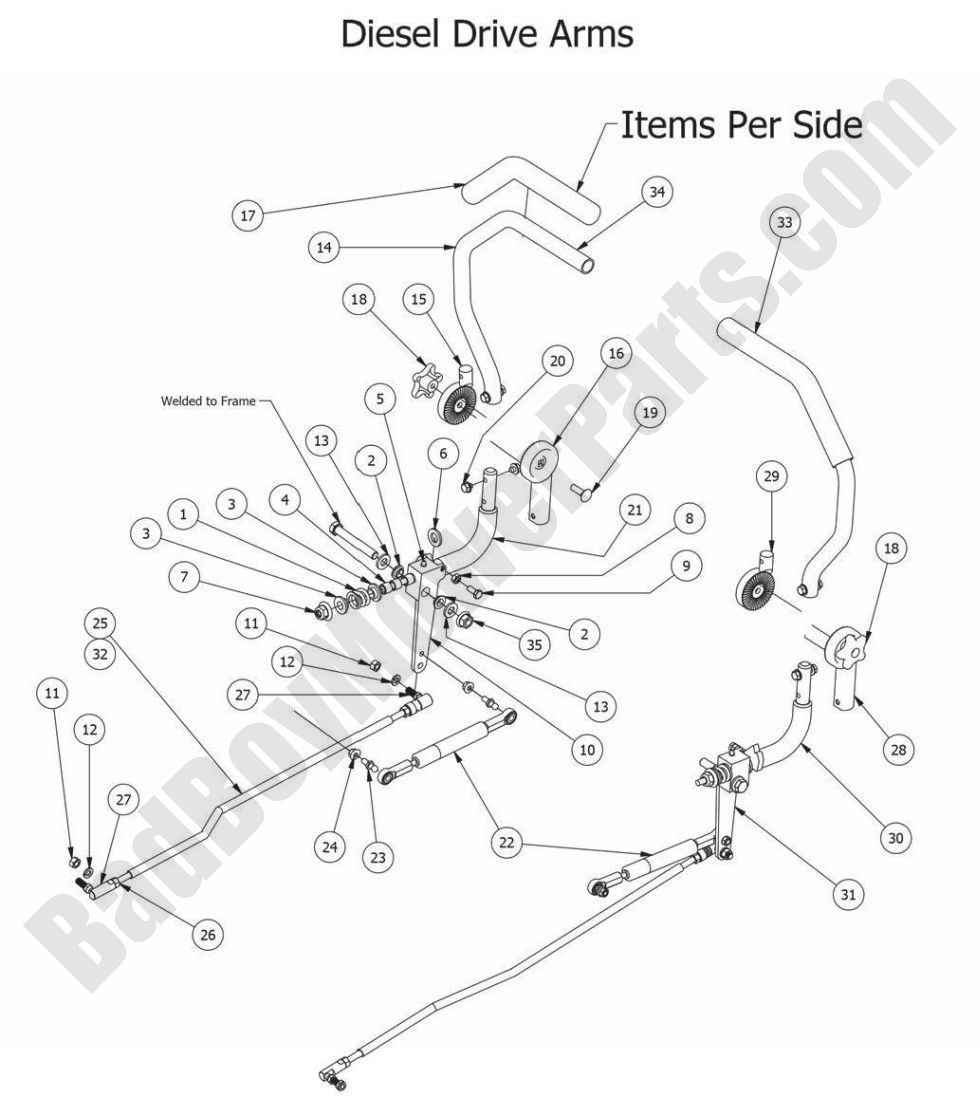

2014 Diesels Drive Arm Assembly

Drive Arm Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 Diesels models. Find all of your Bad Boy mowers 2014 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Diesels Drive Arm Assembly. If you are not able to find the Bad Boy parts for your 2014 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2014 Diesels Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
10 027-8819-00 027-8819-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing (left)
$46.84
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
13 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Wa sher for 2012 Drive Arm Blocks
$4.83
14 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
15 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
16 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
17 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
18 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$4.39
19 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
20 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt-Steerin g Arms
$2.99
21 031-9020-00 031-9020-00 - Left Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
22 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socke Stabilus 000214
$56.72
23 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 035-6060-00 035-6060-00 - Steering Push Rod (See Models Used On For Details)
$35.67
27 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
28 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
29 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
30 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-9025-70
$85.17
31 027-8820-00 027-8820-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing Right
$46.84
32 035-6050-00 035-6050-00 - 35HP Cat Diesel Steering Push Rod
$40.61
35 013-0085-00 013-0085-00 - 1/2-13 HEX FLANGE (GR.G) ZC
$2.99
