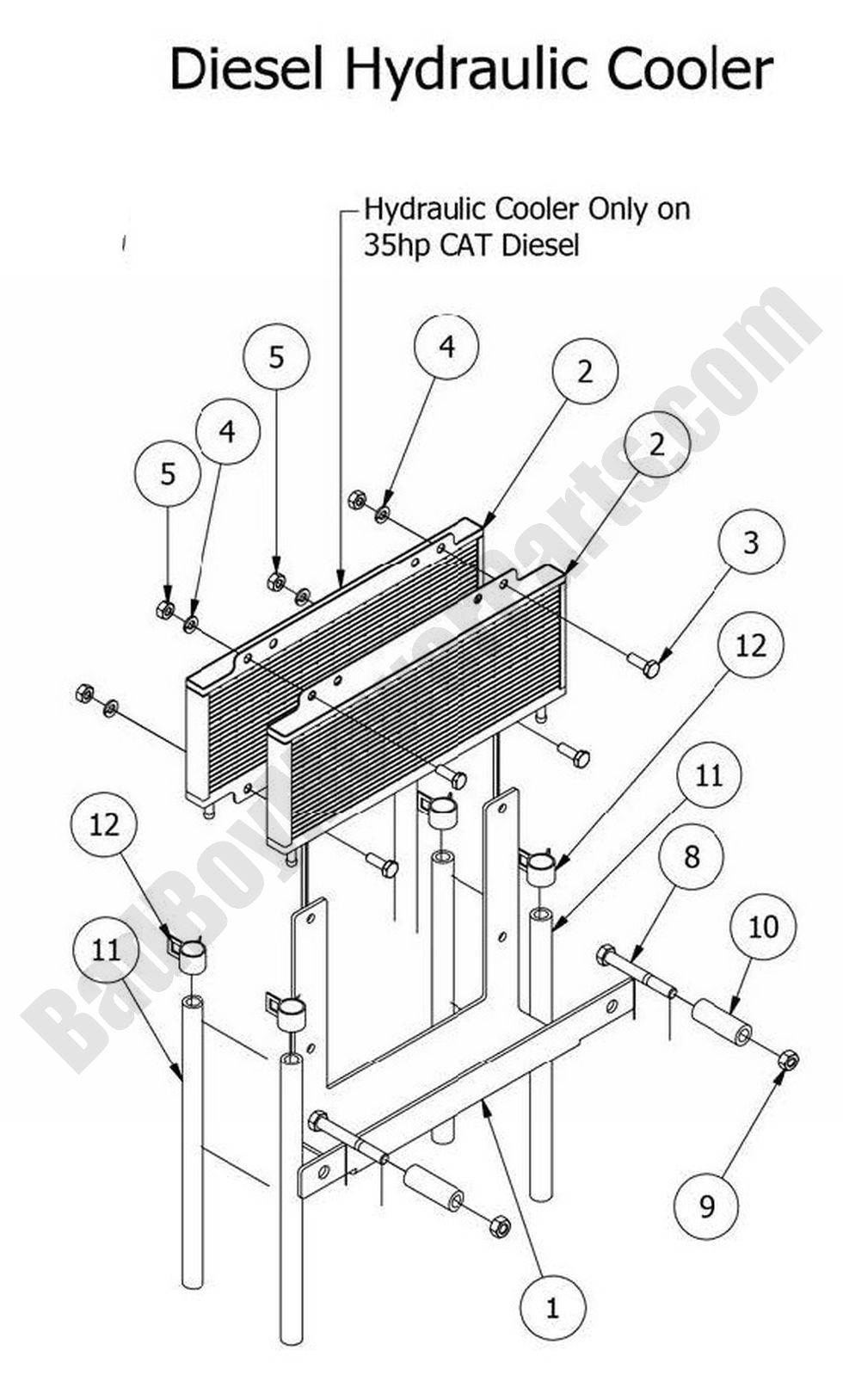

BadBoyMowerParts.com has the parts diagrams for the 2014 Diesels models. Find all of your Bad Boy mowers 2014 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Diesels Hydraulic Cooler. If you are not able to find the Bad Boy parts for your 2014 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 057-5950-00 | 057-5950-00 - 2007-2017 Hydraulic Cooler Holder Diesel and AOS Models |
$34.97
|
||
2 | 061-8012-00 | 061-8012-00 - Hydraulic Cooler-Diesel Models |
$76.53
|
||
3 | 018-8052-00 | 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts |
$2.99
|
||
4 | 019-4008-00 | 019-4008-00 - 1/4 Lockwasher Zinc |
$2.99
|
||
5 | 013-8039-00 | 013-8039-00 - 1/4-20 Hex Nuts Zinc |
$2.99
|
||
8 | 018-5344-00 | 018-5344-00 - 5/16 x 2 1/2 Bolt |
$2.99
|
||
9 | 013-8043-00 | 013-8043-00 - 5/16-18 Hex Nuts Zinc |
$2.99
|
||
10 | 025-8000-00 | 025-8000-00 -.378x.625x1.750 Spacer Zinc |
$4.81
|
||
11 | 051-8063-00 | 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT |
$2.99
|
||
12 | 072-8065-00 | 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS |
$2.99
|
