2011 CZT Engine - 23Hp Briggs

Engine - 23Hp Briggs

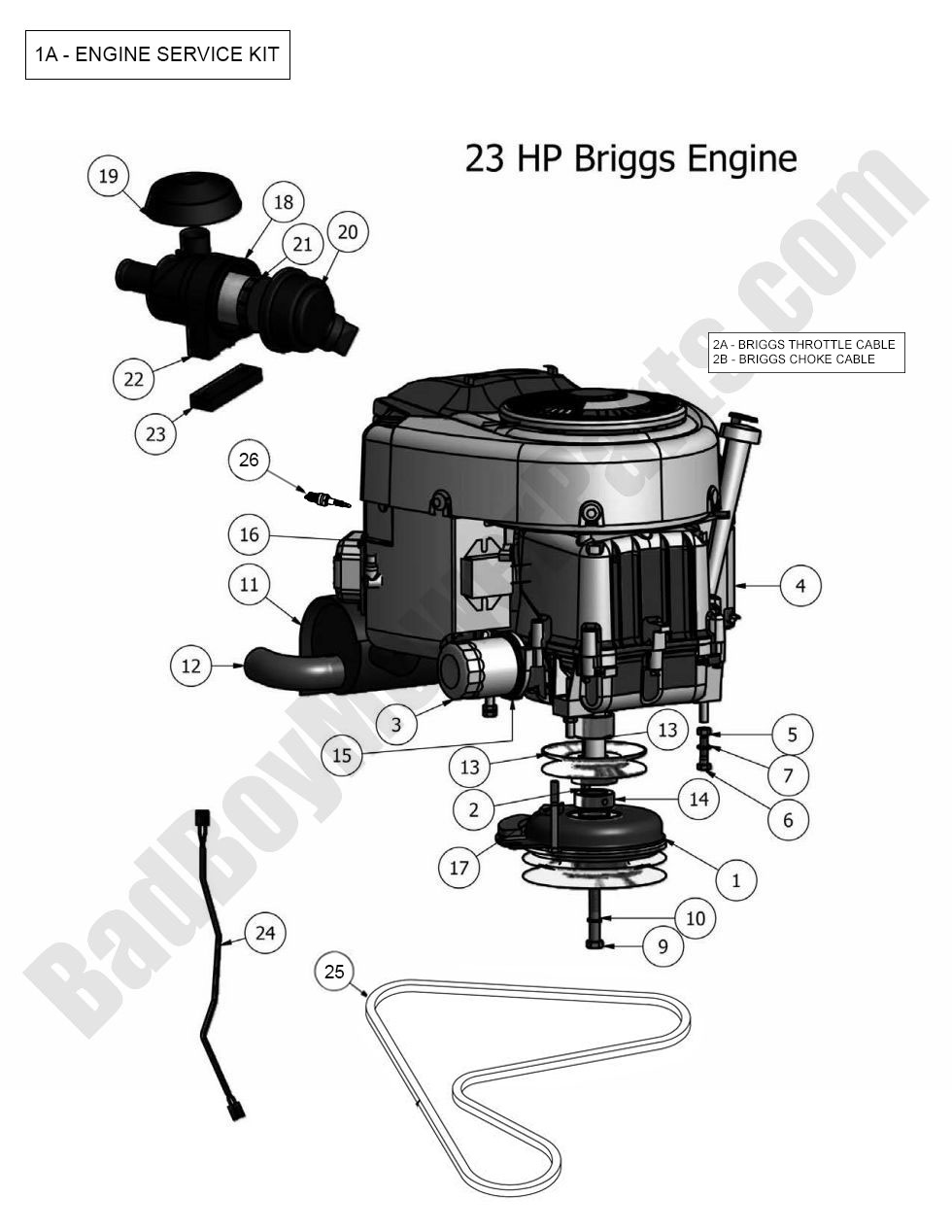

The Bad Boy Mower parts diagram for the 2011 CZT Engine (23Hp Briggs) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 CZT models. Find all of your Bad Boy mowers 2011 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 CZT Engine (23Hp Briggs). If you are not able to find the Bad Boy parts for your 2011 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 CZT Engine - 23Hp Briggs
  Position Number SKU Product Title Price
1A 063-2000-03 063-2000-03 - Briggs Vanguard 23hp Service Kit
$189.64
1 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
2 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
3 063-8018-00 063-8018-00 - Oil Filter
$21.39
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
11 015-0033-00 015-0033-00 - Exhaust - 23hp Vanguard Engine
$220.06

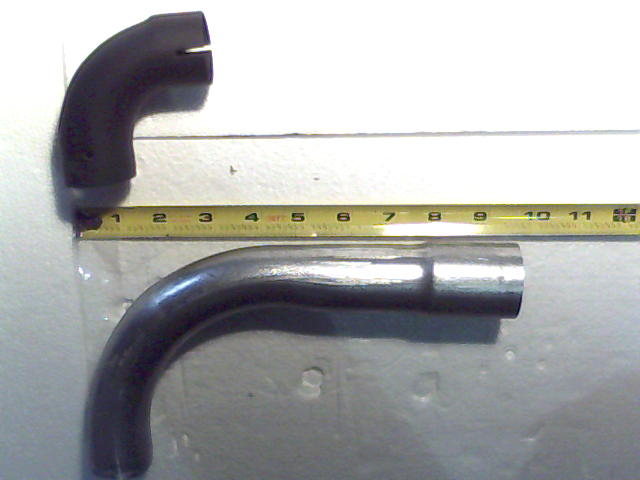

12 015-5400-00 015-5400-00 - Exhaust Extension
$21.28

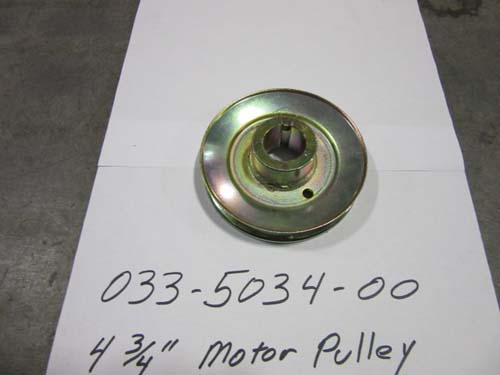

13 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48

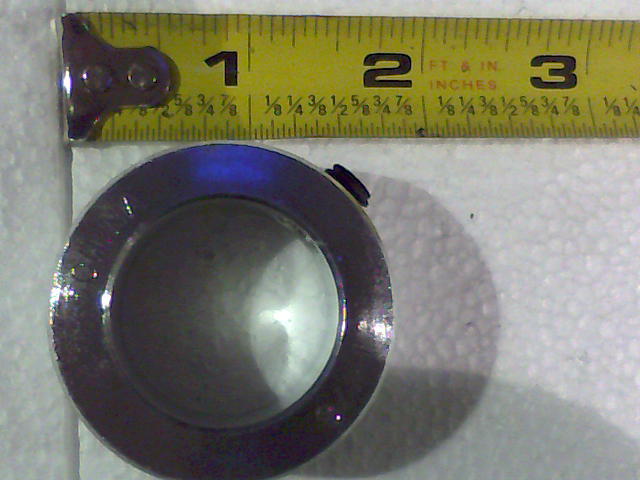

14 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$6.51

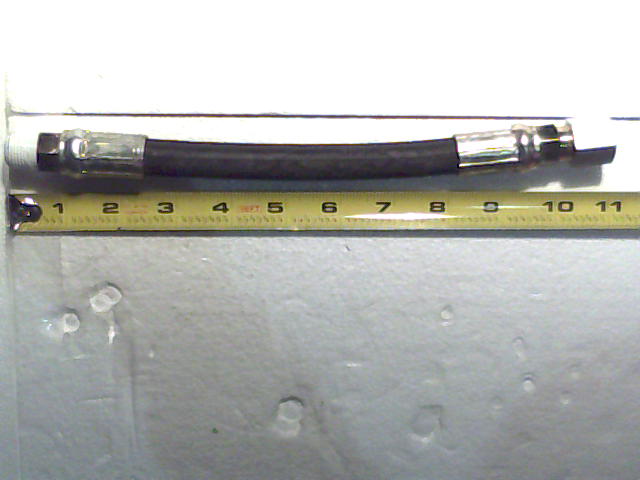

15 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
16 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
17 018-1010-00 018-1010-00 - 3/8-16x3-1/2 Grade 5 Hex Bolt
$2.99

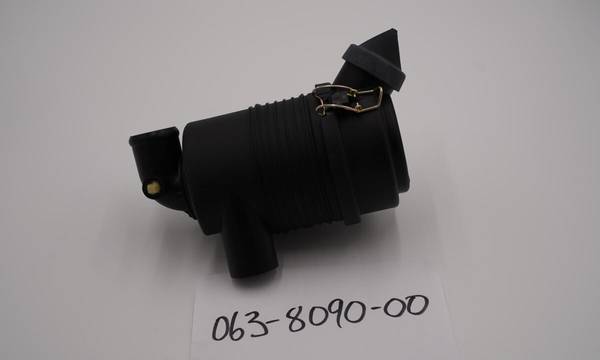

18 063-8090-00 063-8090-00 - Complete Air Canister-23 Brigg
$267.49

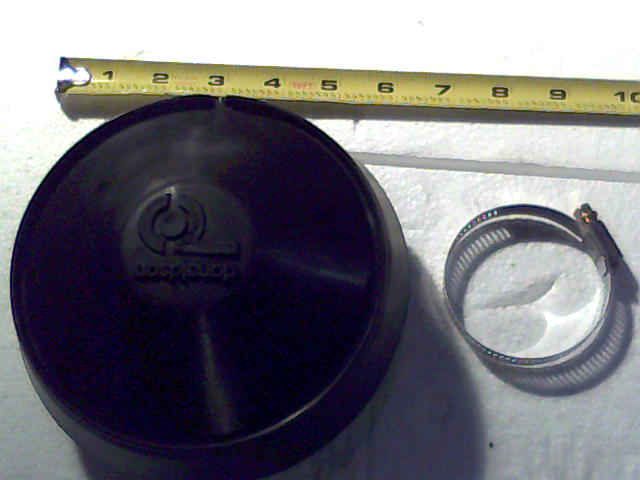

19 088-1065-00 088-1065-00 - 23hp Vanguard Rain Cap
$74.89

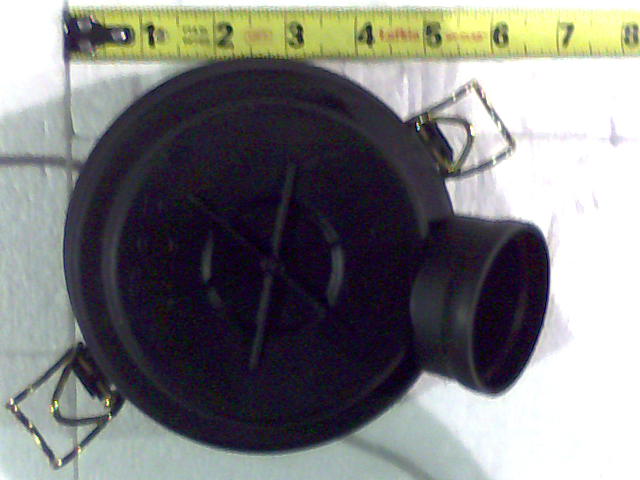

20 088-1060-00 088-1060-00 - Canister Filter Cover-23 Brigg
$106.99
21 063-8050-00 063-8050-00 - Canister Air Filter-23 Vanguar
$48.14

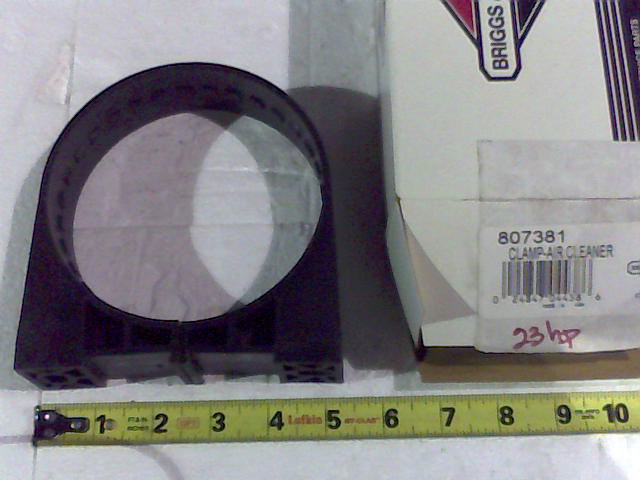

22 063-8091-00 063-8091-00 - Air Canister Bracket-23 Briggs
$85.59

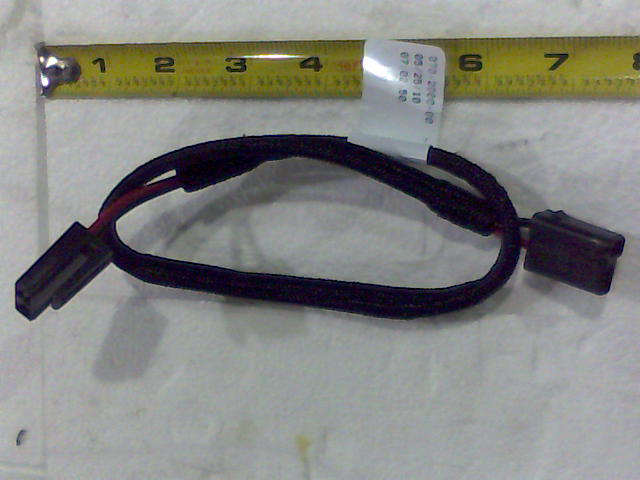

24 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
25 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
26 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
