2011 CZT Transaxle

Transaxle

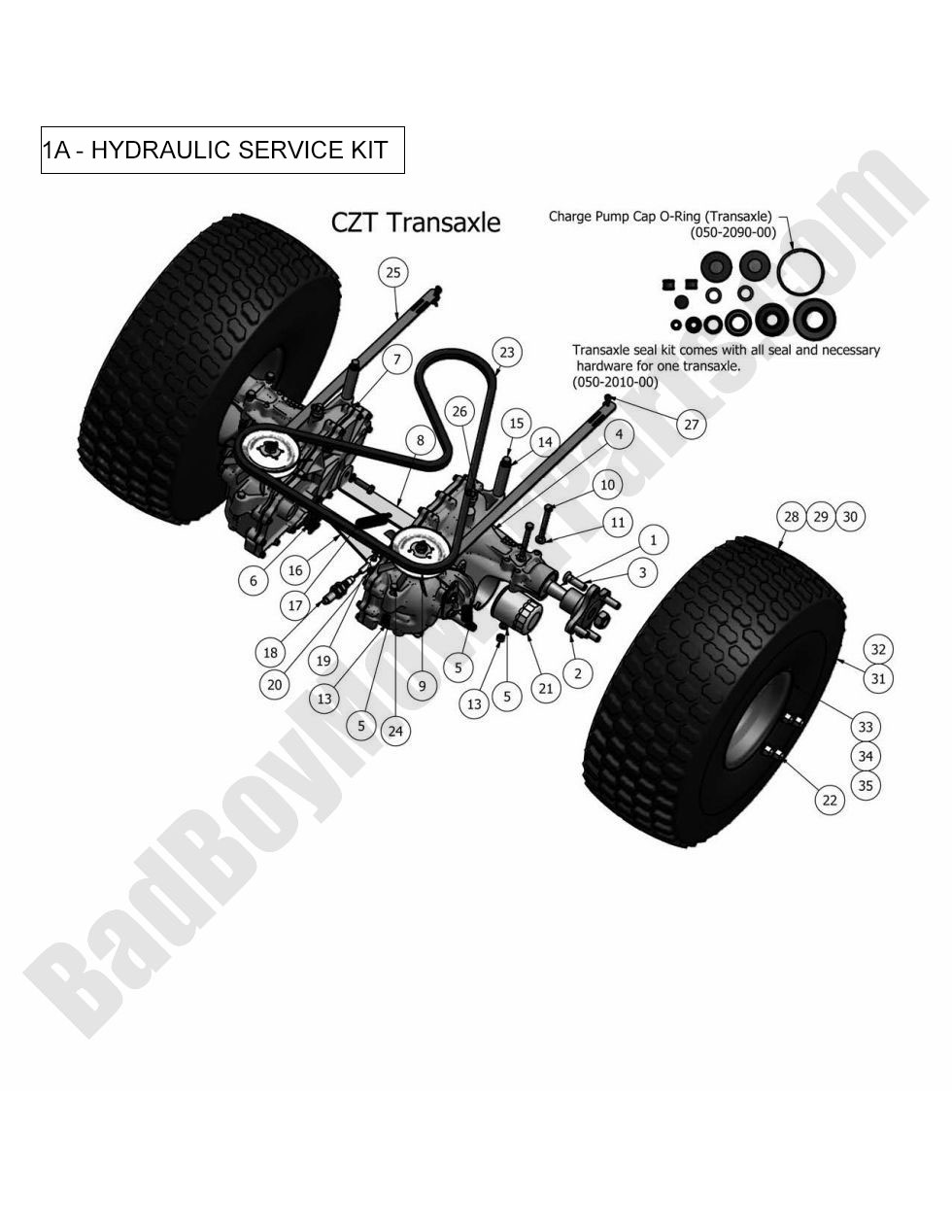

The Bad Boy Mower parts diagram for the 2011 CZT Transaxle is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 CZT models. Find all of your Bad Boy mowers 2011 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 CZT Transaxle. If you are not able to find the Bad Boy parts for your 2011 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 CZT Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1B 050-2090-00 050-2090-00 - O-Ring for ZT Transaxle Charge Plate
$14.19
1 050-2077-00 050-2077-00 - 5 Bolt Hub Kit CZT TRANS
$95.20
2 050-2076-00 050-2076-00 - ZT Transaxle Wheel Hub
$90.56
3 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
4 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-01
$877.39
5 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
6 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
7 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-01
$877.39
8 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
9 050-2072-00 050-2072-00 - Fan/Pulley Kit for CZT
$63.96
10 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
11 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
13 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
14 025-5340-00 025-5340-00 -.365 ID X.752 OD X 3.313Lengt h Spacer Zinc
$8.74
15 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
16 039-0053-00 039-0053-00 - Crossover Brake Bracket
$14.19
17 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
18 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
19 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
20 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
21 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
22 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
23 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
24 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
25 031-0052-00 031-0052-00 - 2007-2011 ZT/CZT Transaxle Neutral Lever
$11.34
26 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
27 040-6060-00 040-6060-00 - Seat Latch Pin
$2.99
28 022-5460-00 022-5460-00 - 23 x 10.50 -12 Assembly w/Negative Offset Wheel 54"CZT (One Tire & Rim Assy)
$266.99
29 022-5352-00 022-5352-00 - 23x10.50-12 Wheel Assembly (One Tire & Rim Assembly)
$267.99
30 022-3000-00 022-3000-00 - 23x8.50-12 Tire Assembly (obsolete)
use part #022-3010-00
$265.99
31 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$192.99
32 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$224.99
33 022-7061-00 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only)
$195.99
34 022-7062-00 022-7062-00 - 12 Orange Wheel - 48 and 52 Pu p Models
$113.62
35 022-3026-00 022-3026-00 - 12x7 Wheel-23 x 8.50 - 12 Tire
$74.89
