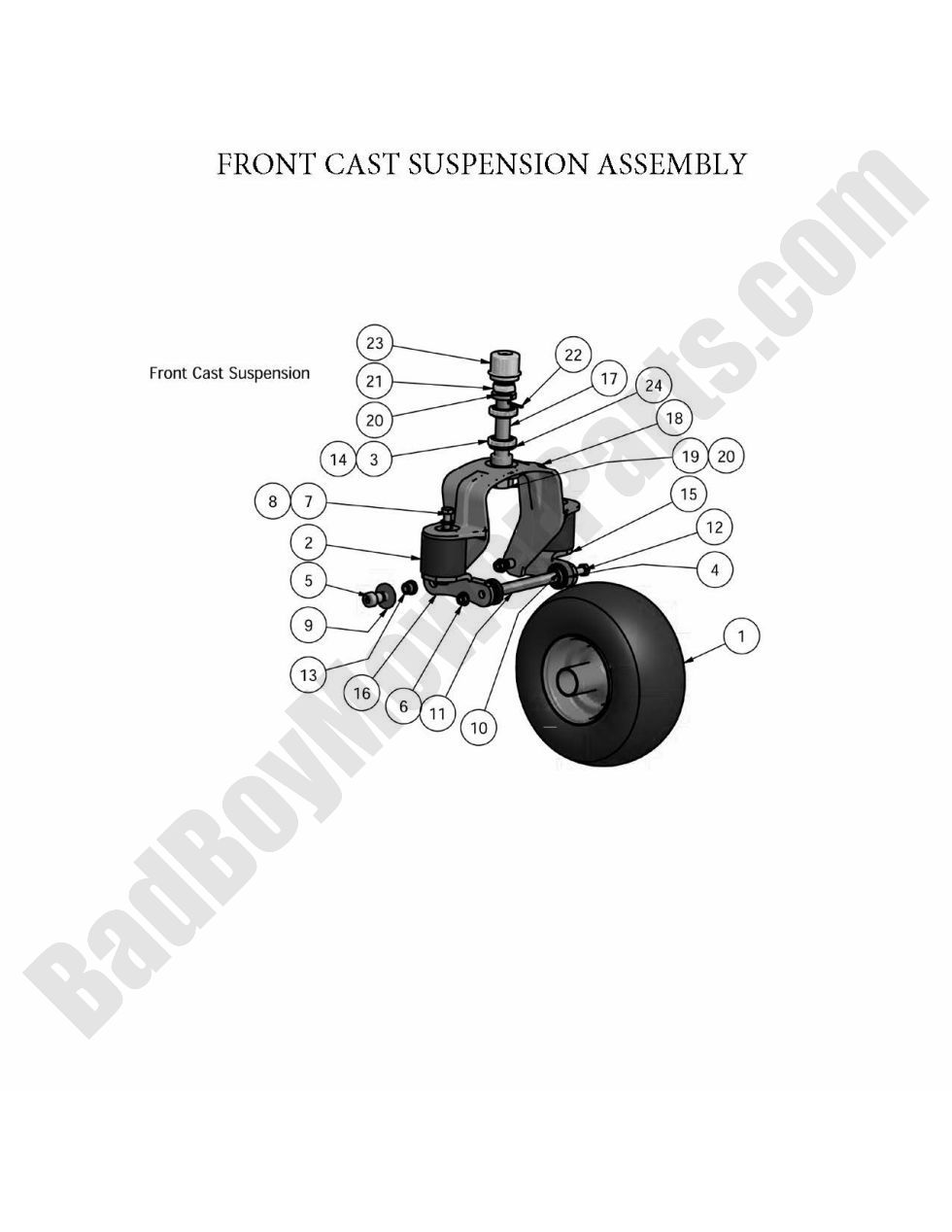

2010 Outlaw & Outlaw Extreme Front Wheel w/ Suspension

Front Wheel w/ Suspension

The Bad Boy Mower parts diagram for the 2010 Outlaw Front Wheel w/ Suspension is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Outlaw models. Find all of your Bad Boy mowers 2010 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Outlaw Front Wheel w/ Suspension. If you are not able to find the Bad Boy parts for your 2010 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Outlaw & Outlaw Extreme Front Wheel w/ Suspension
  Position Number SKU Product Title Price
1 022-3060-00 022-3060-00 - 13 x 6.50 - 6 LARGE BORE, Orange Front Assembly
$128.39
2 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
3A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
3 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
4 022-7010-00 022-7010-00 - 1 3/4" Bearing-Large Bore Front Wheel
$20.32
5 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
8 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
9 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
10 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
11 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
12 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
13 032-5052-00 032-5052-00 - Bronze Bushing - SF-2024-8 Front Suspension Fork
$4.81
14 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$2.99
15 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
16 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
17 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
18 023-7915-98 023-7915-98 - Suspension Fork Assembly
$294.99
19 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
20 019-3000-00 019-3000-00 - 1 Lock Washer
$3.29
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
22 020-3000-00 020-3000-00 - 3/32 X 1 1/2 Cotter Pins Zinc
$2.99
23 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
24 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
