2010 Outlaw & Outlaw Extreme Seat Frame

Seat Frame

The Bad Boy Mower parts diagram for the 2010 Outlaw Seat Frame is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Outlaw models. Find all of your Bad Boy mowers 2010 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Outlaw Seat Frame. If you are not able to find the Bad Boy parts for your 2010 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Outlaw & Outlaw Extreme Seat Frame
  Position Number SKU Product Title Price

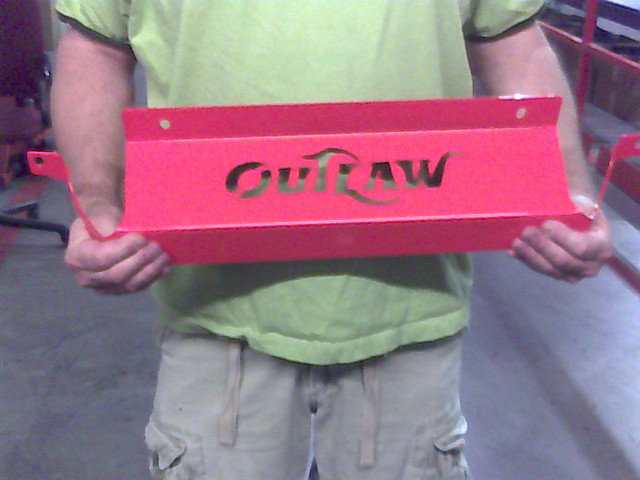

1 014-2100-00 014-2100-00 - Outlaw Cooler Cover
$21.39
2 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
3 071-3000-00 071-3000-00 - Milsco Suspension Seat-AOS/Lig OBSOLETE use 071-4050-17 (obsolete)
use part #071-4050-17
$813.99
4 064-8081-00 064-8081-00 - Seat Cable (See Models Used On For Details)
$15.60
5 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
6 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
7 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
8 069-8054-00 069-8054-00 - Brake Handle Kit
$127.77
9A 055-8021-00 055-8021-00 - Throttle Cable - Used on Pup/Lightning Models With 32hp Briggs Engines and all Outlaw models without FX850 Kawasaki Engines
$45.29
9 055-8017-00 055-8017-00 - Throttle Cable - For Outlaws With FX850 Kawasaki Engines and All Pup/Lightning/AOS Gas Models without 32hp Briggs
$45.29
10 034-8045-00 034-8045-00 - Seat Spring
$20.49
11A 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
11 054-8016-00 054-8016-00 - 47" Choke Cable For AOS, Pup, Lightning, 2016-2018 Outlaw/Outlaw Extreme Units with Kawasaki FX730 & FX850 Engines and 2013-2016 MZ Units With Kawasaki Engines. (Will Not Work On Units With 30hp Engines)
$28.88
12 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
13 018-8057-00 018-8057-00 - 10-24 X 3/4 BS C/S 18-8 SS
$2.99
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
15 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
16 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
17 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
18 044-4000-00 044-4000-00 - Pin (See Models Used On)
$7.25
19 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
20 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
21 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
22 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
23 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99

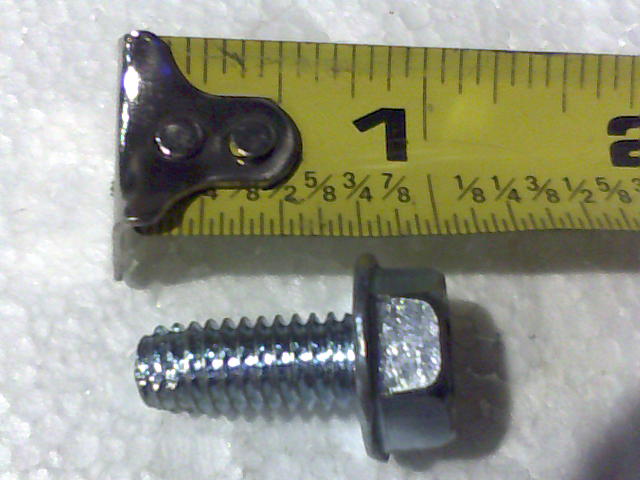

24 030-7050-00 030-7050-00 - 5/16 x 3/4 HWH Type F Screw Parts use 030-7042-00 (obsolete)
use part #030-7042-00
$2.99
25 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
26 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
27 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
28 013-6052-00 013-6052-00 - 1/2-20 Nylon Insert Jam Locknu t Zinc Orange Zinc
$2.99
29 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch-ZT
$2.99
31 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
32 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
