2010 Outlaw & Outlaw Extreme Rear Pulley Assembly

Rear Pulley Assembly

The Bad Boy Mower parts diagram for the 2010 Outlaw Rear Pulley Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Outlaw models. Find all of your Bad Boy mowers 2010 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Outlaw Rear Pulley Assembly. If you are not able to find the Bad Boy parts for your 2010 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Outlaw & Outlaw Extreme Rear Pulley Assembly
  Position Number SKU Product Title Price
2 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
3 064-5300-00 064-5300-00 - 24 Red Battery Cable
$21.85
4 064-0030-00 064-0030-00 - 24 inch Black Cable
$18.72
5 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
6 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
7 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
8 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
12 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
13 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
14 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
15 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
16 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
17 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
18 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
21 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
22 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
23 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
24 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
25 034-9050-00 034-9050-00 - Idler/Deck Spring - Big Diameter
$17.11

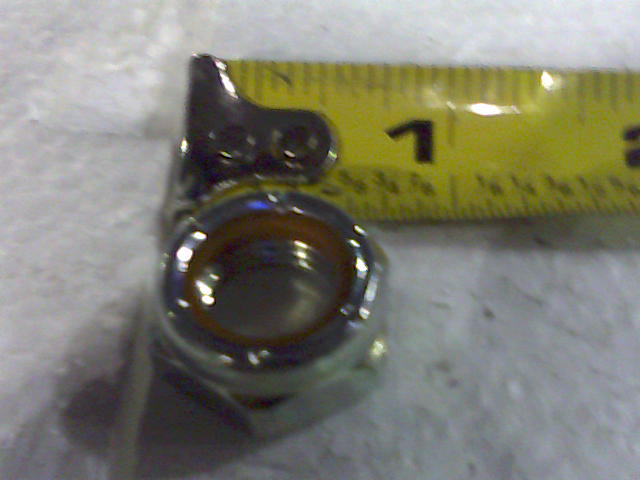

26 013-6052-00 013-6052-00 - 1/2-20 Nylon Insert Jam Locknu t Zinc Orange Zinc
$2.99
27 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
28 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
