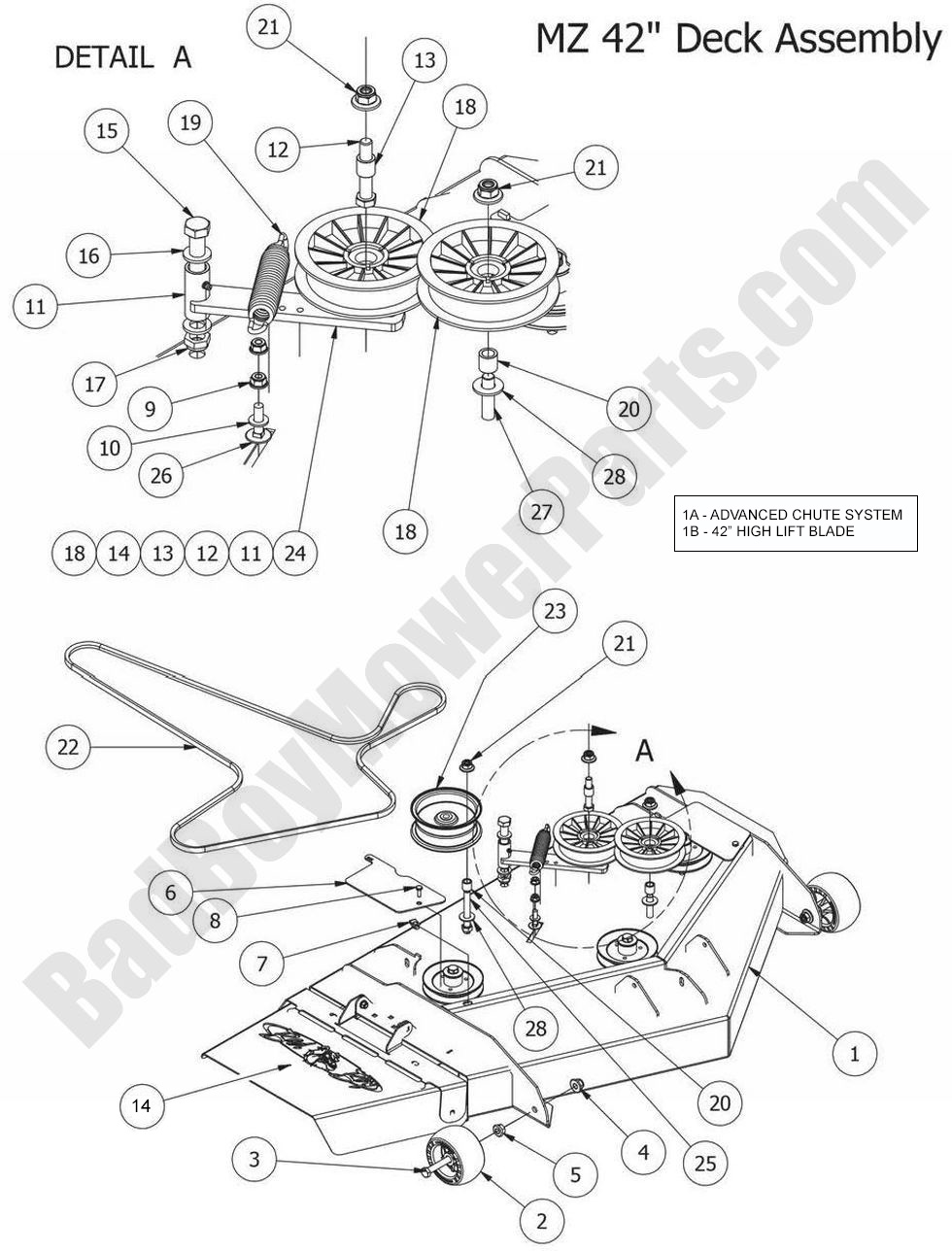

2014 MZ 42" Deck Assembly

42" Deck Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 MZ models. Find all of your Bad Boy mowers 2014 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 MZ 42in Deck Assembly. If you are not able to find the Bad Boy parts for your 2014 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2014 MZ 42" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$266.99
1B 038-4221-00 038-4221-00 - 42" High Lift Fusion Blade-MZ
$22.99
1 060-2200-00 060-2200-00 - 2010-2016 42 MZ Deck - Shell Only
$1207.33
2 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
3 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-0085-00 013-0085-00 - 1/2-13 HEX FLANGE (GR.G) ZC
$2.99
6 014-4200-00 014-4200-00 - 42" Deck Pulley Cover (See Models Used On For Details)
$28.39
7 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
12 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
13 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
14 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$156.17
15 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
16 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
17 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
18 033-2000-00 033-2000-00 - Plastic Idler Pulley-MZ Models OBSOLETE USE 033-7201-00 (obsolete)
use part #033-7201-25
$35.48
19 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
22 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
23 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley
$56.77
24 039-7001-98 039-7001-98 - MZ DECK IDLER ASSEMBLY
$56.77
25 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 GR 5 Hex Bolts
$2.99
26 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
27 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
28 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
