2014 MZ Front Fork Assembly

Front Fork Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 MZ models. Find all of your Bad Boy mowers 2014 MZ parts here. We are your Bad Boy Mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 MZ Front Fork Assembly. If you are not able to find the Bad Boy parts for your 2014 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

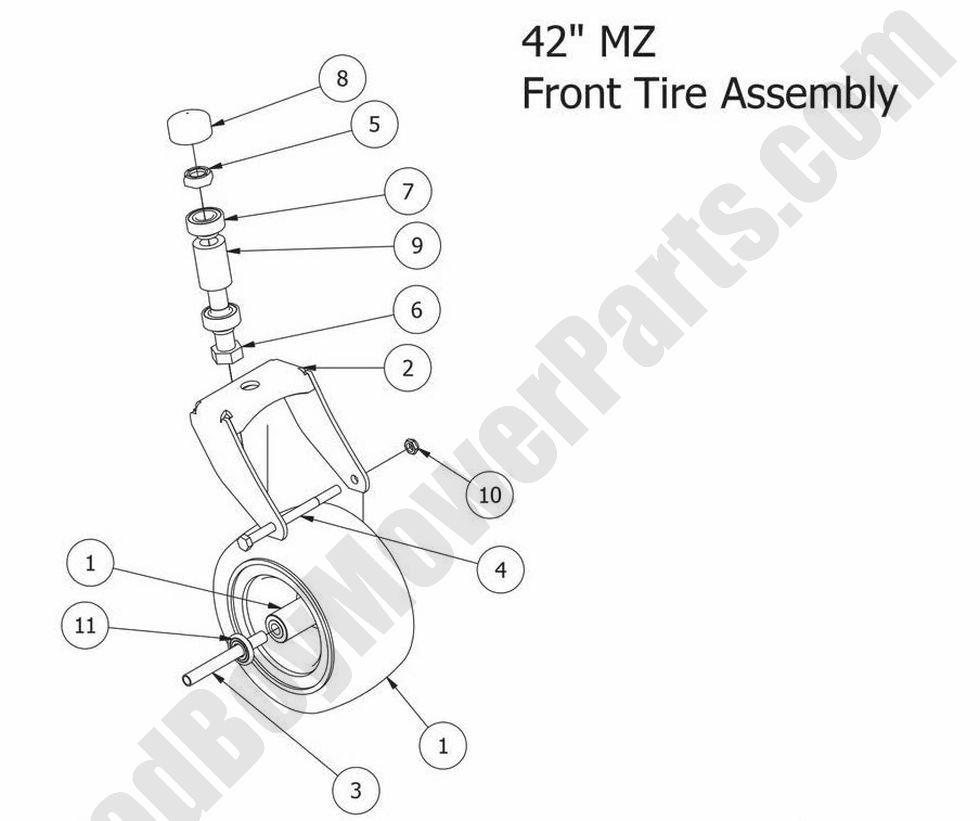

2014 MZ Front Fork Assembly
  Position Number SKU Product Title Price
1 022-8049-00 022-8049-00 - 11x6.00-5 Front Assembly (One Tire and Rim Assy)
$99.39
2 023-1000-00 023-1000-00 - 2010-2016 MZ Front Fork
$113.57
3 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
4 018-0004-00 018-0004-00 - 1/2-13 X 7 Hex Bolt - Grade 5
$5.49
5 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
6 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 ZC YELLOW
$6.48
7 010-2000-00 010-2000-00 - Front Fork Caster Bearing (See Models Used On For Details)
$16.68
8 014-2050-00 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details)
$3.73
9 025-0005-00 025-0005-00 - MZ Caster Bearing Spacer
$12.64
10 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
11 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
