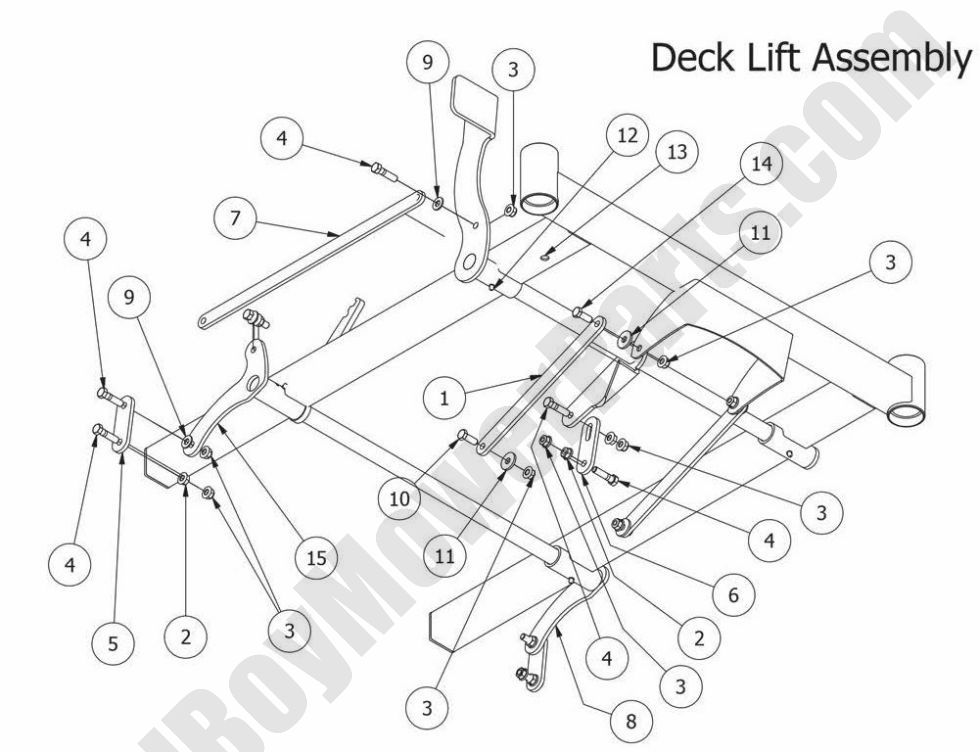

BadBoyMowerParts.com has the parts diagrams for the 2014 MZ models. Find all of your Bad Boy mowers 2014 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 MZ Deck Lift Assembly. If you are not able to find the Bad Boy parts for your 2014 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 031-1010-00 | 031-1010-00 - MZ Front Arm |
$25.54
|
||
2 | 013-5201-00 | 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations |
$2.99
|
||
3 | 013-5202-00 | 013-5202-00 - 3/8 Nylock Flange Nut |
$2.99
|
||
4 | 018-6012-00 | 018-6012-00 - 3/8 x 1 1/2 Bolt |
$2.99
|
||
5 | 025-0010-00 | 025-0010-00 - 2010-2016 MZ/MZ Magnum Deck Spacer - Rear Hanger Tab |
$18.94
|
||
6 | 025-0020-00 | 025-0020-00 - 42/48 Deck Spacer MZ (Front) 2014 54 MZ |
$18.94
|
||
7 | 028-0050-00 | 028-0050-00 - MZ Deck Linkage Rod |
$7.28
|
||
8 | 031-1030-00 | 031-1030-00 - MZ Deck Pivot Lever 2 |
$7.28
|
||
9 | 019-6042-00 | 019-6042-00 -.360 ID Plastic Washer |
$2.99
|
||
10 | 018-6049-00 | 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc |
$2.99
|
||
11 | 019-2073-00 | 019-2073-00 -.390 ID Plastic Washer |
$2.99
|
||
12 | 024-6034-00 | 024-6034-00 - 1/4 Drive-in Grease Fitting |
$2.99
|
||
13 | 014-3010-00 | 014-3010-00 - 5/8 Round Insert - Deck |
$2.99
|
||
14 | 018-5040-00 | 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt |
$2.99
|
||
15 | 031-1020-00 | 031-1020-00 - MZ Deck Pivot Lever |
$7.28
|
