2016 MZ Deck Lift Assembly

Deck Lift Assembly

You have selected the Deck Lift Assembly diagram for your 2016 Bad Boy MZ. BadBoyMowerParts.com has the diagrams you need for the 2016 MZ models. Find all of your Bad Boy parts for your 2016 MZ parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 MZ Deck Lift Assembly . If you are not able to find the Bad Boy parts for your 2016 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

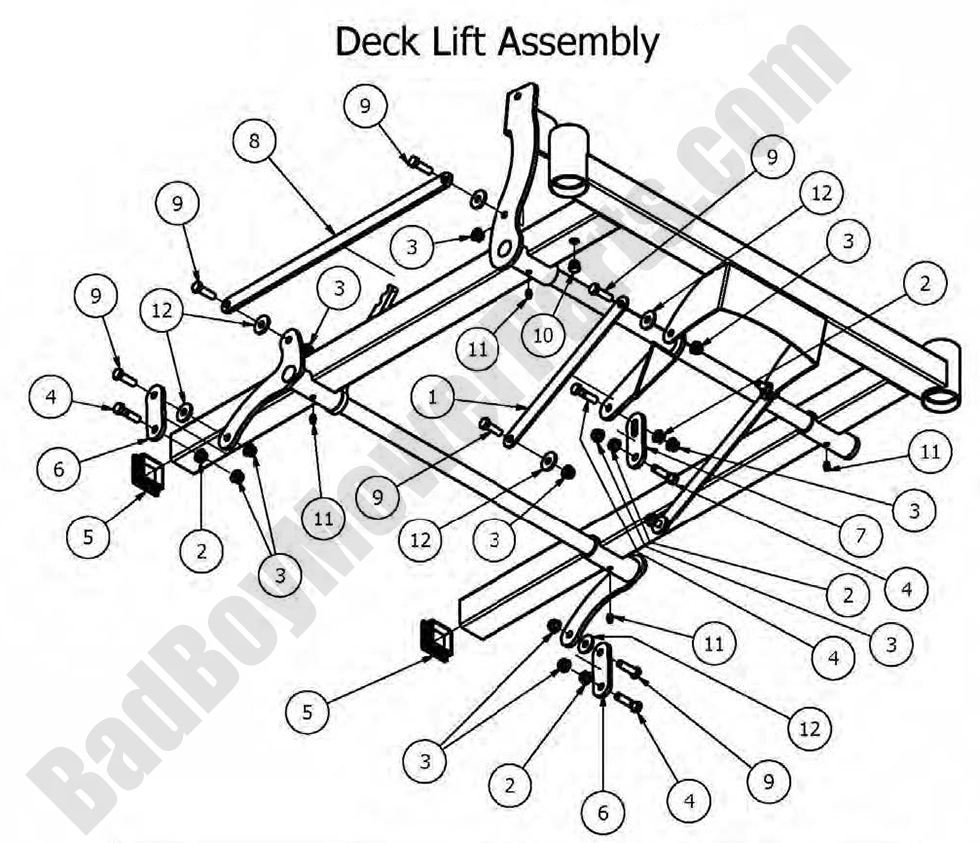

2016 MZ Deck Lift Assembly
  Position Number SKU Product Title Price
1 031-1010-00 031-1010-00 - MZ Front Arm
$25.54
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
5 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
6 025-0010-00 025-0010-00 - 2010-2016 MZ/MZ Magnum Deck Spacer - Rear Hanger Tab
$18.94
7 025-0020-00 025-0020-00 - 42/48 Deck Spacer MZ (Front) 2014 54 MZ
$18.94
8 028-0050-00 028-0050-00 - MZ Deck Linkage Rod
$7.28
9 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
10 014-3010-00 014-3010-00 - 5/8 Round Insert - Deck
$2.99
11 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting Short
$2.99
12 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
