2016 MZ Engine - Kohler KT-725

Engine - Kohler KT-725

You have selected the Engine - Kohler KT-725 diagram for your 2016 Bad Boy MZ. BadBoyMowerParts.com has the diagrams you need for the 2016 MZ models. Find all of your Bad Boy parts for your 2016 MZ parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 MZ Engine - Kohler KT-725 . If you are not able to find the Bad Boy parts for your 2016 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

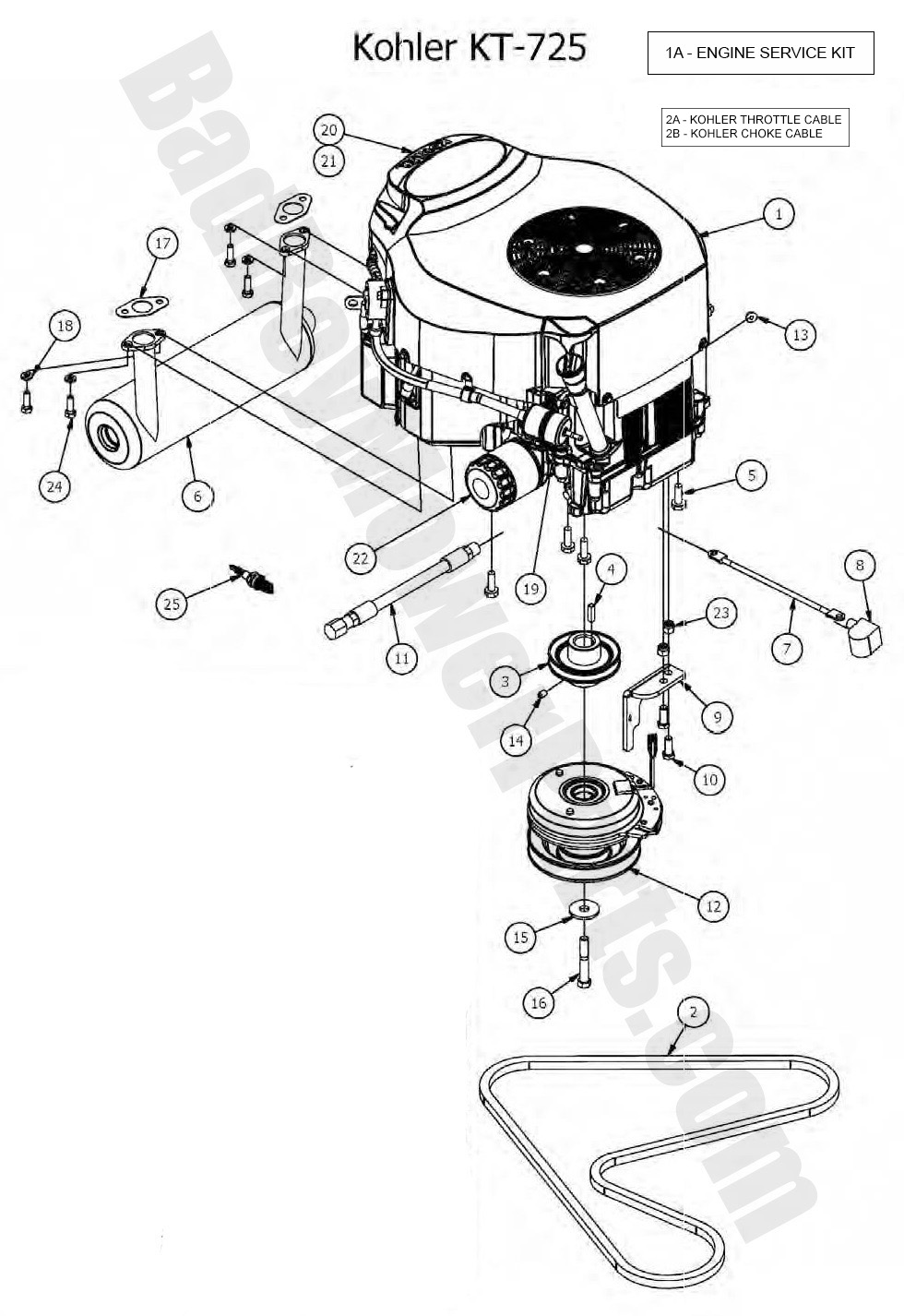

2016 MZ Engine - Kohler KT-725
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1 015-2015-00 015-2015-00 - 22 Kohler MZ/Magnum-KT725-3035
$1924.93
2 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
3 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
4 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
5 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
6 015-0060-00 015-0060-00 - 2014-2016 MZ Muffler-25 Kohler
$198.76
7 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
8 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
9 039-1220-00 039-1220-00 - Warner Clutch BracketFor MZ and Magnums
$12.63
10 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
11 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
12 070-0050-00 070-0050-00 - 2015 & 2016 Magnum/MZ PTO Clutch
$269.69
13 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
15 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
16 018-0029-00 018-0029-00 - 7/16-20x4" Hex Bolt Gr.8
$4.39
17 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
18 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
19 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
20 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$8.74
21 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$26.74
22 063-5004-00 063-5004-00 - 25 HP Kohler Oil Filter (Short) ZT/MZ
$23.53
23 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
24 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
25 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
