2016 MZ Seat Assembly

Seat Assembly

You have selected the Seat Assembly diagram for your 2016 Bad Boy MZ. BadBoyMowerParts.com has the diagrams you need for the 2016 MZ models. Find all of your Bad Boy parts for your 2016 MZ parts here. We are your Bad Boy mower parts source. The Bad Boy parts diagram below is for the 2016 MZ Seat Assembly . If you are not able to find the Bad Boy parts for your 2016 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

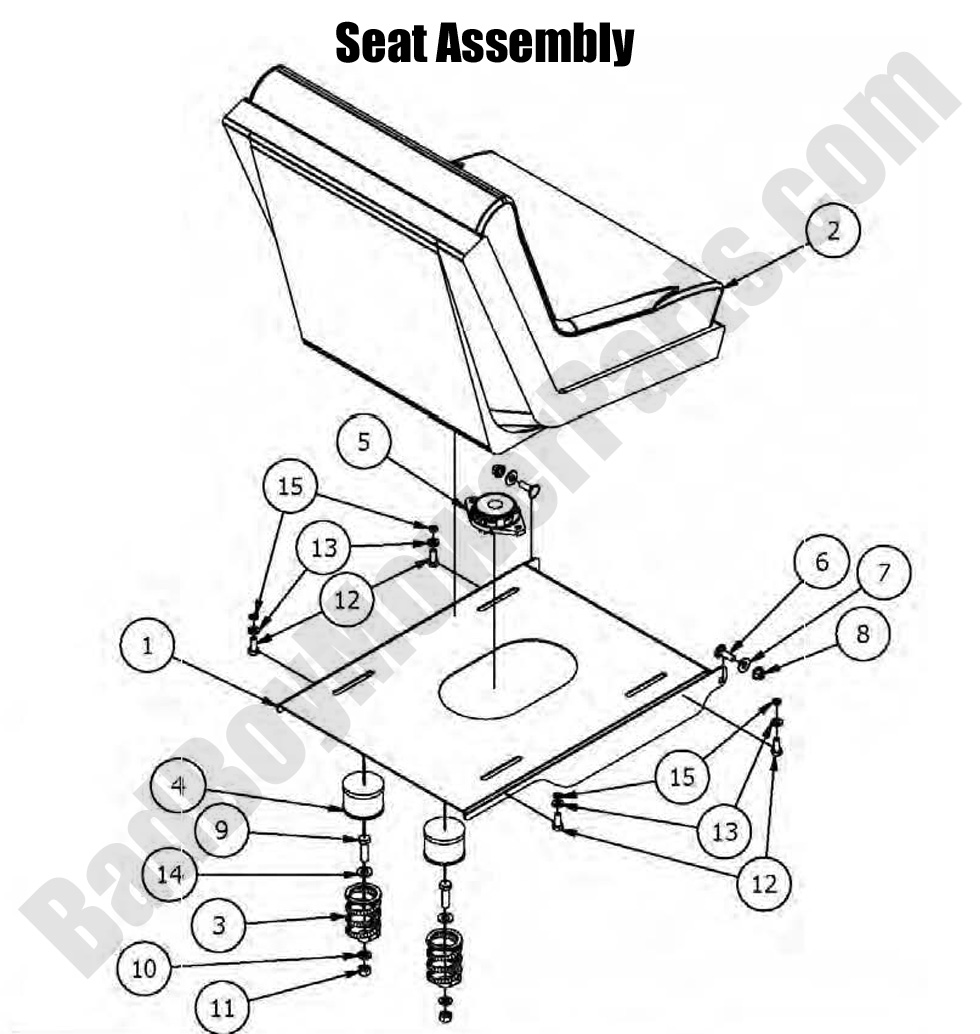

2016 MZ Seat Assembly
  Position Number SKU Product Title Price
1 026-2010-00 026-2010-00 - MZ Seat Plate
$99.32
2 071-9000-00 071-9000-00 - OBSOLETE use 071-1000-00 (obsolete)
use part #071-1000-00
$460.99
3 034-8045-00 034-8045-00 - Seat Spring
$20.49
4 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
5 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
6 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
7 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
8 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
9 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
10 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
12 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
13 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
14 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
15 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
