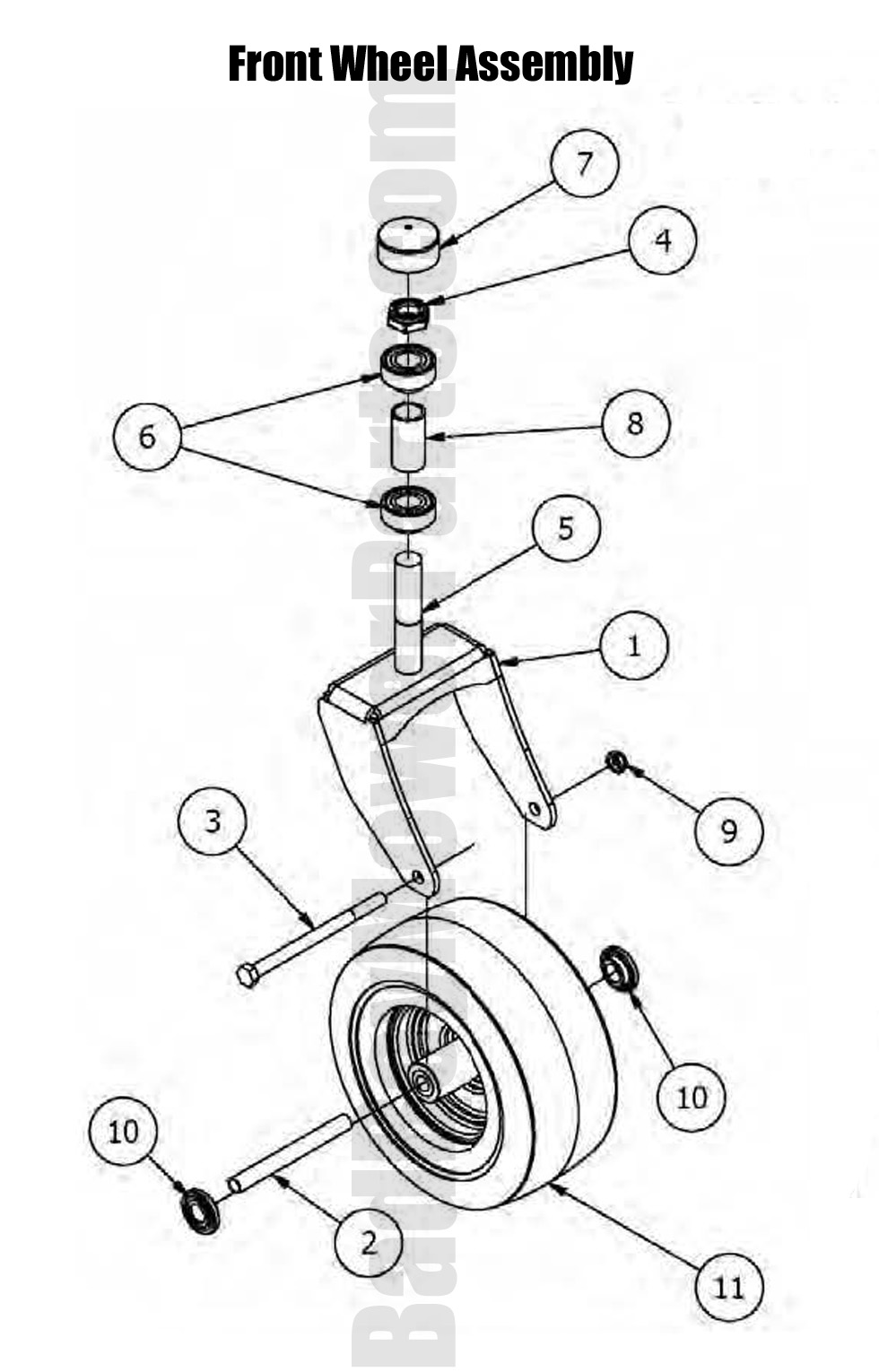

You have selected the Front Wheel Assembly diagram for your 2016 Bad Boy MZ. BadBoyMowerParts.com has the diagrams you need for the 2016 MZ models. Find all of your Bad Boy parts for your 2016 MZ parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 MZ Front Wheel Assembly . If you are not able to find the Bad Boy parts for your 2016 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 023-1000-00 | 023-1000-00 - 2010-2016 MZ Front Fork |
$113.57
|
||
2 | 025-0008-00 | 025-0008-00 - Front Wheel Spanner - MZ |
$15.60
|
||
3 | 018-0004-00 | 018-0004-00 - 1/2-13 X 7 Hex Bolt - Grade 5 |
$5.49
|
||
4 | 013-9004-00 | 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine |
$3.62
|
||
5 | 018-0005-00 | 018-0005-00 - 1-14 X 5 BOLT GR 8 ZC YELLOW |
$6.48
|
||
6 | 010-2000-00 | 010-2000-00 - Front Fork Caster Bearing (See Models Used On For Details) |
$16.68
|
||
7 | 014-2050-00 | 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details) |
$3.73
|
||
8 | 025-0005-00 | 025-0005-00 - MZ Caster Bearing Spacer |
$12.64
|
||
9 | 018-4010-00 | 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon |
$2.99
|
||
10 | 022-7009-00 | 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier |
$13.36
|
||
11 | 022-8049-00 | 022-8049-00 - 11x6.00-5 Front Assembly (One Tire and Rim Assy) |
$99.39
|
