2016 Maverick Frame & Fuel Tank

Frame & Fuel Tank

You have selected the Frame & Fuel Tank diagram for your 2016 Bad Boy Maverick. BadBoyMowerParts.com has the diagrams you need for the 2016 Maverick models. Find all of your Bad Boy parts for your 2016 Maverick parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Maverick Frame & Fuel Tank . If you are not able to find the Bad Boy parts for your 2016 Maverick please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

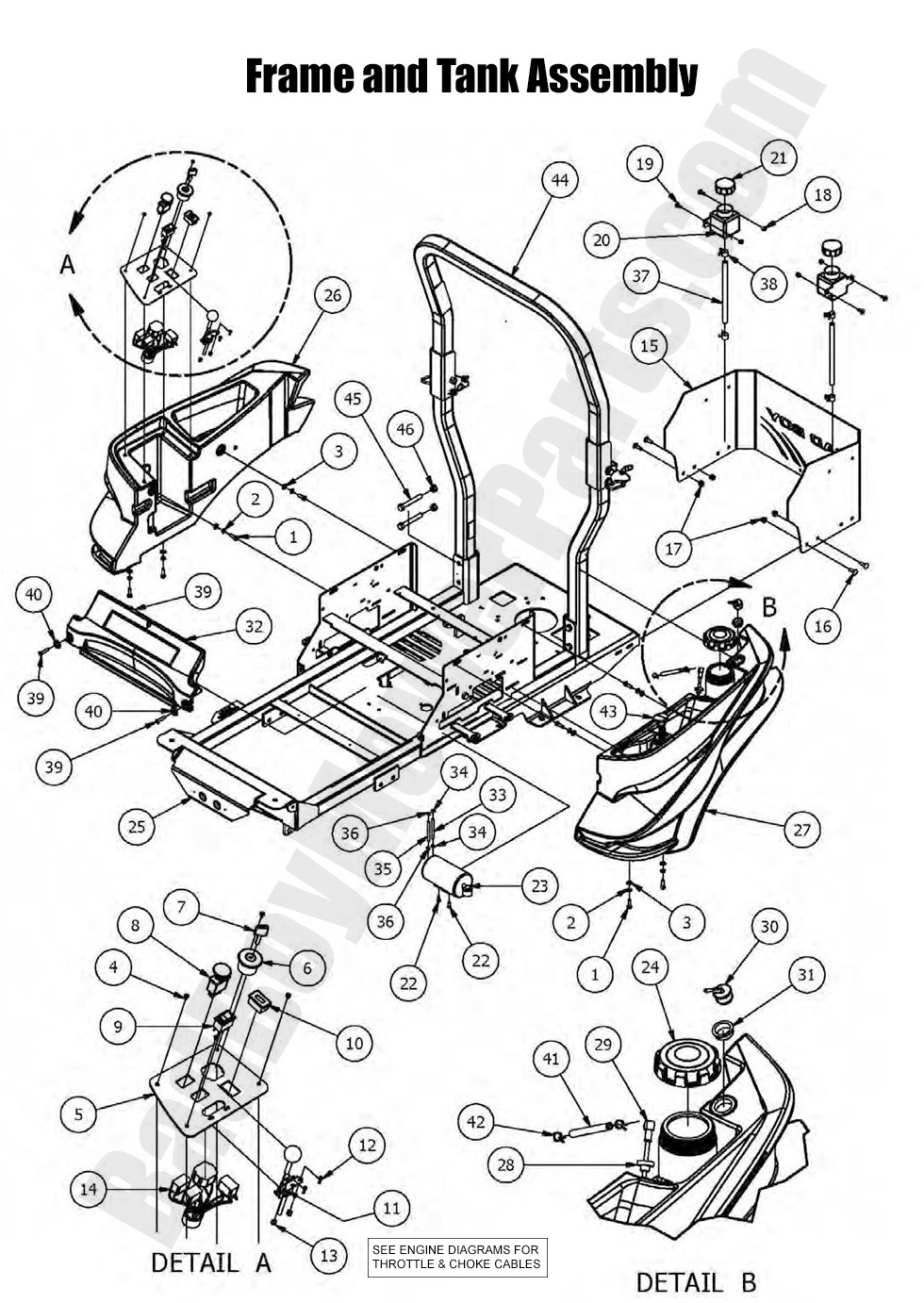

2016 Maverick Frame & Fuel Tank
  Position Number SKU Product Title Price
1 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
2 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
3 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
4 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
5 079-3460-00 079-3460-00 - 2014-2022 Control Panel (See Models Used On For Details)
$23.53
6 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
7 042-9000-00 042-9000-00 - Ignition Key
$4.06
8 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
9 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
10 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
11 055-8020-00 055-8020-00 - Throttle-53" (See Models Used On For Details)
$38.97
12 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
13 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
14 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$388.88
15 026-0075-00 026-0075-00 - 2016 Maverick Rear Plate
$192.99
16 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
19 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
20 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
21 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
22 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
23 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
24 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
25 070-5490-00 070-5490-00 - 2016 Maverick Frame
$1176.99

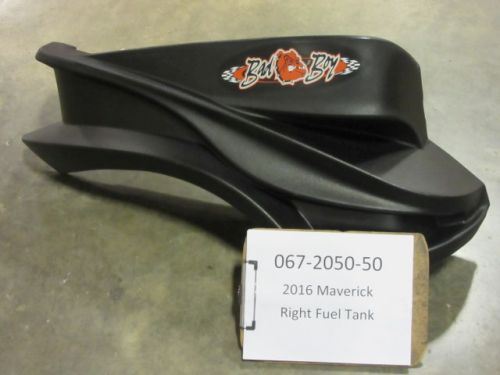

26 067-2050-50 067-2050-50 - 2016-2017 Maverick Right Console
$266.99
27 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$310.99
28 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel LinePickup Tube
$8.01
29 067-0011-00 067-0011-00 - Fuel Line Pickup Tube (See Models Used On For Detail)
$23.41
30 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60

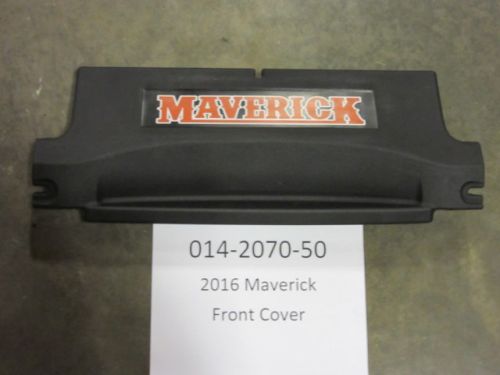

32 014-2070-50 014-2070-50 - Maverick Front Cover-Plastic
$58.80
33 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
34 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
35 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
36 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
37 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
38 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
39 018-0031-00 018-0031-00 - 5/16-18 x 1.5" Torx Cutter-Blk
$4.39

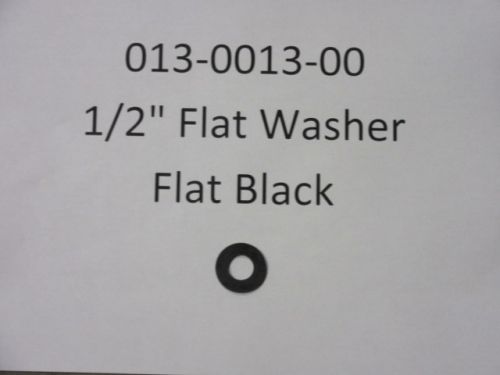

40 013-0013-00 013-0013-00 - 1/2 Flat Washer-Flat Black
$2.99
41 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
42 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
43 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
44 089-0005-00 089-0005-00 - 2x2 Folding ROPS
$852.52
45 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 GR 5 Hex Bolts
$2.99
46 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
