2016 Maverick Front Fork Assembly

Front Fork Assembly

You have selected the Front Fork Assembly diagram for your 2016 Bad Boy Maverick. BadBoyMowerParts.com has the diagrams you need for the 2016 Maverick models. Find all of your Bad Boy parts for your 2016 Maverick parts here. We are your Bad Boy mower parts source. The Bad Boy parts diagram below is for the 2016 Maverick Front Fork Assembly . If you are not able to find the Bad Boy parts for your 2016 Maverick please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

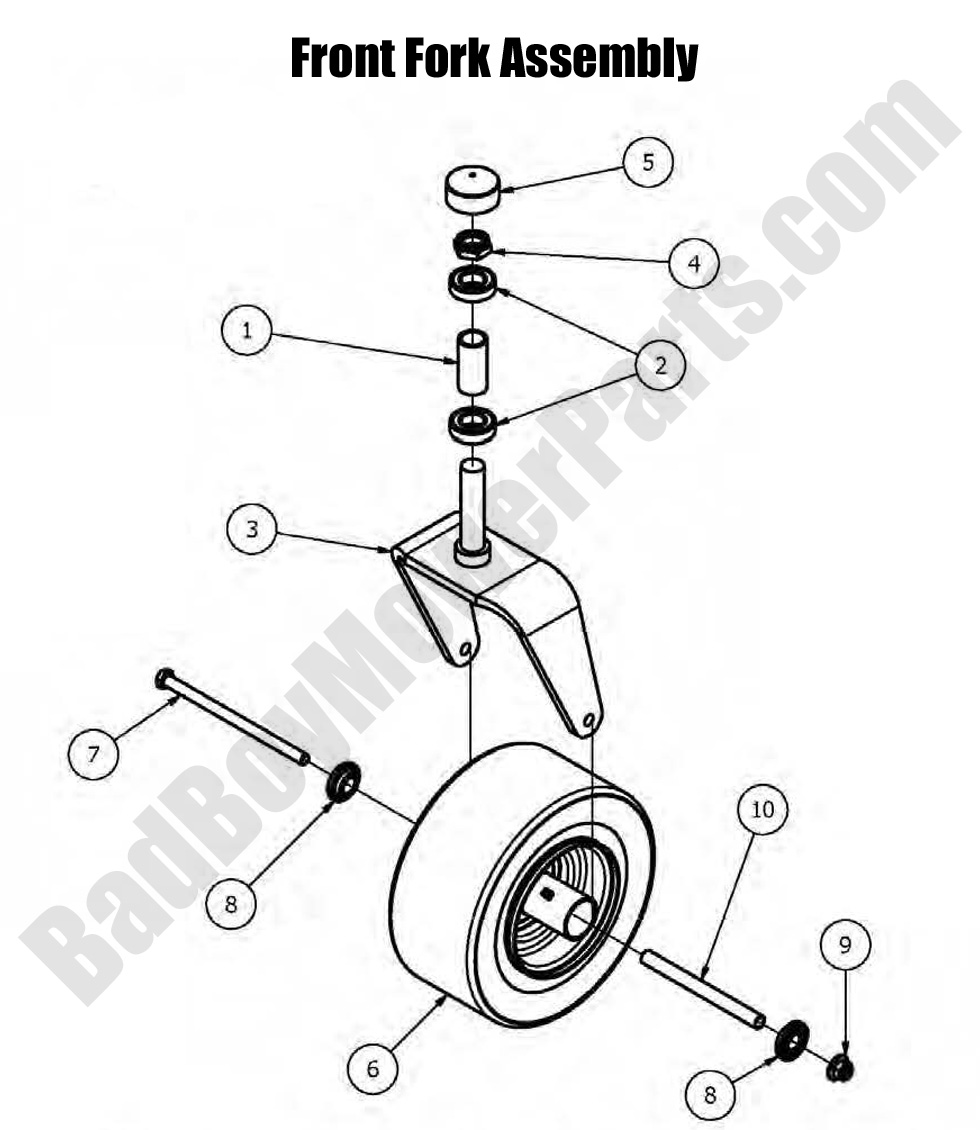

2016 Maverick Front Fork Assembly
  Position Number SKU Product Title Price
1 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
2 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
3 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$149.99
4 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
5 014-2050-00 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details)
$3.73
6 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
7 018-7010-00 018-7010-00 - 1/2-13 X 9 GR 5 Hex Bolts Zinc
$5.82
8 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
10 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
