2016 Maverick Seat Assembly

Seat Assembly

You have selected the Seat Assembly diagram for your 2016 Bad Boy Maverick. BadBoyMowerParts.com has the diagrams you need for the 2016 Maverick models. Find all of your Bad Boy parts for your 2016 Maverick parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Maverick Seat Assembly . If you are not able to find the Bad Boy parts for your 2016 Maverick please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

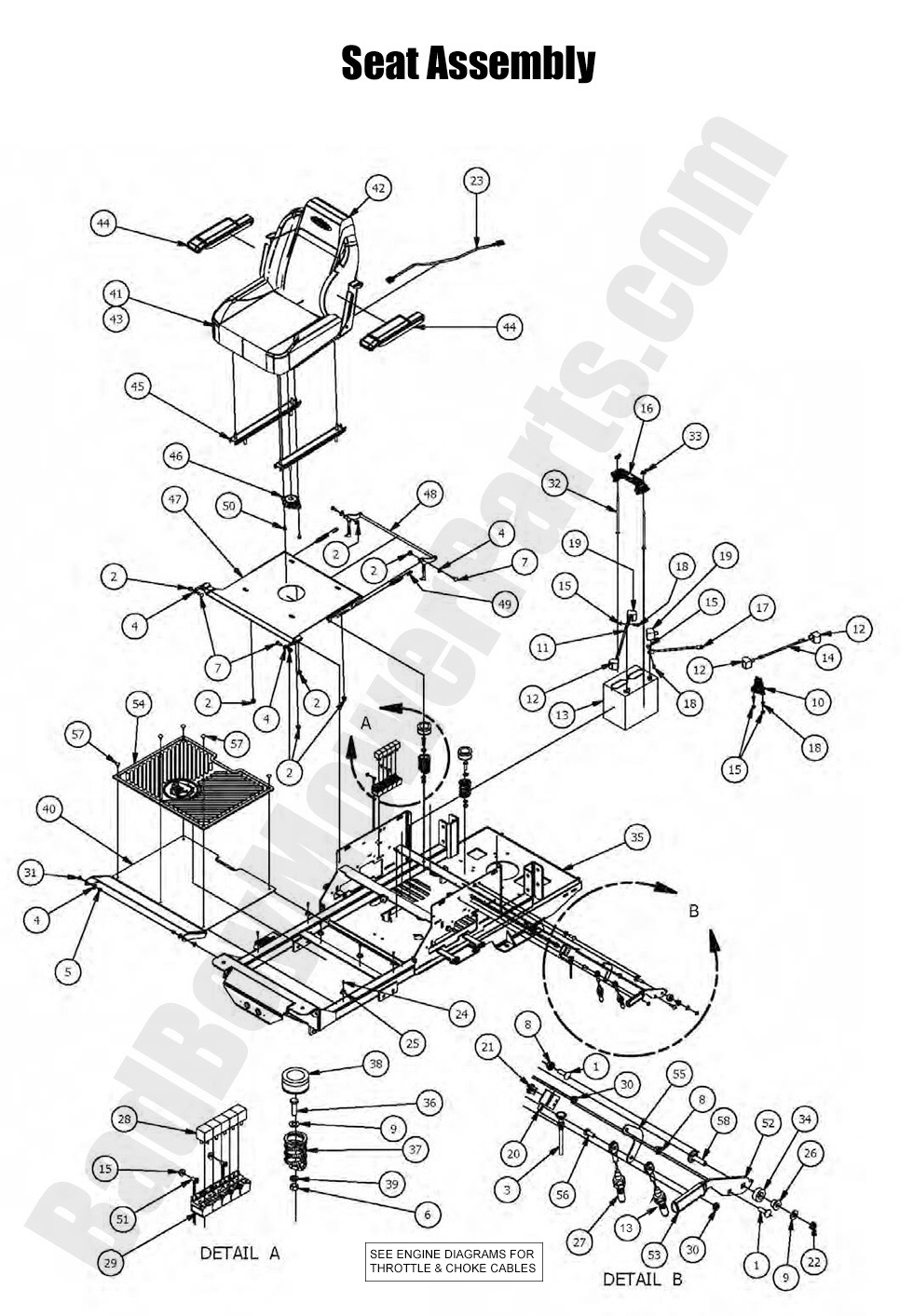

2016 Maverick Seat Assembly
  Position Number SKU Product Title Price
1 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
5 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
6 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
7 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
8 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
11 064-5300-00 064-5300-00 - 24 Red Battery Cable
$21.85

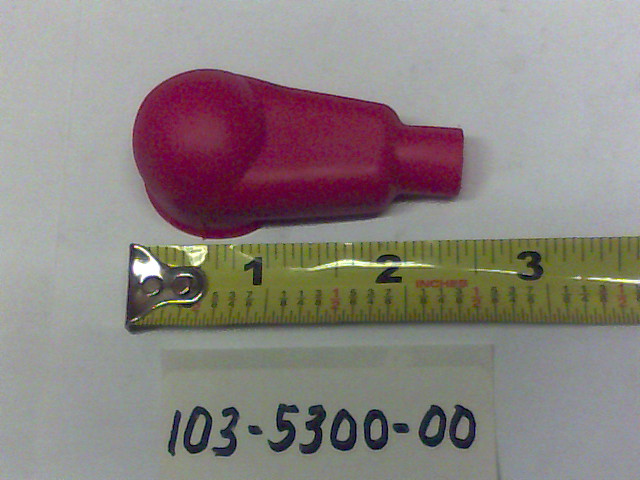

12 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
13 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
14 064-5301-00 064-5301-00 - 12 Red Battery Cable
$17.16
15 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
16 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
17 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
18 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
19 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
20 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
21 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch-ZT
$2.99
22 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
23 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
24 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
25 029-4010-00 029-4010-00 - Button Bumper
$2.99
26 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
28 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
29 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$388.88
30 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
31 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
32 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
33 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
34 025-0001-00 025-0001-00 - 2015-2022 Brake Lever Spacer
$8.01
35 070-5490-00 070-5490-00 - 2016 Maverick Frame
$1176.99
36 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
37 034-8045-00 034-8045-00 - Seat Spring
$20.49
38 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
39 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
40 079-3470-00 079-3470-00 - Maverick Floor Panel 2016 Model
$106.99

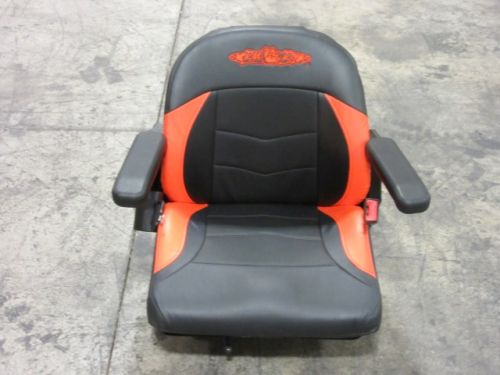

41 071-5080-00 071-5080-00 - 2016 Maverick Seat (obsolete)
use part #071-5080-18
$641.99

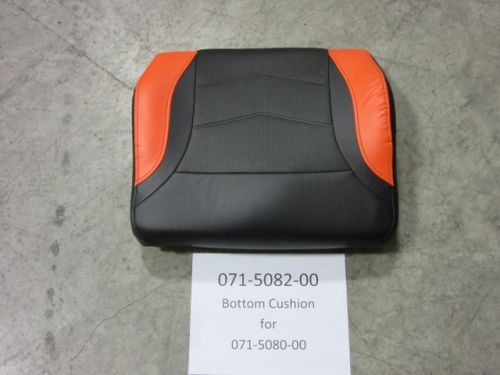

43 071-5082-00 071-5082-00 - Bottom Cushion-071-5080-00
$127.72

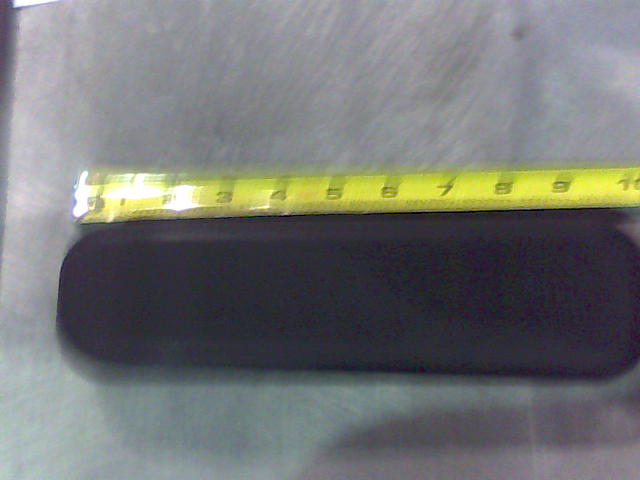

44 071-2017-00 071-2017-00 - Armrest Pad for 071-2010-00
$49.68

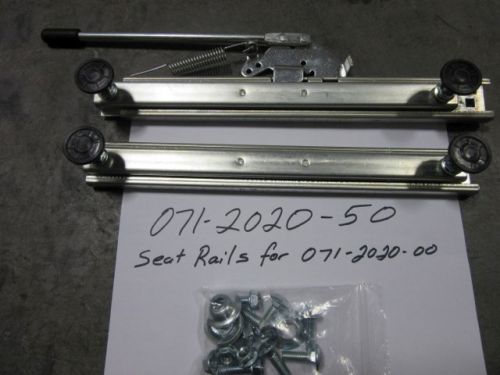

45 071-2020-50 071-2020-50 - Seat Rails-Wise Seats (obsolete)
use part #071-2012-00
$70.92
46 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
47 026-1016-00 026-1016-00 - Seat Plate (See Models Used On For Details)
$109.26

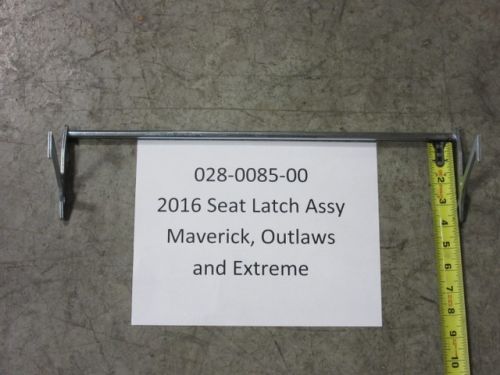

48 028-0085-00 028-0085-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$26.70
49 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
50 030-7041-00 030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type
$2.99
51 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99

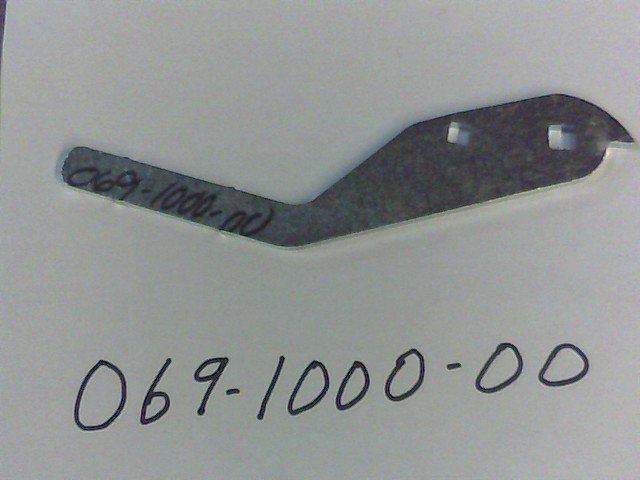

52 069-1000-00 069-1000-00 - Brake Handle Cam Over
$7.28
53 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41

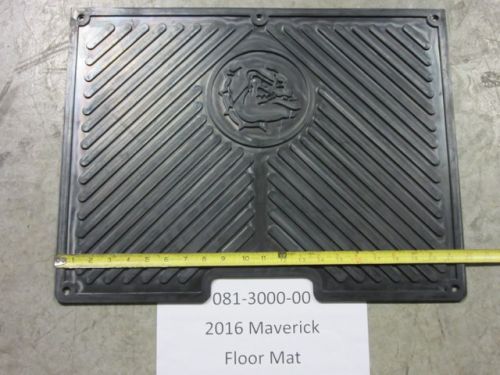

54 081-3000-00 081-3000-00 - 2016-2017 Maverick Floor Mat
$56.81
55 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket2015 Outlaws/XP
$18.72
56 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
57 040-6090-00 040-6090-00 - Ratchet Fastener-2016 Floorboard (obsolete)
use part #040-6080-00
$2.99
58 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
