2016 Maverick Transaxle Assembly

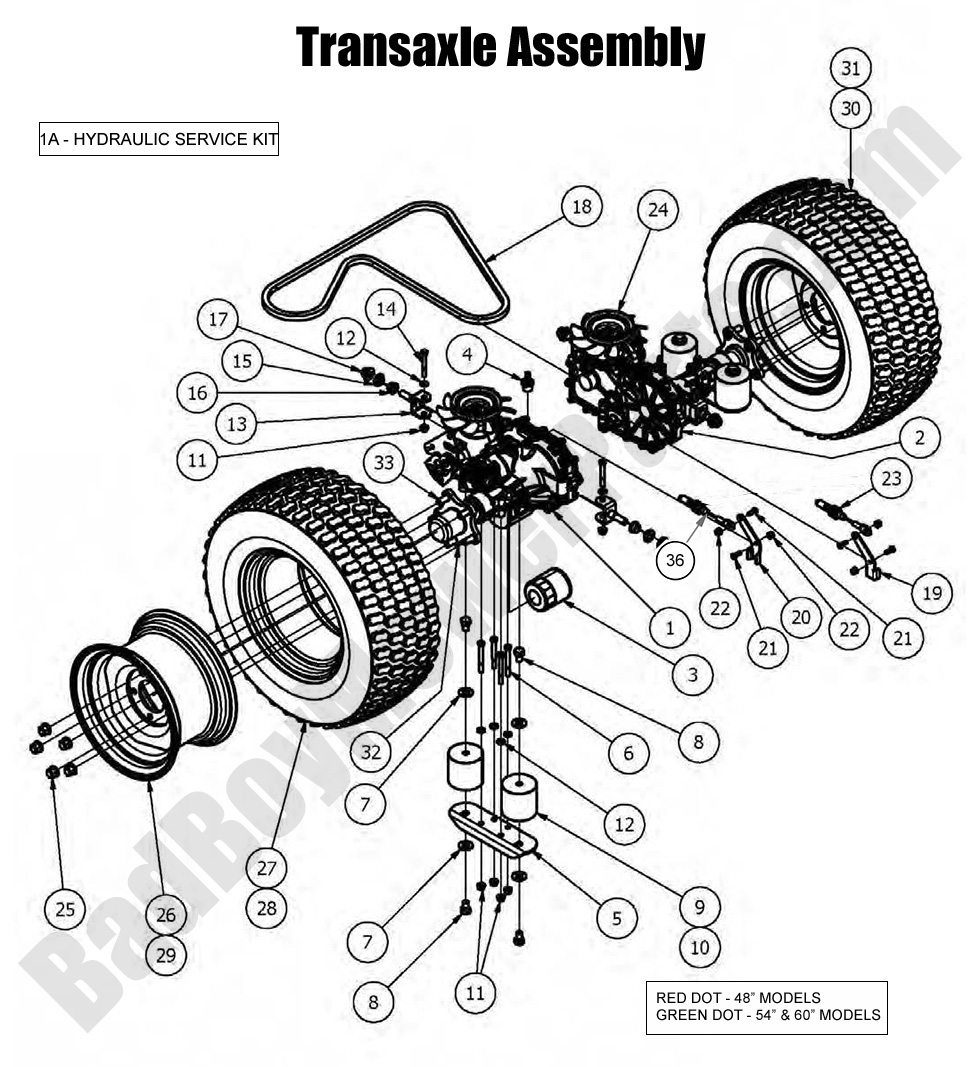

Transaxle Assembly

You have selected the Transaxle Assembly diagram for your 2016 Bad Boy Maverick. BadBoyMowerParts.com has the diagrams you need for the 2016 Maverick models. Find all of your Bad Boy parts for your 2016 Maverick parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Maverick Transaxle Assembly . If you are not able to find the Bad Boy parts for your 2016 Maverick please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Maverick Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 050-0075-00 050-0075-00 - 3200 Transaxle-EZT - Left (obsolete)
use part #050-0075-01
$748.99
2 050-0080-00 050-0080-00 - 3200 Transaxle-EZT-Right (obsolete)
use part #050-0080-01
$748.99
3 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
4 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
5 039-1306-00 039-1306-00 - EZT Rear Susp Transaxle Mount
$15.60
6 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
7 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
8 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
9 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
10 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
13 039-0001-00 039-0001-00 - Rear Transaxle Pivot Bracket
$15.60
14 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
15 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
16 032-5052-00 032-5052-00 - Bronze Bushing - SF-2024-8 Front Suspension Fork
$4.81
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 041-7400-00 041-7400-00 - Pump Belt Maverick, 75.8
$64.19
19 039-1321-00 039-1321-00 - Brake Arm Ext Bracket Right Side
$8.01
20 039-1320-00 039-1320-00 - Brake Arm Extension Bracket [Maverick LH]
$6.04
21 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
22 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
23 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
24 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
25 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
26 022-5466-00 022-5466-00 - 12" Black Wheel-2016 Maverick
$146.99
27 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$192.99
28 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$224.99
29 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$114.48
30 022-5465-00 022-5465-00 - 23 x 10.50 -12 Black Assy
$342.99
31 022-3010-00 022-3010-00 - 23x8.50-12 Tire Assembly-Black
$265.99
32 050-2077-00 050-2077-00 - 5 Bolt Hub Kit CZT TRANS
$95.20
33 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
36 064-3050-00 064-3050-00 - Brake Cable-18.50"
$51.47
