2017 Stand-On 36" Deck Assembly

36" Deck Assembly

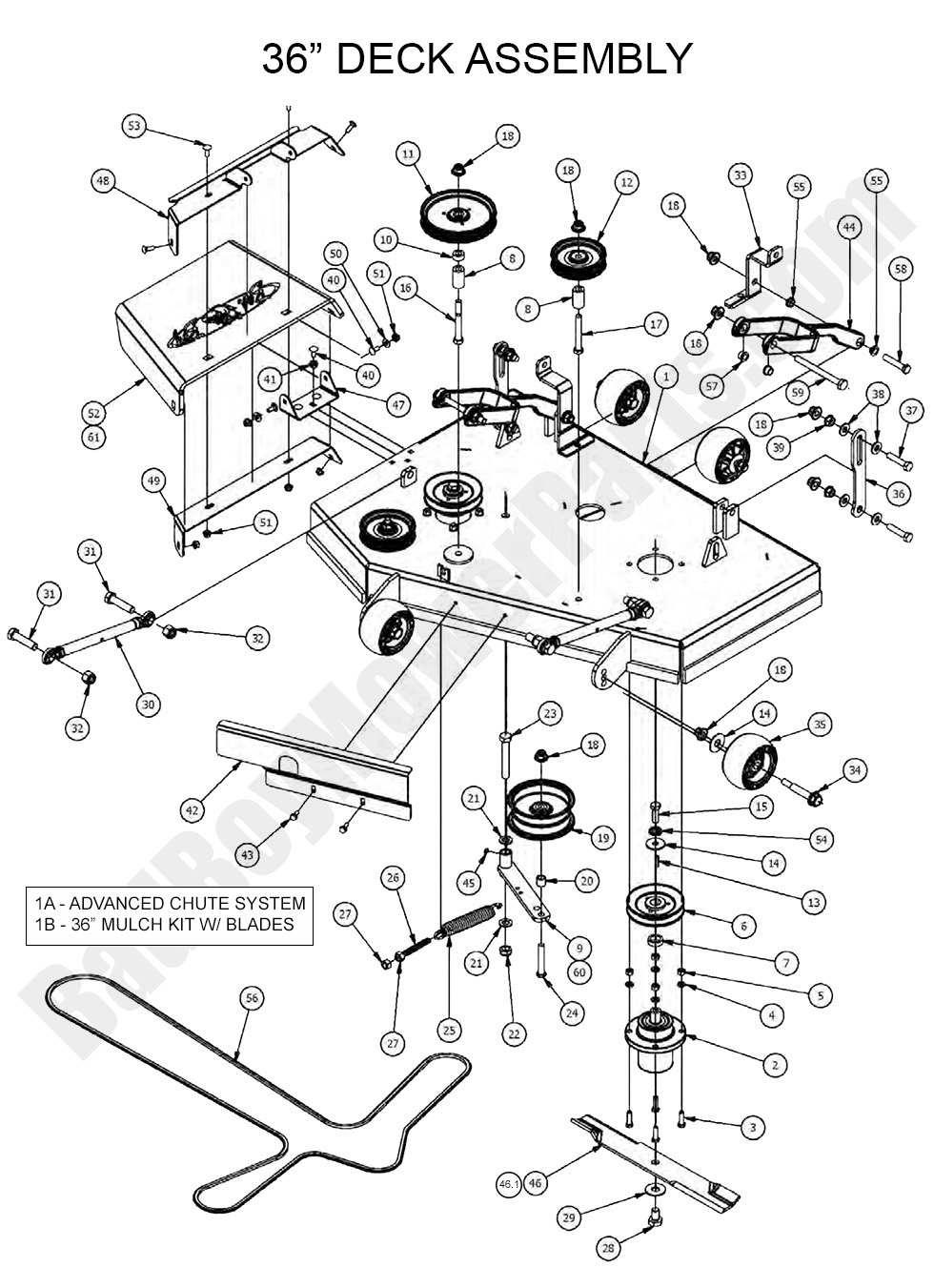

The Bad Boy Mower 36" Deck Assembly for the 2017 Outlaw Stand On is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw Stand On models as well. Find all of your Bad Boy mowers 2017 Outlaw Stand On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw Stand On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Stand-On 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$266.43
1B 210-0036-00 210-0036-00 - 36" Walk Behind Mulch Kit w/Blades
$256.79
2 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$218.63
3 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
4 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 033-4820-00 033-4820-00 - Deck Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
7 025-0060-00 025-0060-00 - 36" Stand On Deck Spindle Spacer
$6.59
8 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
9 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
10 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
11 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
12 033-7026-00 033-7026-00 - 5 V Idler Pulley w/1/2" Bore-36" Stand On
$35.48
13 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
14 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
16 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
17 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley
$56.77
20 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
21 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
22 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
23 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
24 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
25 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
26 018-2004-50 018-2004-50 -2017-2022 All Thread (See Models Used On)
$12.94
27 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
28 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
29 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
30 048-6060-00 048-6060-00 - CZT/ZT/Maverick/Stand-On Toplink/Turnbuckle (See Models Used On For Details)
$42.52
31 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
32 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
33 039-2009-00 039-2009-00 - Stand On Deck Stop
$5.49
34 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
35A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
35 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
36 039-0235-00 039-0235-00 - Stand On Deck Hanger Tab (See Models Used On For Details)
$7.69
37 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
38 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
39 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
40 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
41 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
43 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F
$2.99
44 031-6020-00 031-6020-00 - Deck Hanger-Black - (Replaces 031-5351-00 - 031-5352-00 - 031-6000-00 - 031-6010-00)
$141.97
45 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
46.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
46 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
47 206-6020-00 206-6020-00 - Chute Hanger
$28.39
48 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
49 039-4890-00 039-4890-00 - Discharge Chute Bracket 48 MZ (Lower)
$35.43
50 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
51 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
52 210-6015-00 210-6015-00 - Discharge Chute Rubber (See Models Used On For Detail)
$53.49
53 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
54 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
55 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$5.82
56 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT) (See Models Used On For Details)
$80.24
57 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
58 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt Gr 5
$2.99
59 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
60 039-6945-98 039-6945-98 - Deck Idler Assy (See Models Used On For Details)
$78.08
61 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$156.17
